Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative and positive battery terminals, then wait at least 3 minutes. Refer to Battery Disconnect .
- Remove the headlining. Refer to Removal and Installation .

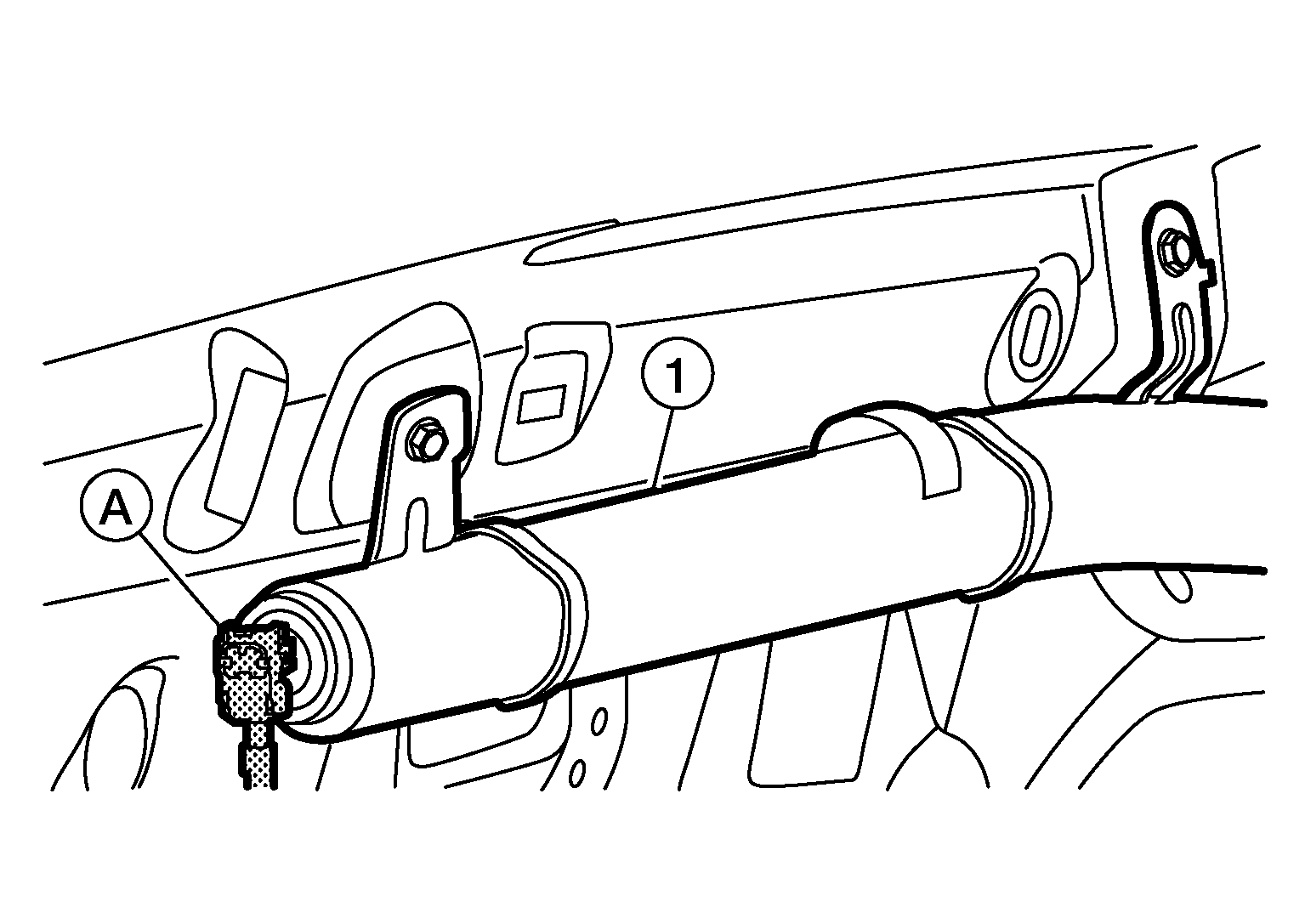

- Disconnect the harness connector (A) from the side curtain air bag module inflator (1).CAUTION:
- For removing/installing side curtain air bag module harness connector, insert a thin screwdriver wrapped in tape into notch, lift the lock and remove harness connector as shown above.
- Install harness connector with lock raised, and push lock into harness connector as shown above.
- After installing harness connector, check that the lock is pushed in securely.
- Remove side curtain air bag module bolts.
- Disconnect side curtain air bag module bracket supporting hooks and remove side curtain air bag module.CAUTION:
- Replace side curtain air bag module if it has been dropped or sustained an impact.
- Do not strike side curtain air bag module.
- Do not insert any foreign objects (screwdriver, etc.) into side curtain air bag module.
- Do not disassemble side curtain air bag module.
- Do not expose side curtain air bag module to temperatures exceeding 90°C (194°F).
- Do not allow oil, grease, detergent or water to come in contact with side curtain air bag module.
