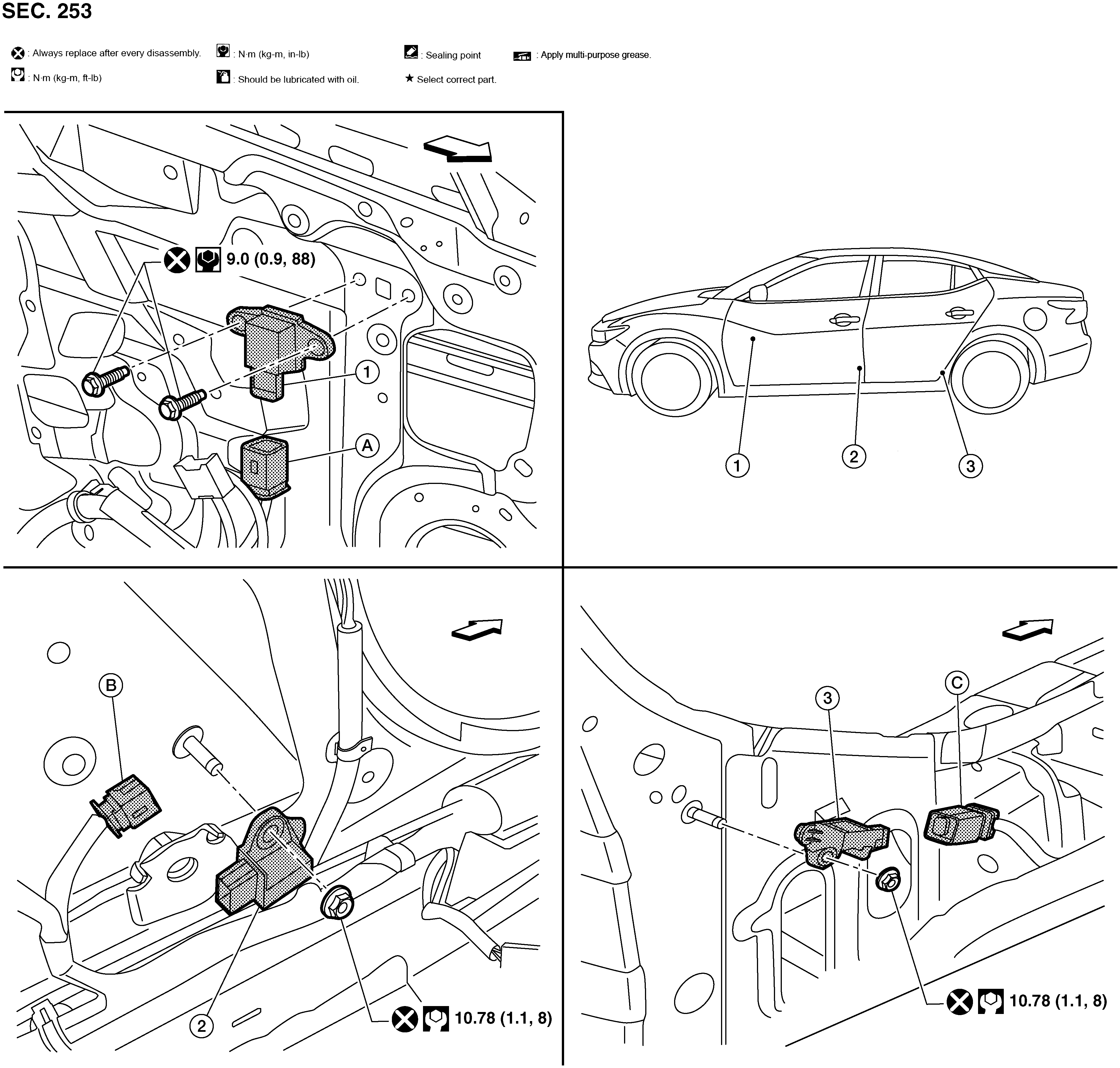

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front door (satellite) sensor (if equipped) |
2. |
Front side air bag (satellite) sensor (if equipped) |
3. |
Rear side air bag (satellite) sensor |
|
A. |
Front door (satellite) sensor harness connector (if equipped) |
B. |
Front side air bag (satellite) sensor harness connector (if equipped) |
C. |
Rear side air bag (satellite) sensor harness connector |
|
|
Front |
