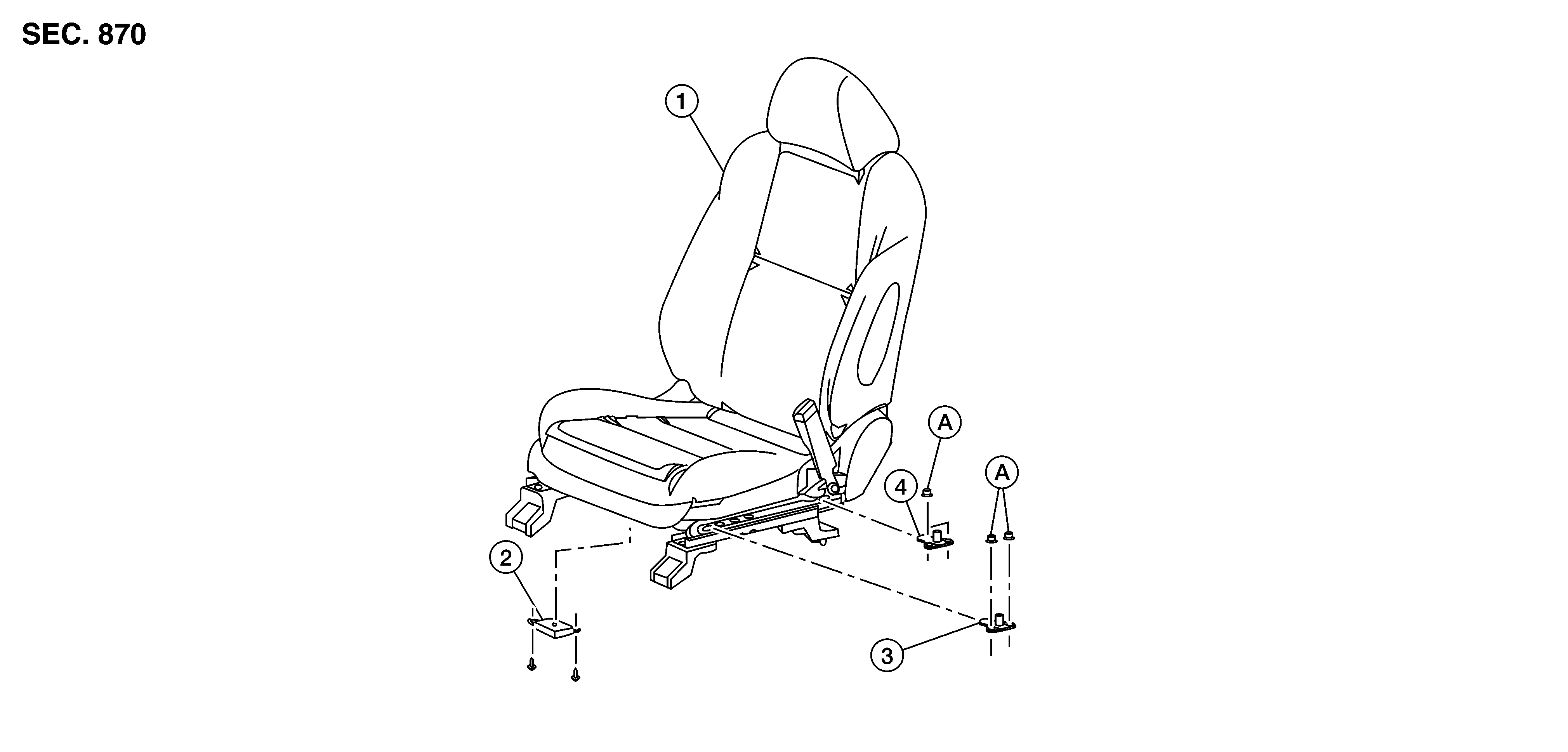

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front passenger seat |
2. |
Occupant classification system control unit |
3. |
Occupant classification system sensor (front) |
|
4. |
Occupant classification system sensor (rear) |
A. |
Refer to Removal and Installation |
