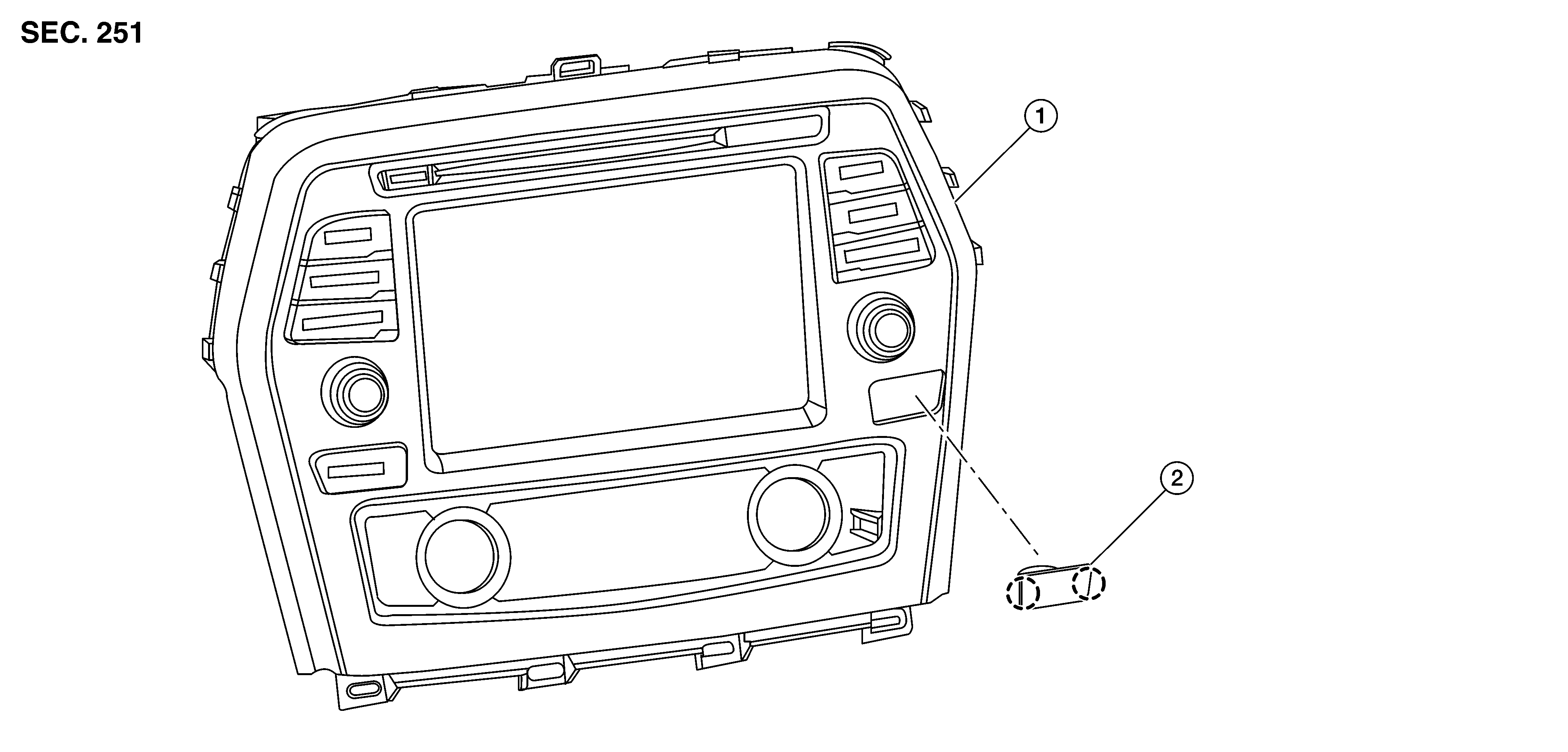

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
GNSALHIA0669Z-669Courtesy of NISSAN NORTH AMERICA, INC.

1.

Audio unit

2.

Passenger air bag off indicator

SYMBOL

Pawl
