Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative and positive battery terminals, then wait at least 3 minutes. Refer to Battery Disconnect .
  2. Remove the instrument panel assembly. Refer to Removal and Installation .
  3. Remove the front passenger air bag module screws.
  4. Disconnect harness connectors from the front passenger air bag module.

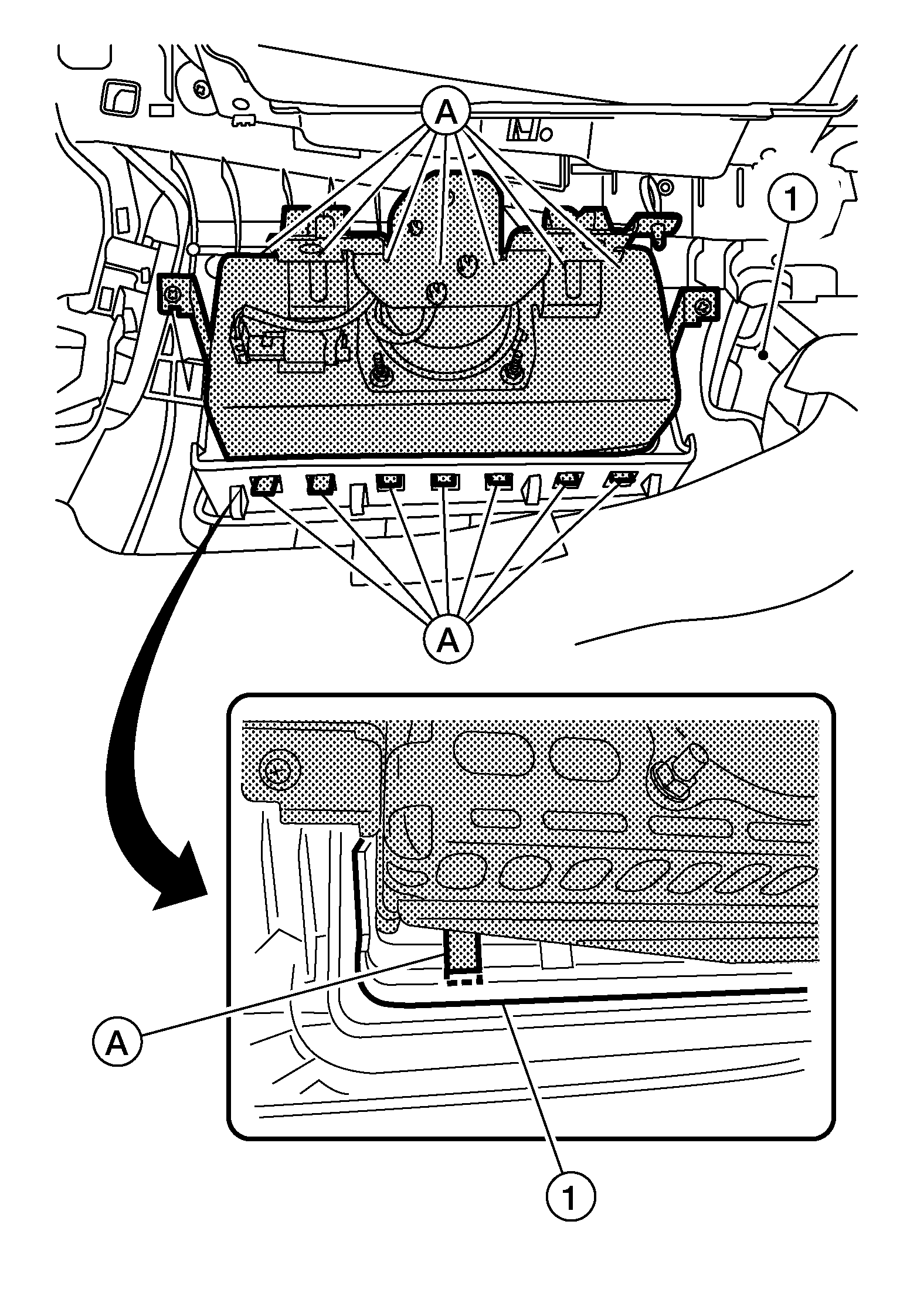

  5. Release the upper and lower front passenger air bag module tabs (A) from instrument panel and pad assembly (1).
    GNSAWHIA0816Z-816Courtesy of NISSAN NORTH AMERICA, INC.
  6. Rotate and lift the front passenger air bag module away from the instrument panel, then remove.
    CAUTION:
    • Always place front passenger air bag module with pad side facing upward as shown below.
      GNSAWHIA0403Z-403Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Upward

    • Replace front passenger air bag module if it has been dropped or sustained an impact.
    • Do not strike front passenger air bag module.
    • Do not insert any foreign objects (screwdriver, etc.) into front passenger air bag module.
    • Do not disassemble front passenger air bag module.
    • Do not expose front passenger air bag module to temperatures exceeding 90°C (194°F).
    • Do not allow oil, grease, detergent, or water to come in contact with front passenger air bag module.
      GNSJMHIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
