Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

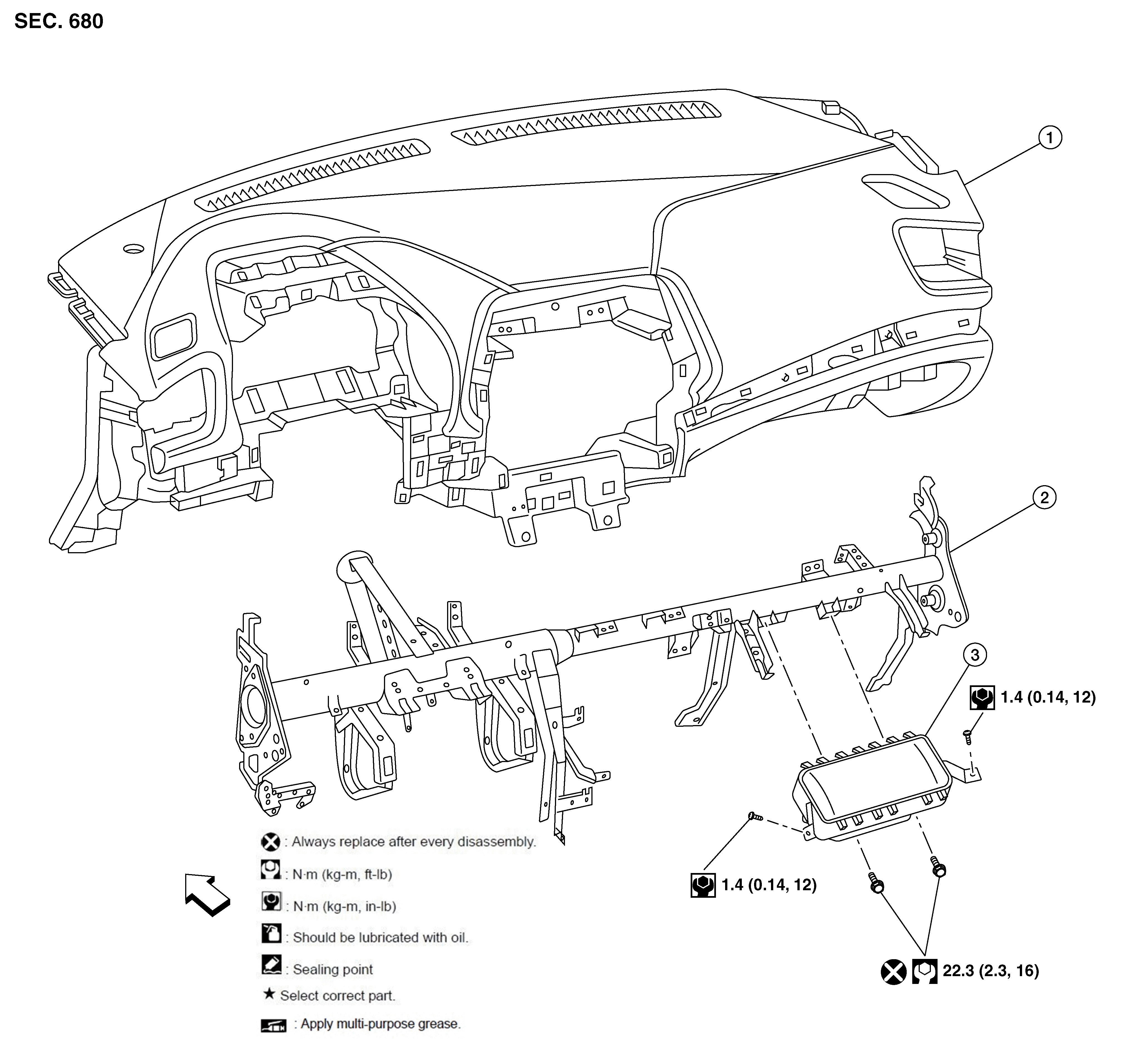

Fig 1: Front Passenger Air Bag Module With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Instrument panel assembly	2.	Steering member assembly	3.	Front passenger air bag module
	Front
