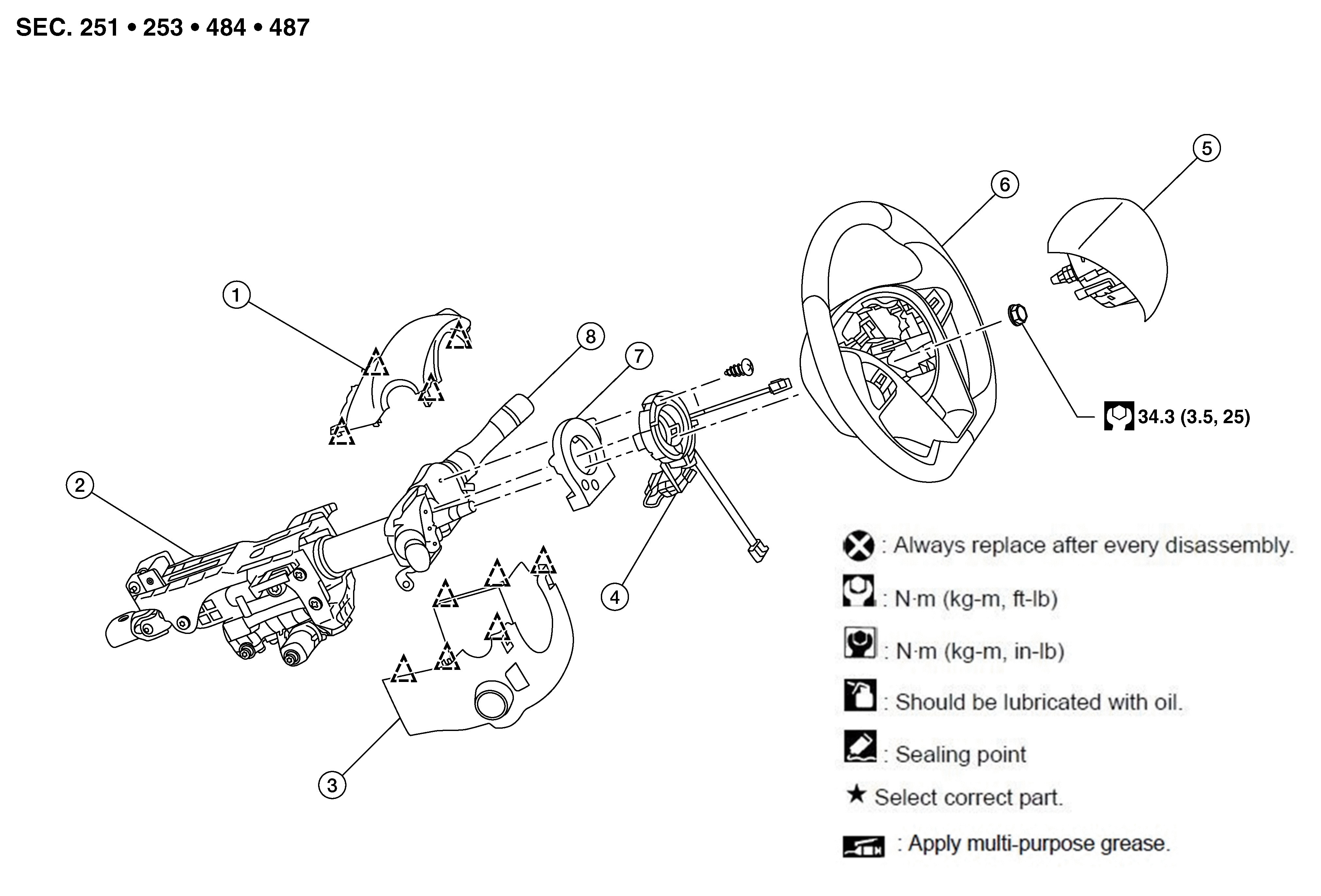

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Steering column upper cover
|
2.
|
Steering column
|
3.
|
Steering column lower cover
|
|
4.
|
Spiral cable
|
5.
|
Driver air bag module
|
6.
|
Steering wheel
|
|
7.
|
Steering angle sensor
|
8.
|
Combination switch
|
|
Clip
|
