Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

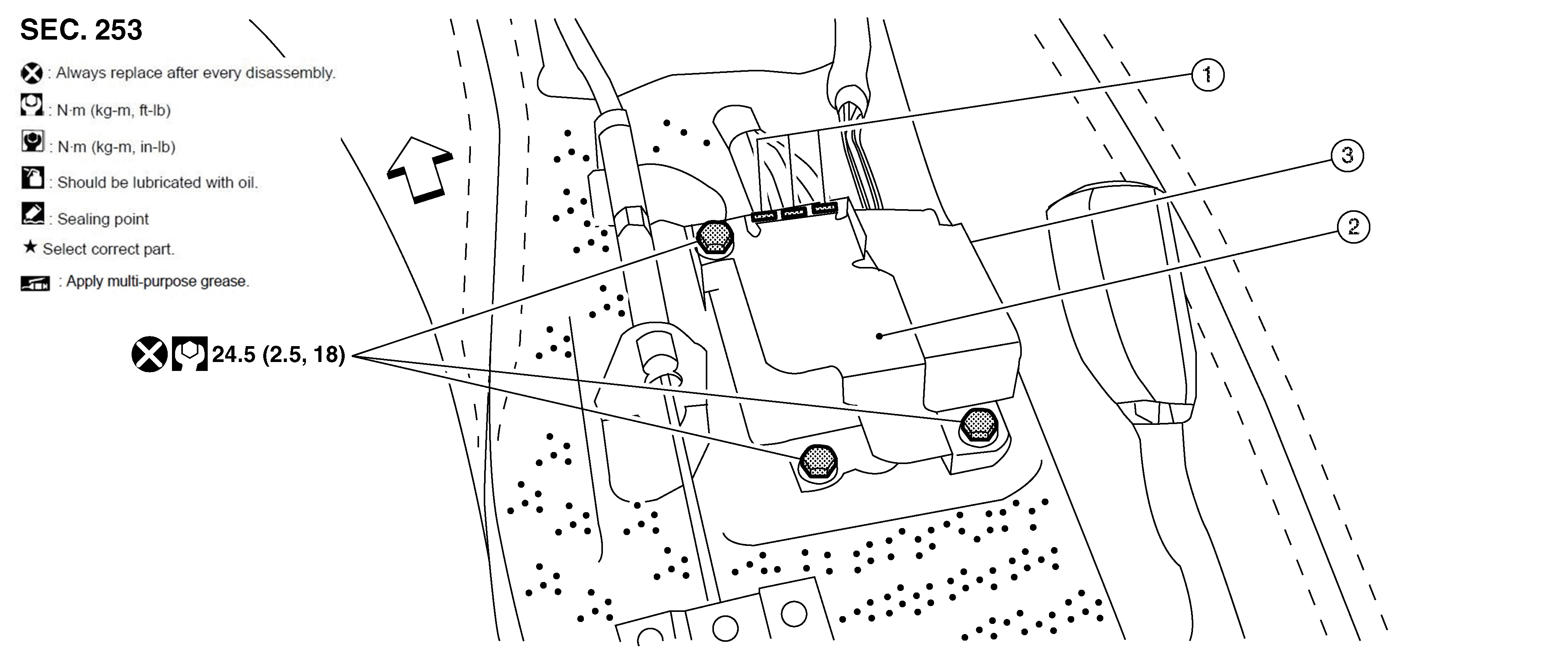

Fig 1: Diagnosis Sensor Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Diagnosis sensor unit harness connectors	2.	Diagnosis sensor unit shield	3.	Diagnosis sensor unit
	Front
