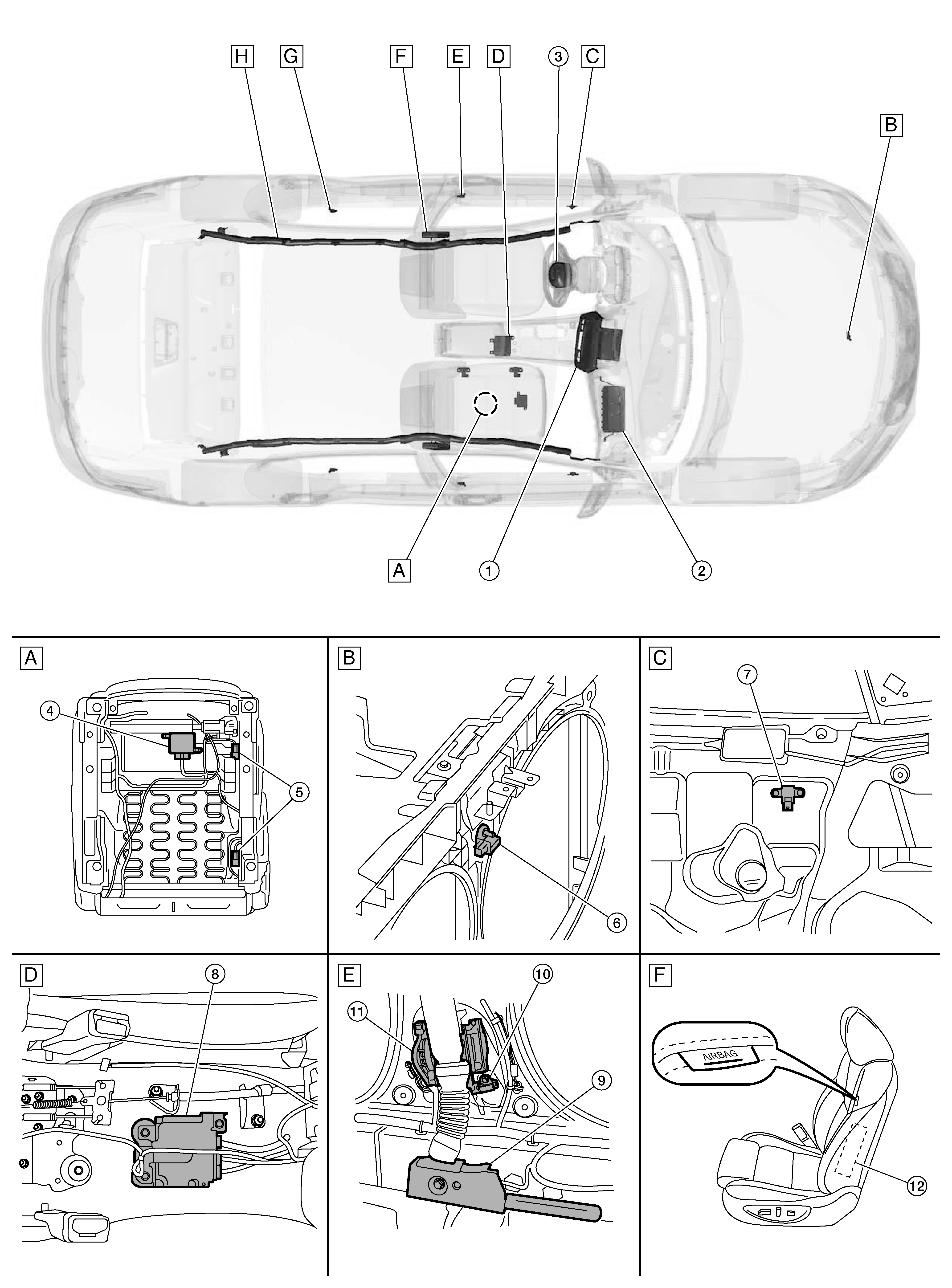

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
Bottom of passenger seat (view with passenger seat removed) |
B. |
Front of engine compartment |
C. |
Driver door area (view with front door finisher LH removed) |
|
D. |
Between driver and passenger seat (view with center console removed) |
E. |
Left of driver seat (view with center pillar lower finisher removed) |
F. |
Driver seat area |
|

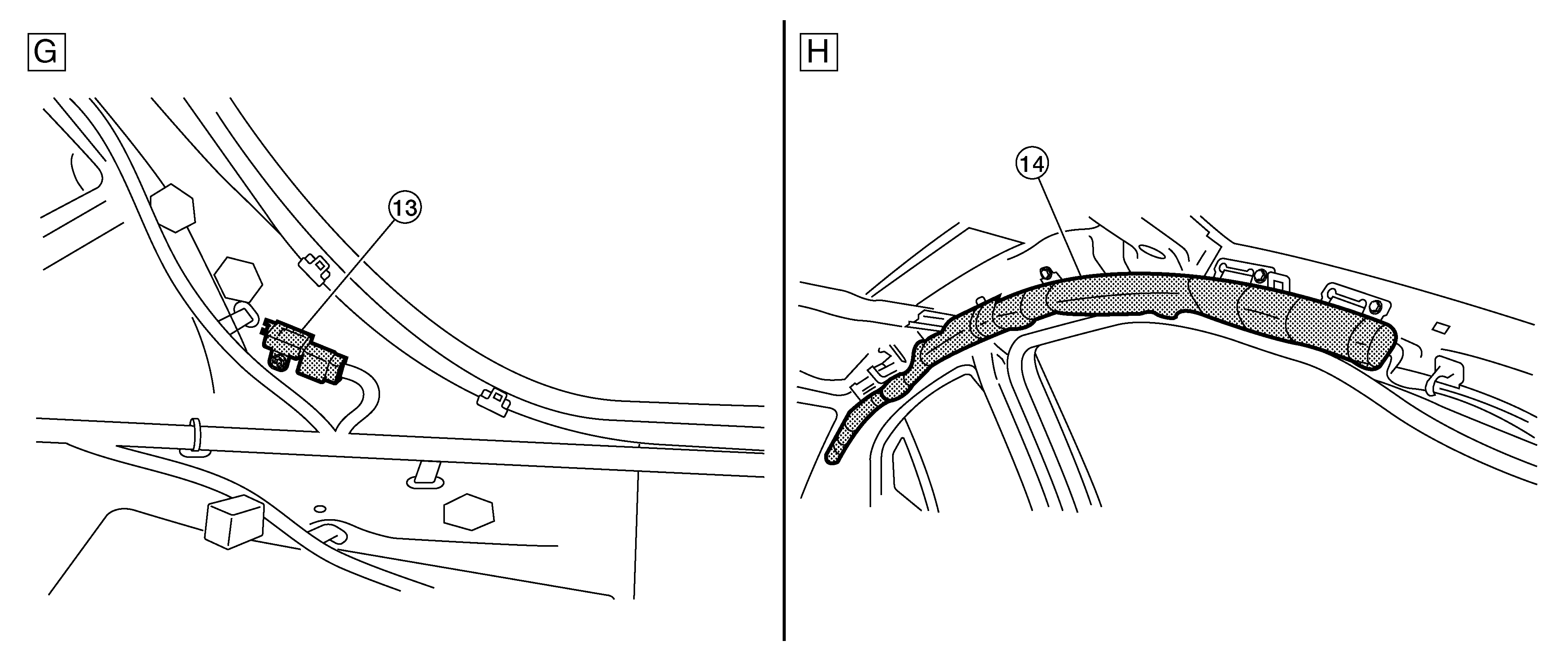

G. |
Left of rear passenger seat (view with rear kicking plate inner LH removed) |
H. |
Left side of roof line (view with headliner and front pillar finisher removed) |
