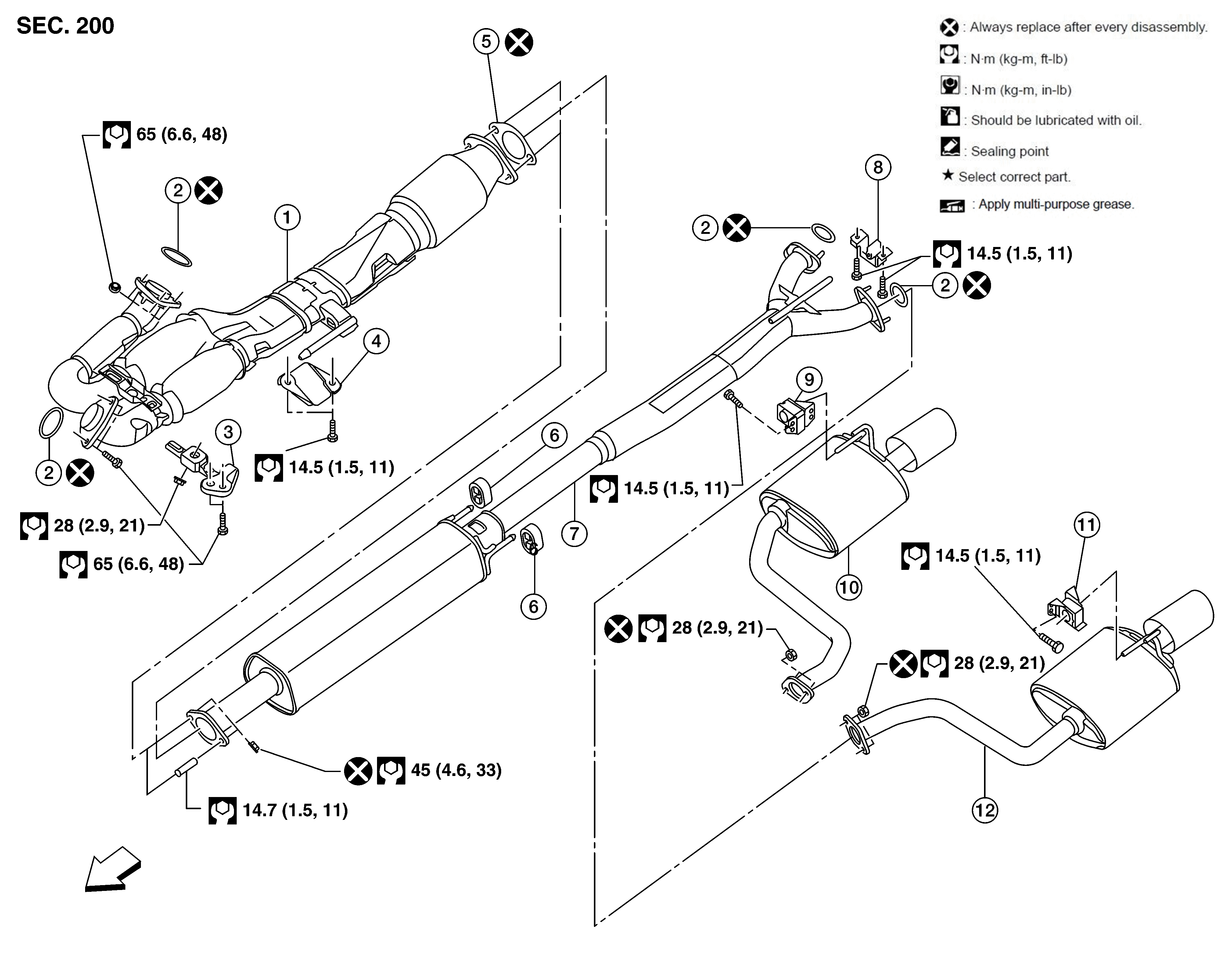

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front exhaust tube |
2. |
Ring gasket |
3. |
Front exhaust tube stay |
|
4. |
Front exhaust tube bracket |
5. |
Gasket |
6. |
Center exhaust tube rubber hanger |
|
7. |
Center exhaust tube |
8. |
Center exhaust tube hanger |
9. |
Rear muffler bracket (RH) |
|
10. |
Rear muffler (RH) |
11. |
Rear muffler bracket (LH) |
12. |
Rear muffler (LH) |
|
|
Front |
