Drain and Refill: Refilling

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

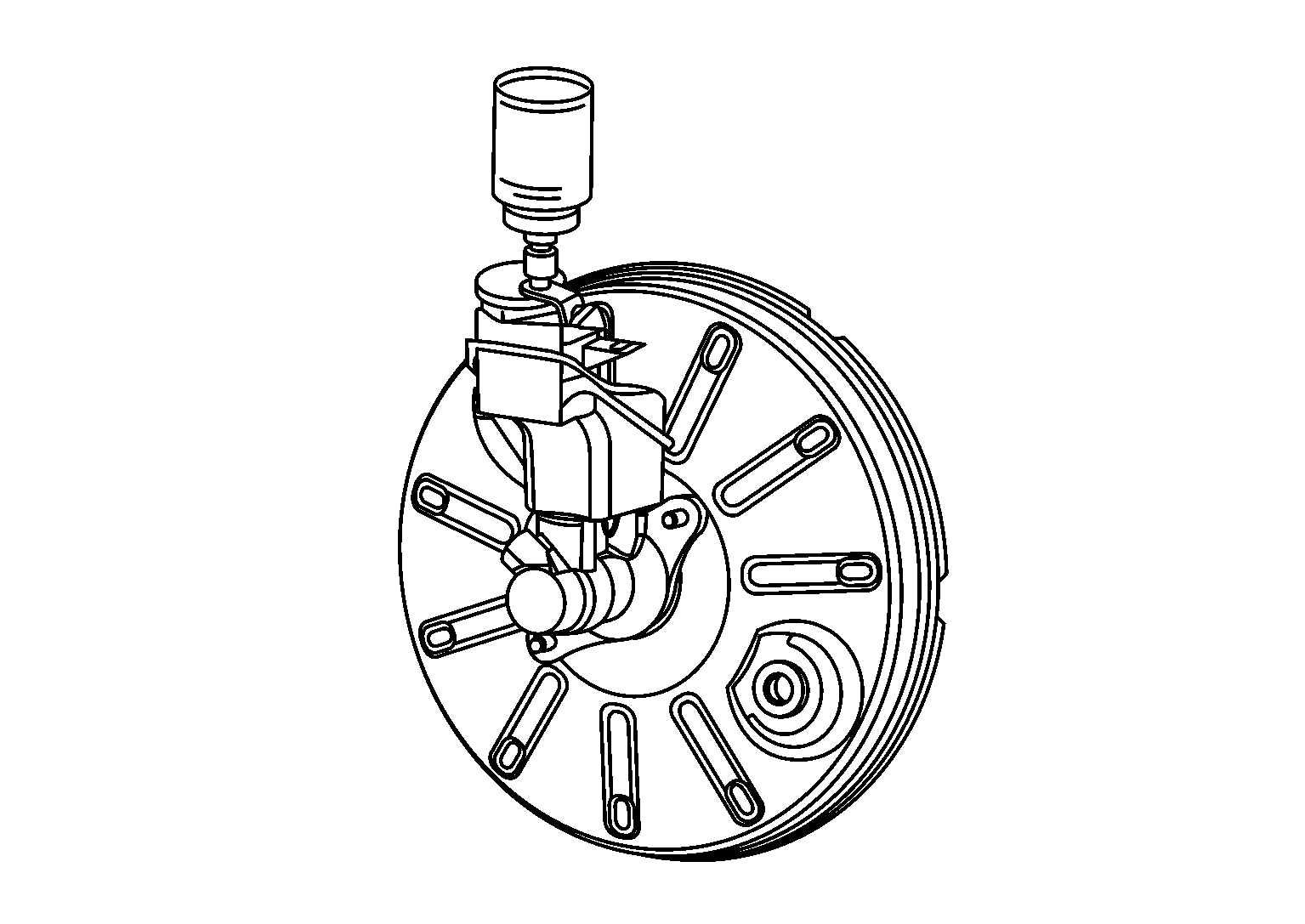

  1. Make sure no foreign material is in the reservoir tank and refill with new brake fluid.
    GNSDB121137Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse drained brake fluid.
  2. Refill the brake system as follows:
    • Depress the brake pedal.
    • Loosen bleeder valve.
    • Slowly depress brake pedal to 2/3 of the brake pedal full stroke.
    • Tighten bleeder valve.
    • Release brake pedal.

    Repeat this operation in intervals of two or three seconds until all old brake fluid is discharged. Add new brake fluid to reservoir tank frequently.

    CAUTION: Do not allow reservoir tank to empty as this may cause damage to master cylinder internal components.
  3. Bleed the air out of the brake hydraulic system. Refer to Bleeding Brake System .
