Pinion Protrusion Length
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

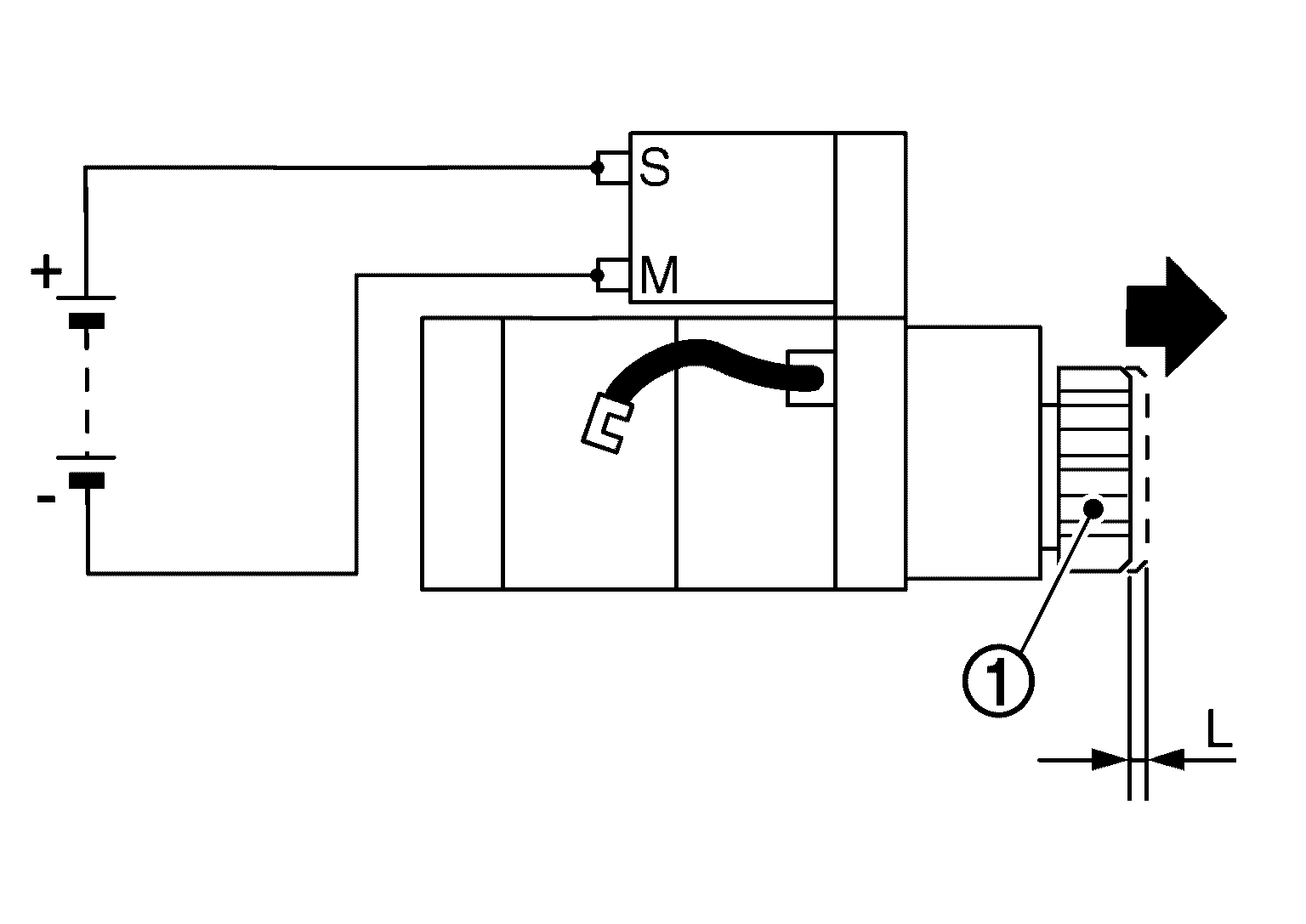

- Compare movement "L" in height of pinion gear (1) when it is pushed out with magnetic switch energized and when it is pulled out by hand until it touches stopper.
Movement "L"
: Refer to Starter .
- Replace starter motor if the measurement value is not within specifications.
