Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

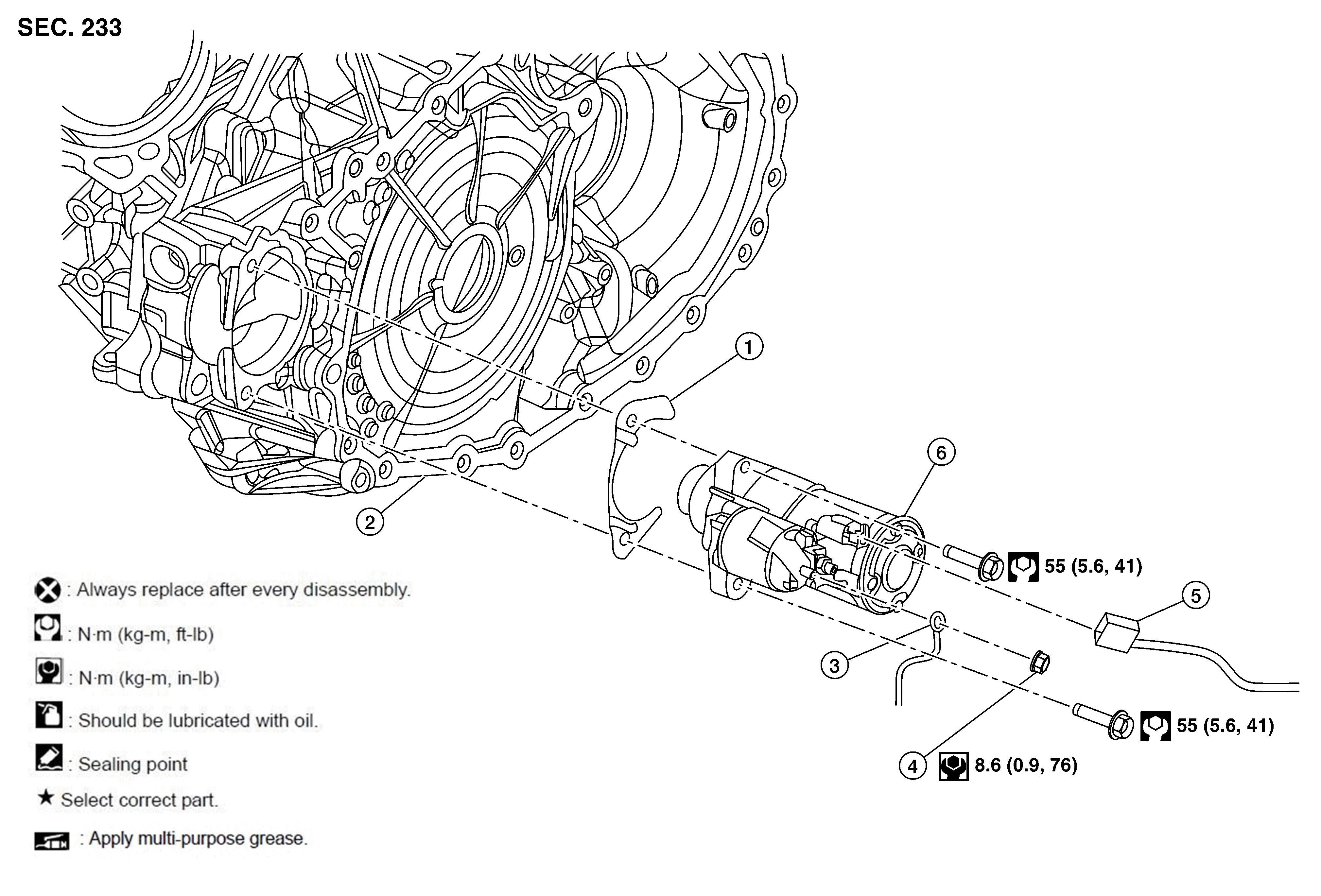

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shim	2.	Converter housing	3.	"B" terminal harness
4.	"B" terminal nut	5.	Starter harness connector	6.	Starter motor
