Disassembly and Assembly of Cooling Fan: Notes

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

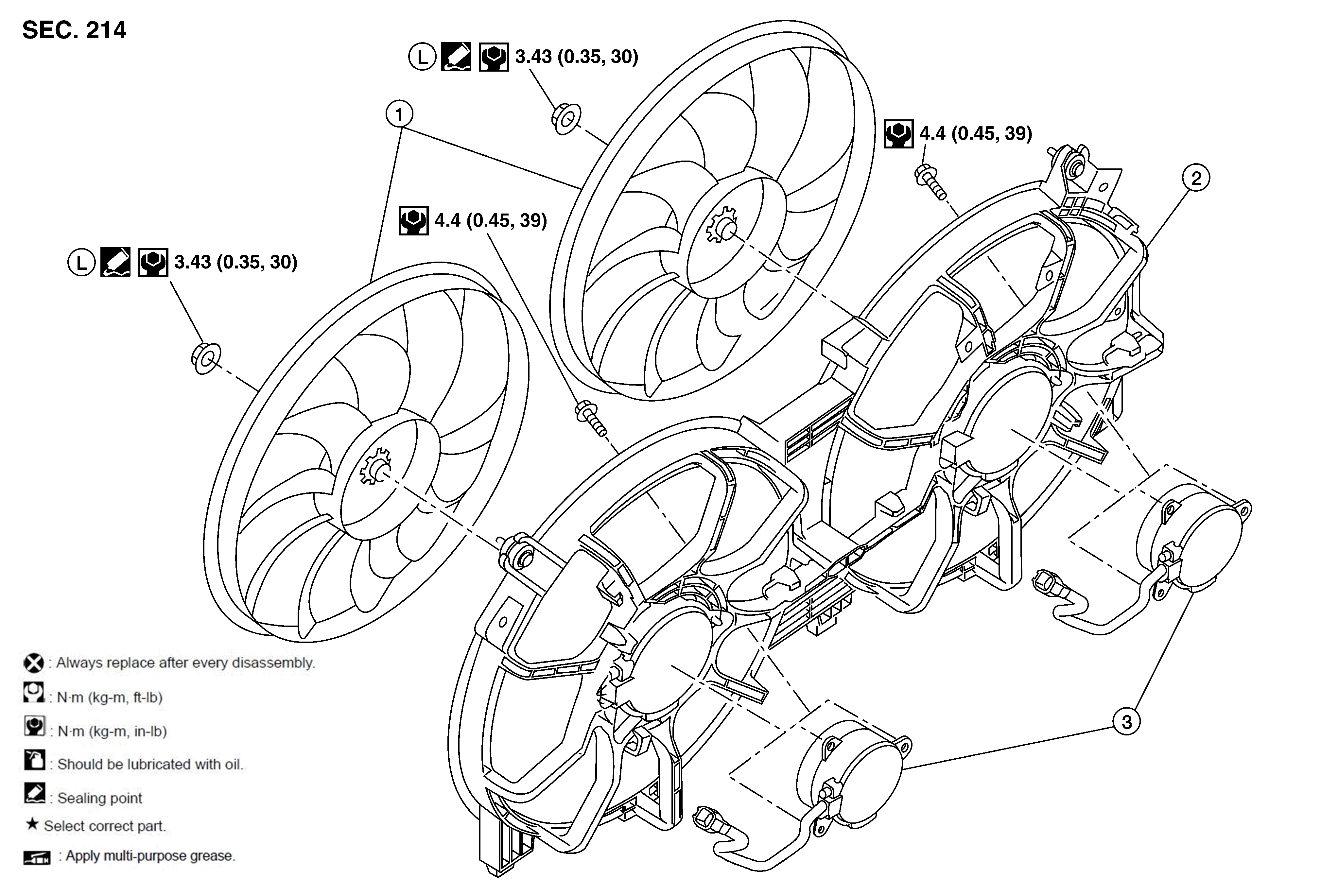

Fig 1: Fan Blade, Shroud And Motor With Torque Specifications
G08437350Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fan blade

2.

Fan shroud

3.

Fan motor
