Cooling Circuit
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

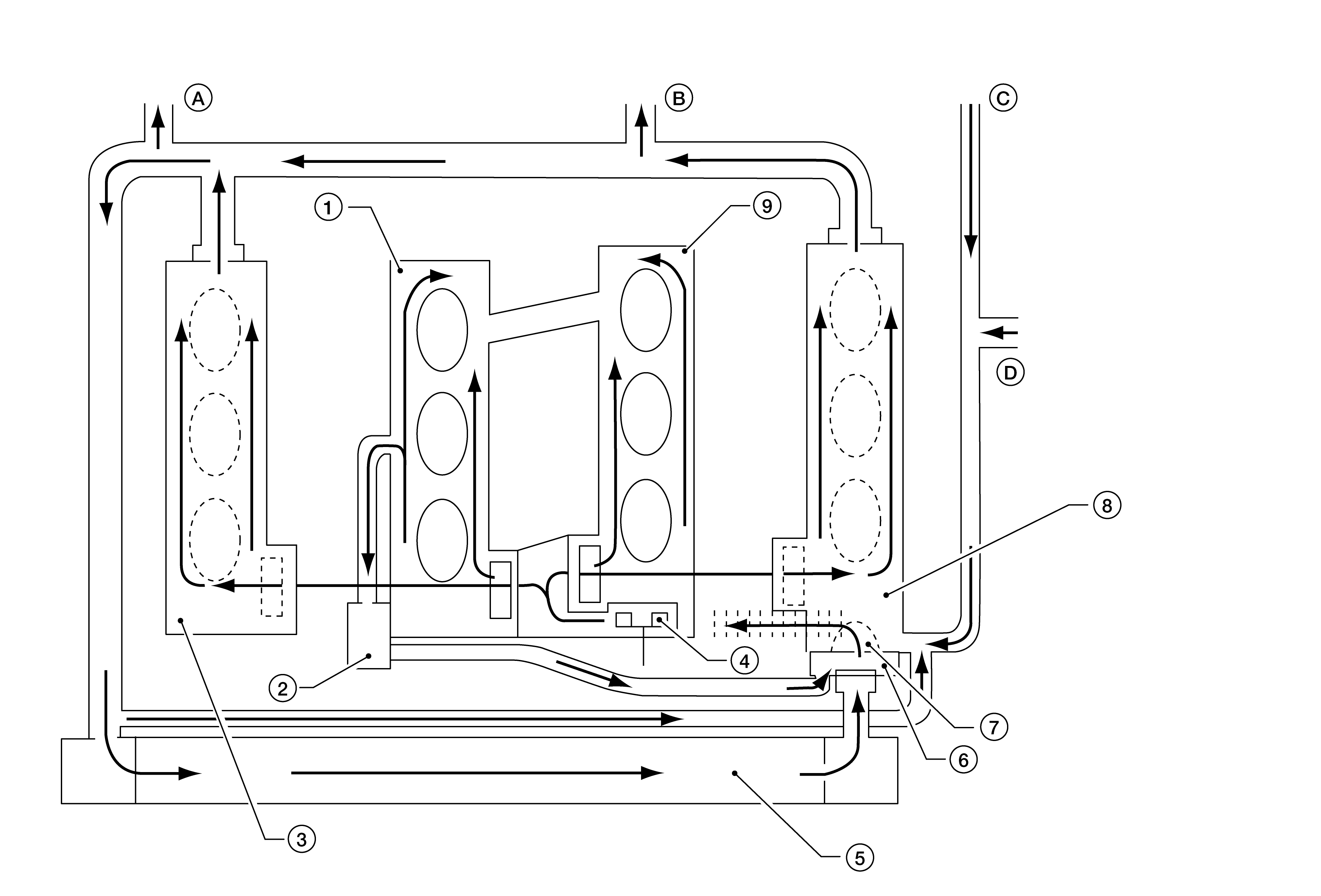

 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cylinder block (RH)
|
2.
|
Oil cooler
|
3.
|
Cylinder head (RH)
|
|
4.
|
Water pump
|
5.
|
Radiator
|
6.
|
Water inlet
|
|
7.
|
Thermostat
|
8.
|
Cylinder head (LH)
|
9.
|
Cylinder block (LH)
|
|
A.
|
To heater
|
B.
|
To electric throttle control actuator
|
C.
|
From heater
|
|
D.
|
From electric throttle control actuator
|
