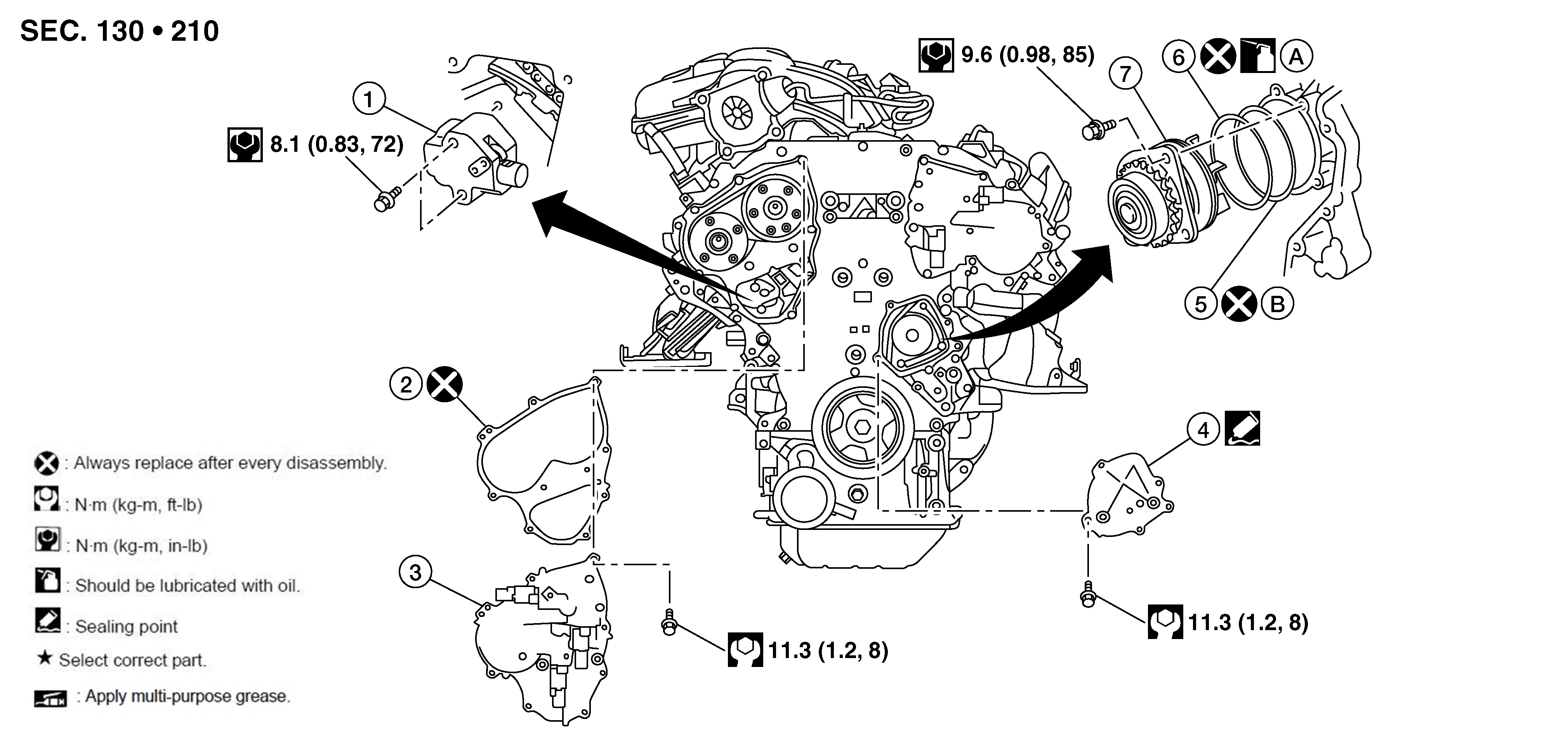

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Timing chain tensioner (primary)
|
2.
|
Valve timing control cover gasket (bank 1)
|
3.
|
Valve timing control cover (bank 1)
|
|
4.
|
Water pump cover
|
5.
|
O-ring
|
6.
|
O-ring (Identify with white mark)
|
|
7.
|
Water pump
|
A.
|
Apply engine oil
|
B.
|
Apply engine coolant.
|
