Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

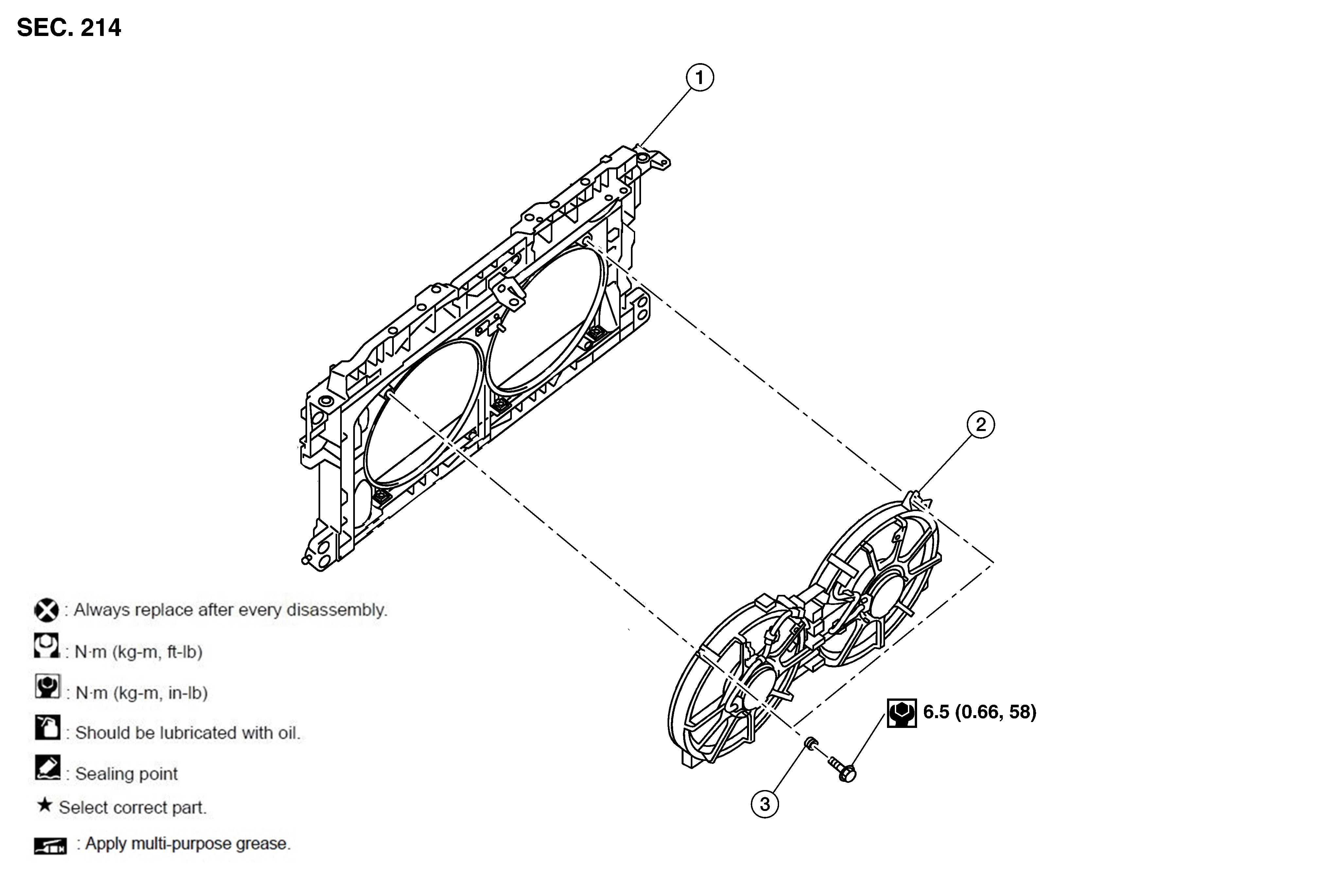

GNSAWBIA1275GB-275Courtesy of NISSAN NORTH AMERICA, INC.

1.

Radiator core support

2.

Fan shroud and motor assembly

3.

Grommet
