Commercial Service Tool

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Tool name

Description

Power tool

G00516009Courtesy of NISSAN NORTH AMERICA, INC.

Loosening nuts, screws and bolts

-

(J-33984-A)

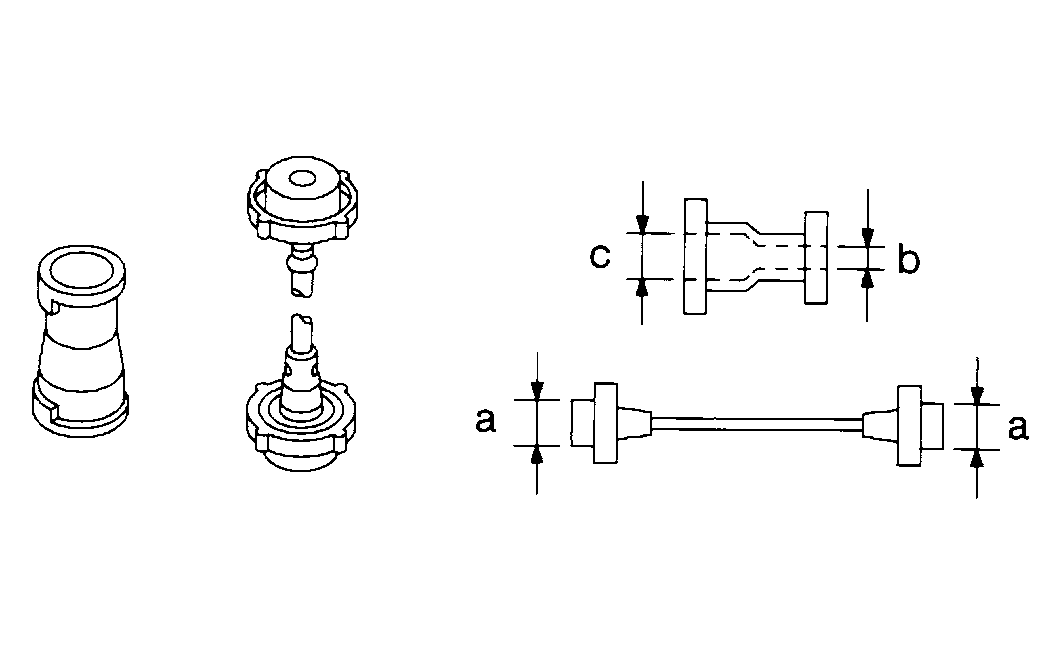

Radiator pressure adapter

GNSSNT564-564Courtesy of NISSAN NORTH AMERICA, INC.

Adapting cooling system pressure tester to radiator cap and reservoir tank cap

a: 28 (1.10) diameter

b: 31.4 (1.236) diameter

c: 41.3 (1.626) diameter

Unit: mm (in)

Tube presser

GNSSNT052-052Courtesy of NISSAN NORTH AMERICA, INC.

Pressing the tube of liquid gasket
