Engine Lubrication System
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|

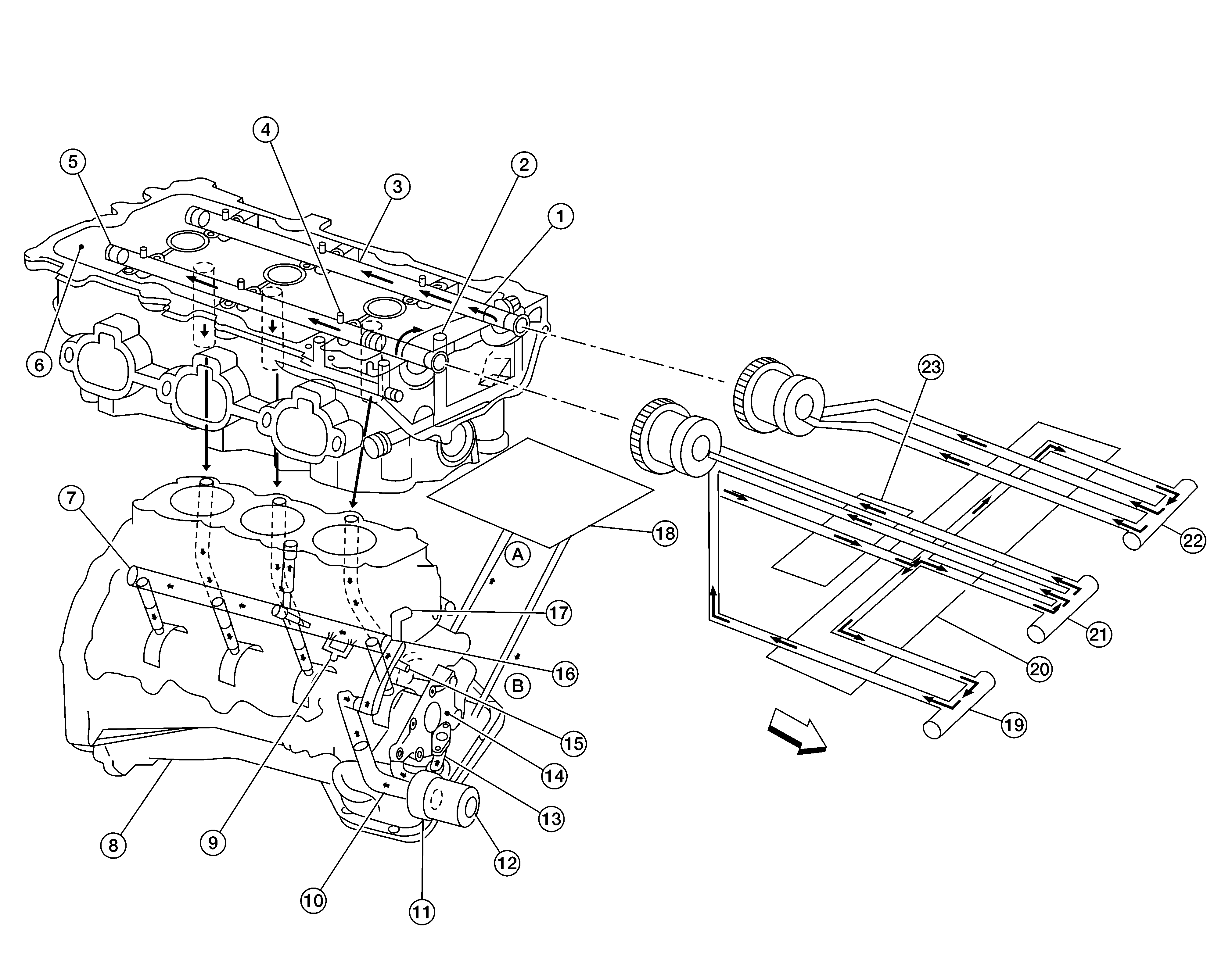

1. |
Camshaft (EXH) journal (No. 1) |
2. |
Timing chain tensioner (secondary) |
3. |
Camshaft (EXH) |
|
4. |
Camshaft (INT) journal (No. 2) |
5. |
Camshaft (INT) |
6. |
Cylinder head (bank 2) |
|
7. |
Main oil gallery |
8. |
Upper oil pan |
9. |
Piston oil jet |
|
10. |
Oil pan oil gallery |
11. |
Oil cooler |
12. |
Oil filter |
|
13. |
Oil strainer |
14. |
Oil pump |
15. |
Timing chain oil jet |
|
16. |
Timing chain case oil gallery |
17. |
Timing chain tensioner (primary) |
18. |
Timing chain case |
|
19. |
Exhaust valve timing control solenoid valve (bank 2) |
20. |
Valve timing control cover (bank 2) |
21. |
Intake valve timing intermediate lock control solenoid valve (bank 2) |
|
22. |
Intake valve timing control solenoid valve (bank 2) |
23. |
Front cover |
A. |
To timing chain case |
|
B. |
From timing chain case |
|
Engine front |
