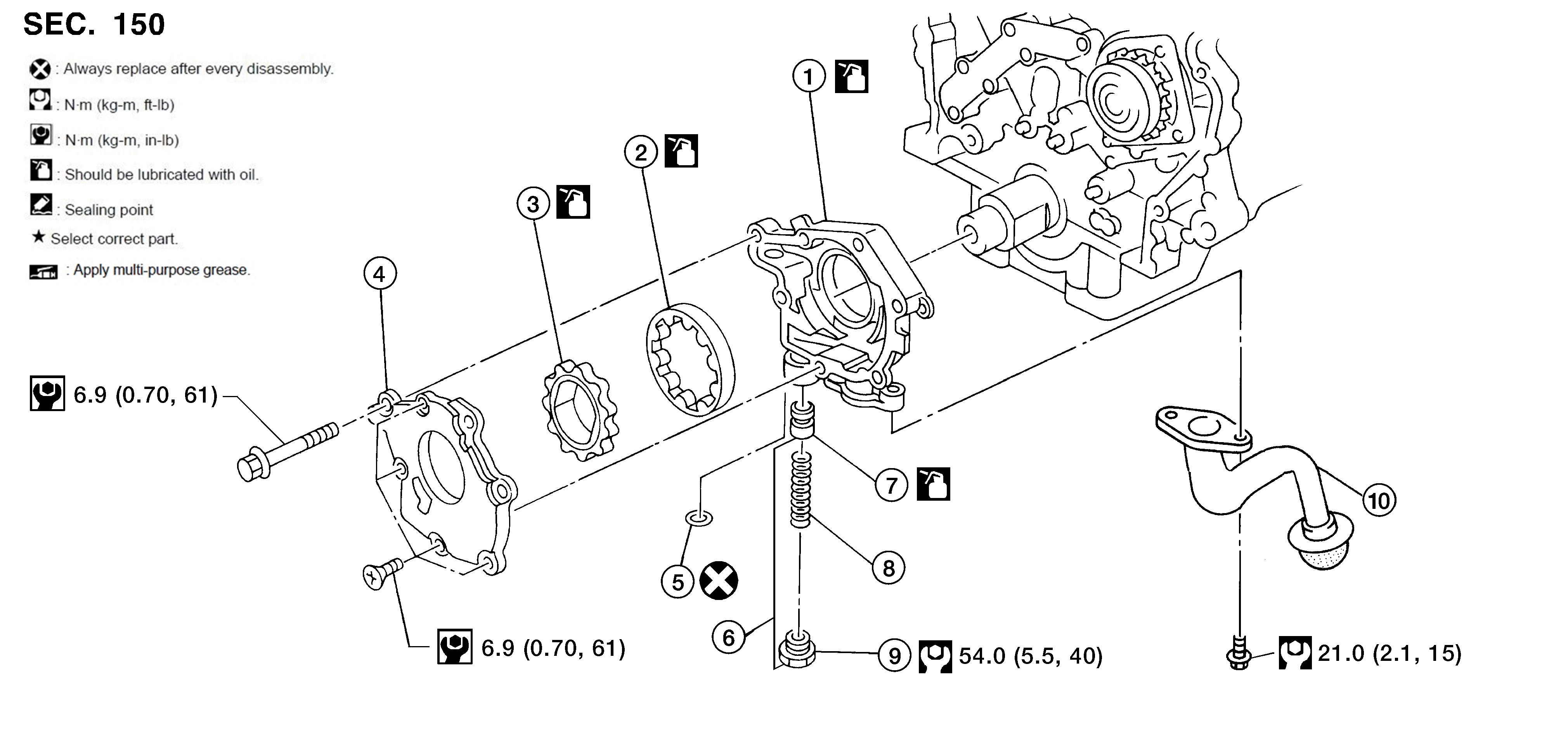

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Oil pump housing
|
2.
|
Outer rotor
|
3.
|
Inner rotor
|
|
4.
|
Oil pump cover
|
5.
|
O-ring
|
6.
|
Regulator valve set
|
|
7.
|
Regulator valve
|
8.
|
Spring
|
9.
|
Regulator plug
|
|
10.
|
Oil strainer
|
