Section 84 (Engine Control System (DTC/Circuit Diagnosis) (1 Of 5))
>>
DTC/Circuit Diagnosis
>>
Trouble Diagnosis - Specification Value
>>
Diagnosis Procedure
>>

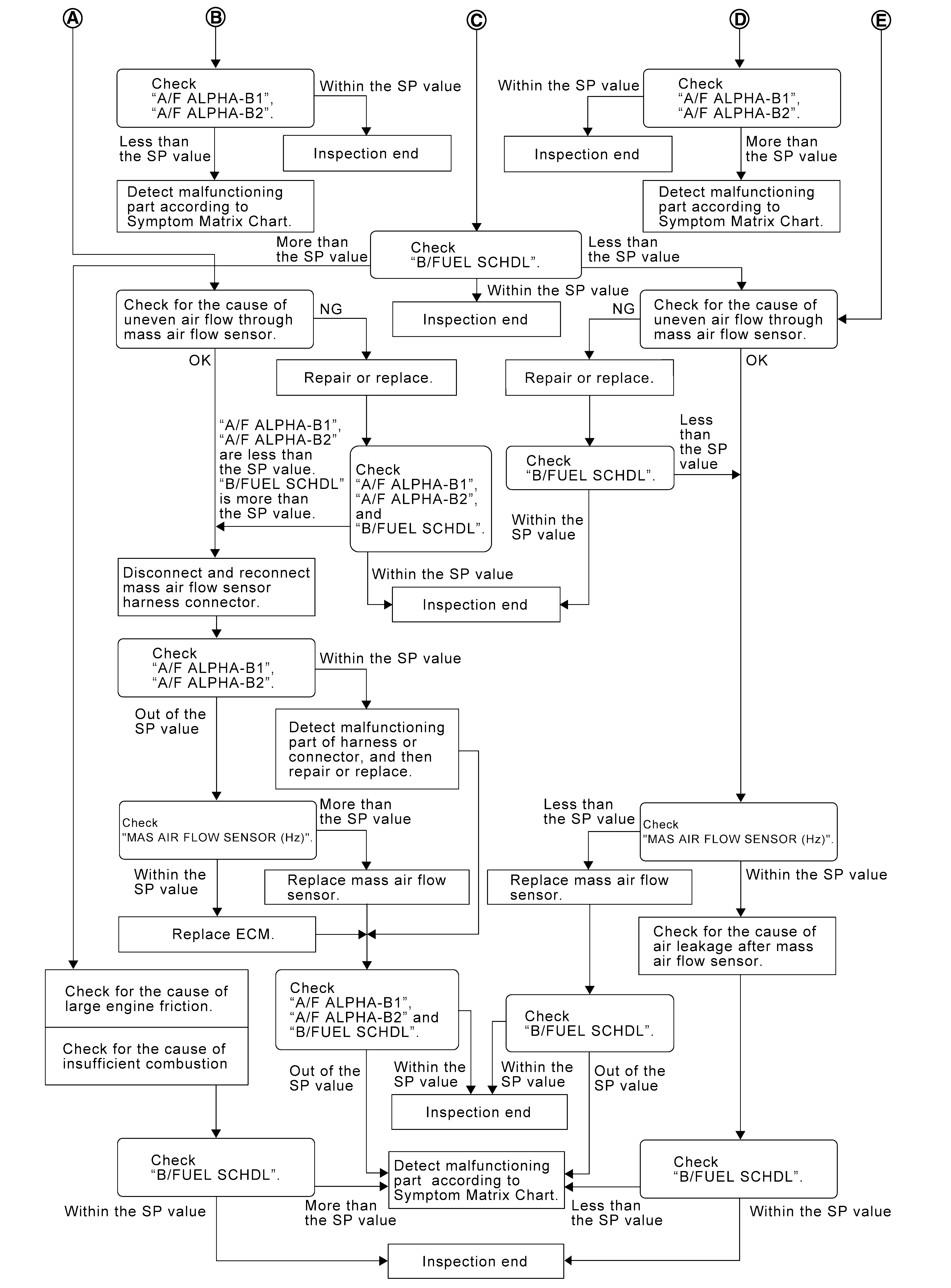

Overall Sequence
Overall Sequence
WARNING:
This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
