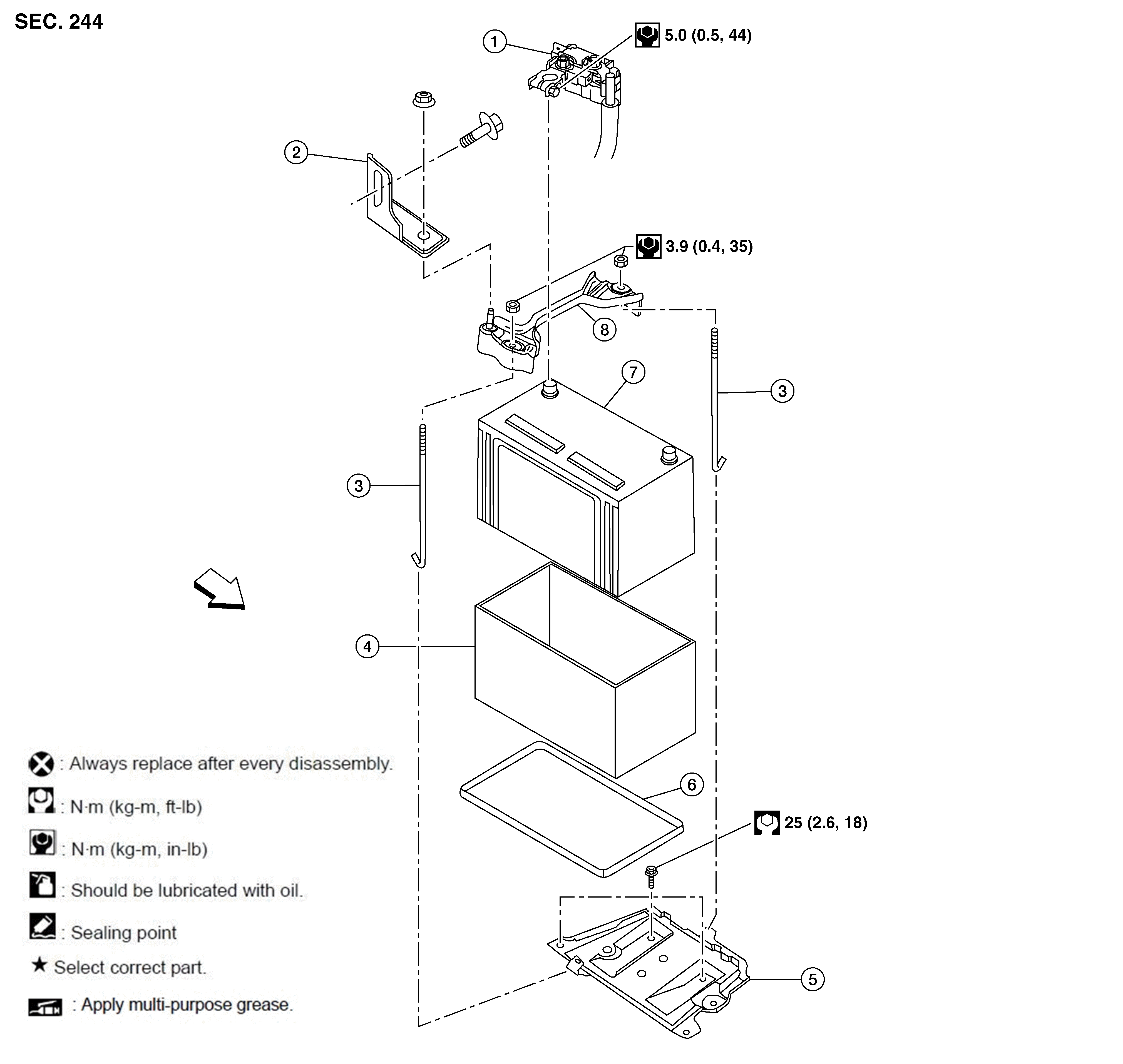

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Fusible link
|
2.
|
Upper ECM bracket
|
3.
|
Battery rods
|
|
4.
|
Battery cover
|
5.
|
Battery tray
|
6.
|
Battery tray liner
|
|
7.
|
Battery
|
8.
|
Battery frame
|
|
|
Front
|
