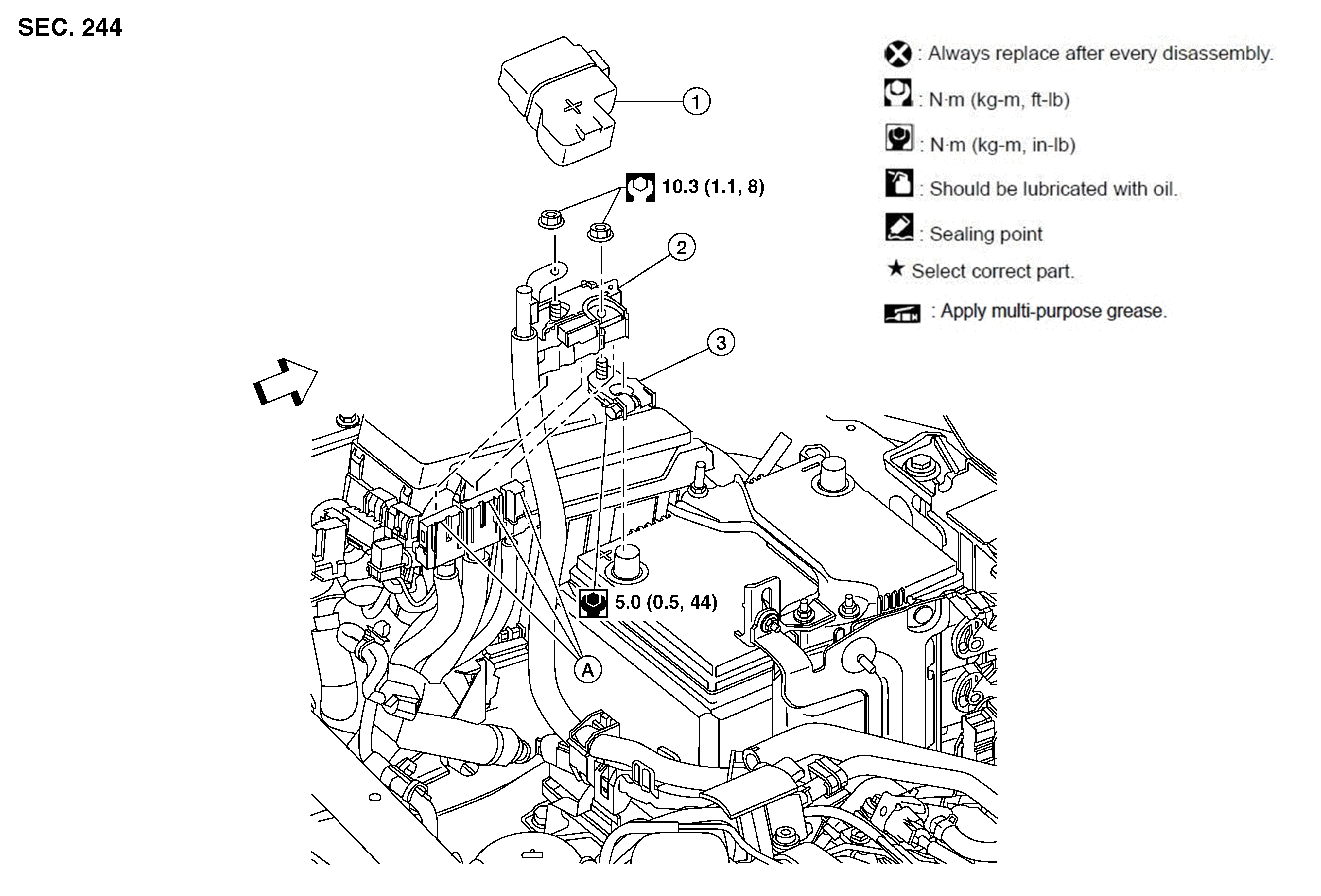

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fusible link cover	2.	Fusible link	3.	Positive terminal
A.	Harness connectors
	Front
