Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

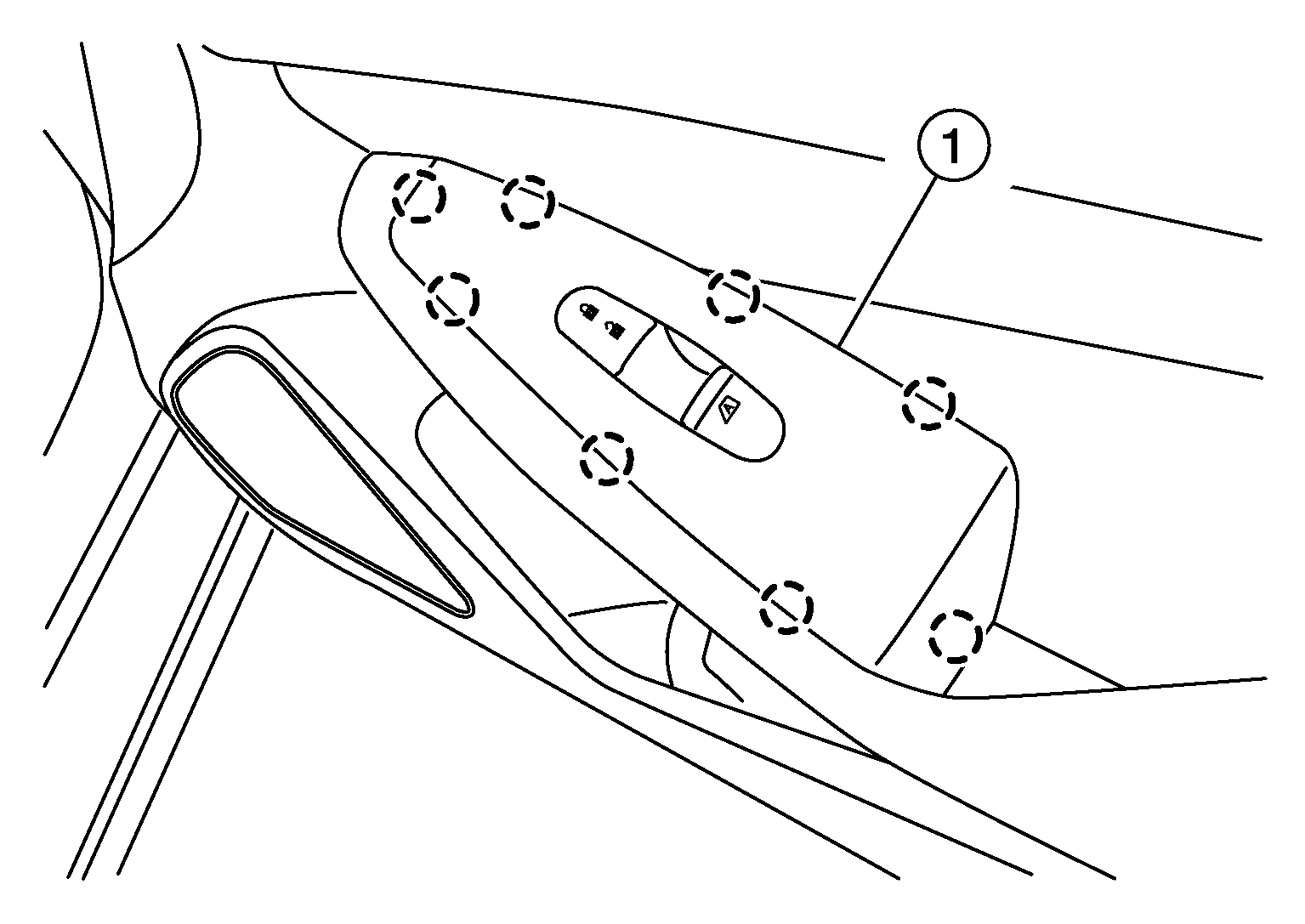

Release pawls using a suitable tool and remove power window and door lock/unlock switch finisher (RH) (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

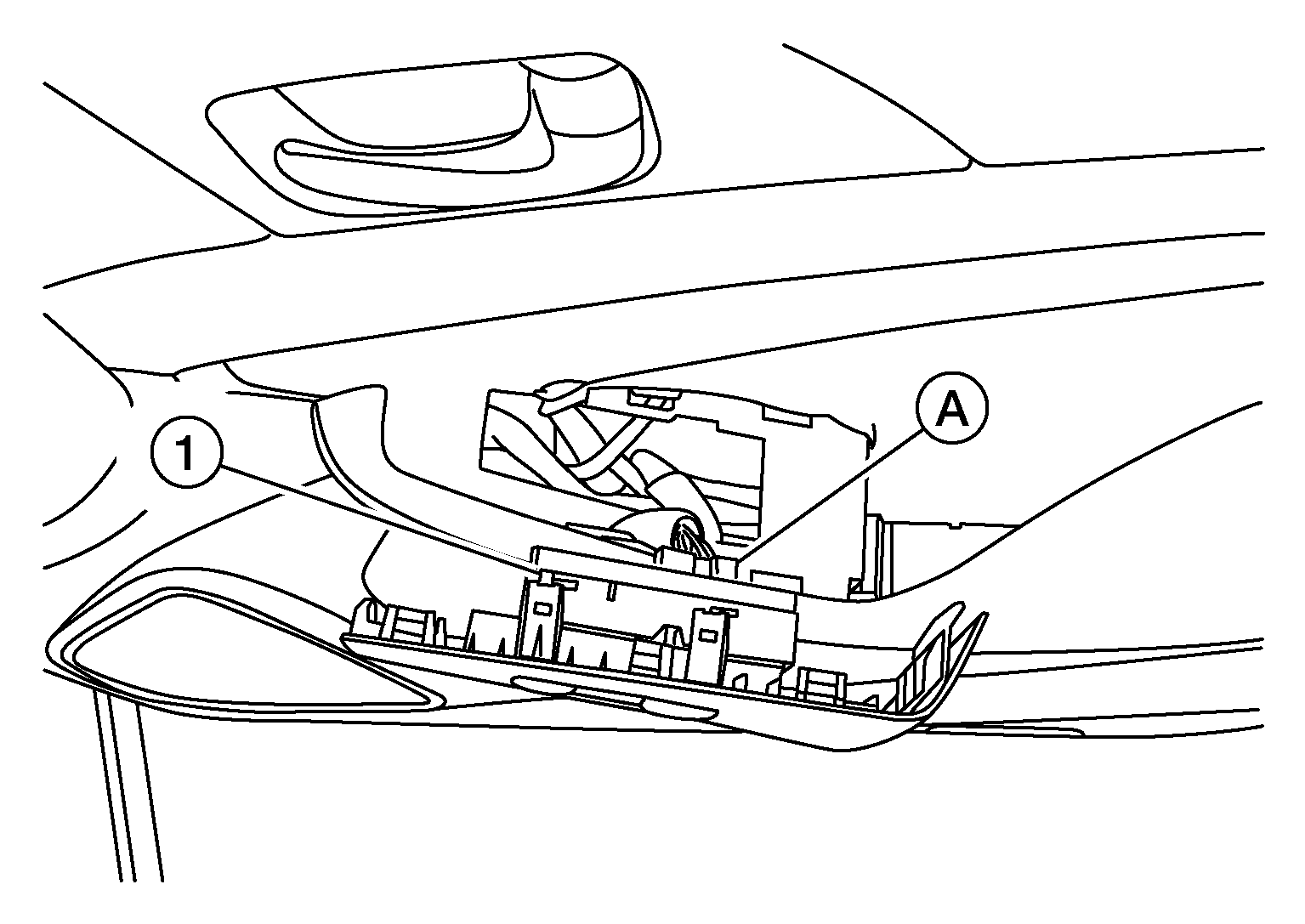

Disconnect the harness connector (A) from the power window and door lock/unlock switch RH (1) and remove.

Courtesy of NISSAN NORTH AMERICA, INC.

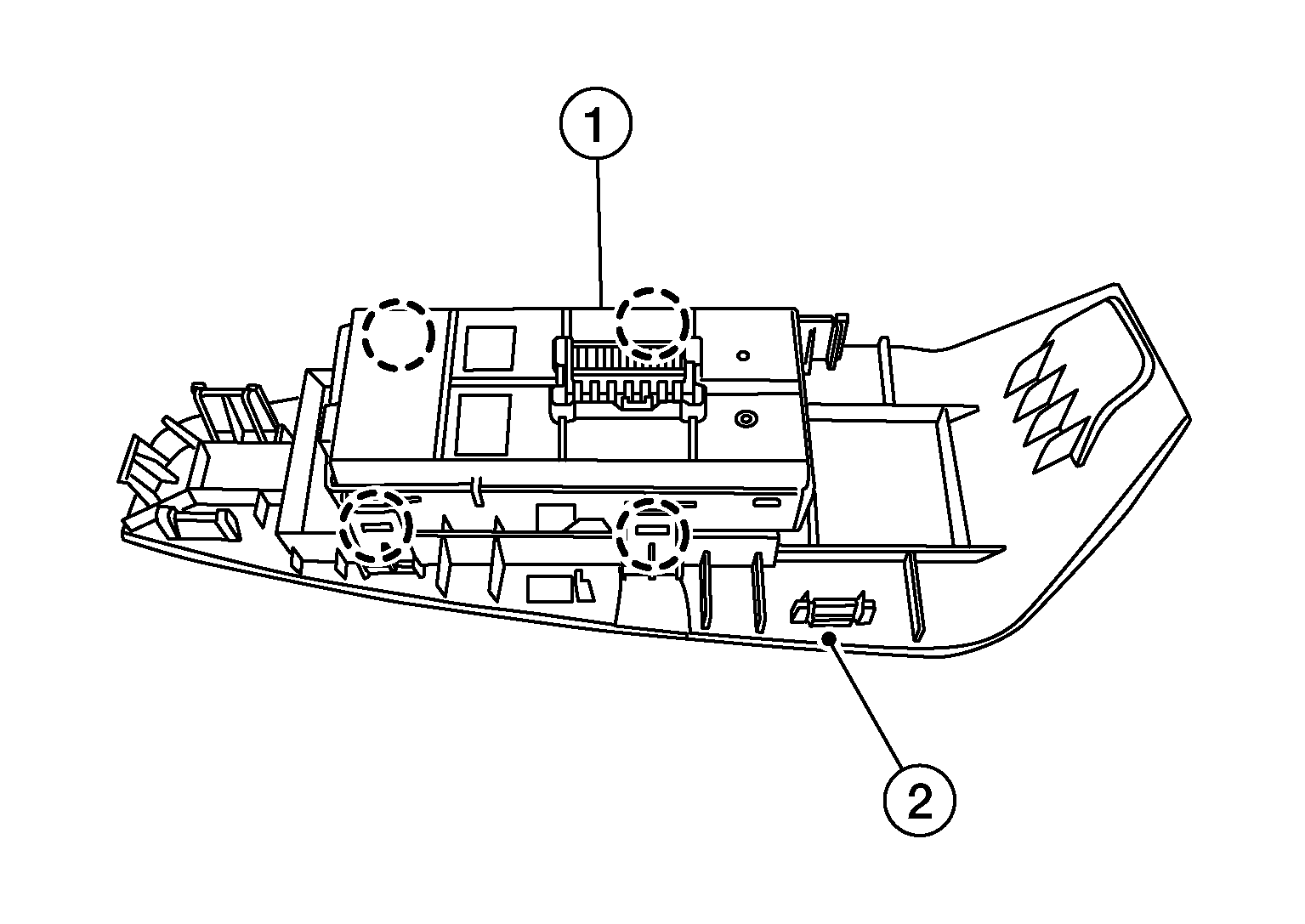

Release pawls, then remove power window and door lock/unlock switch RH (1) from switch finisher (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
