Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

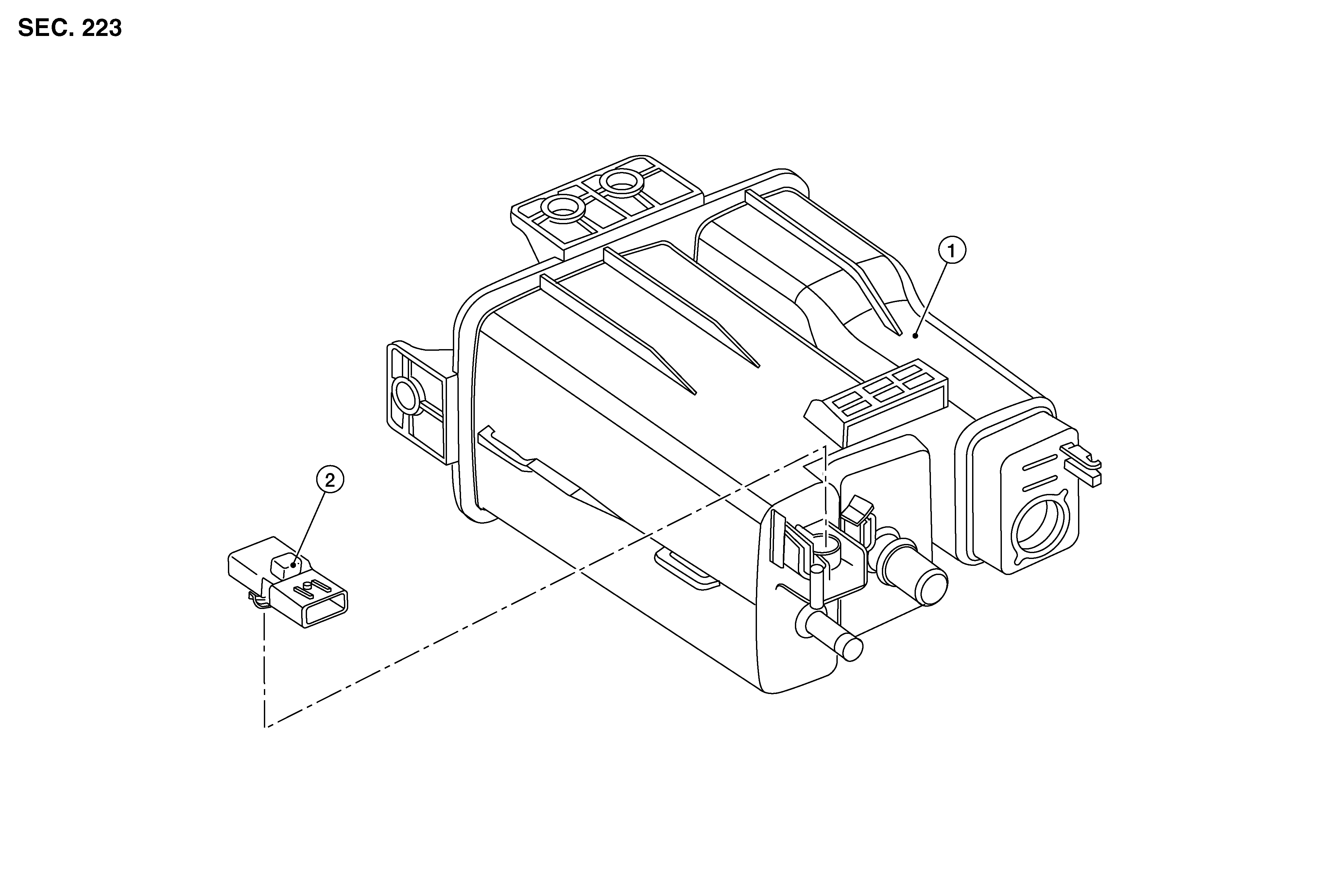

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
EVAP canister
|
2.
|
EVAP canister control pressure sensor (with O-ring)
|

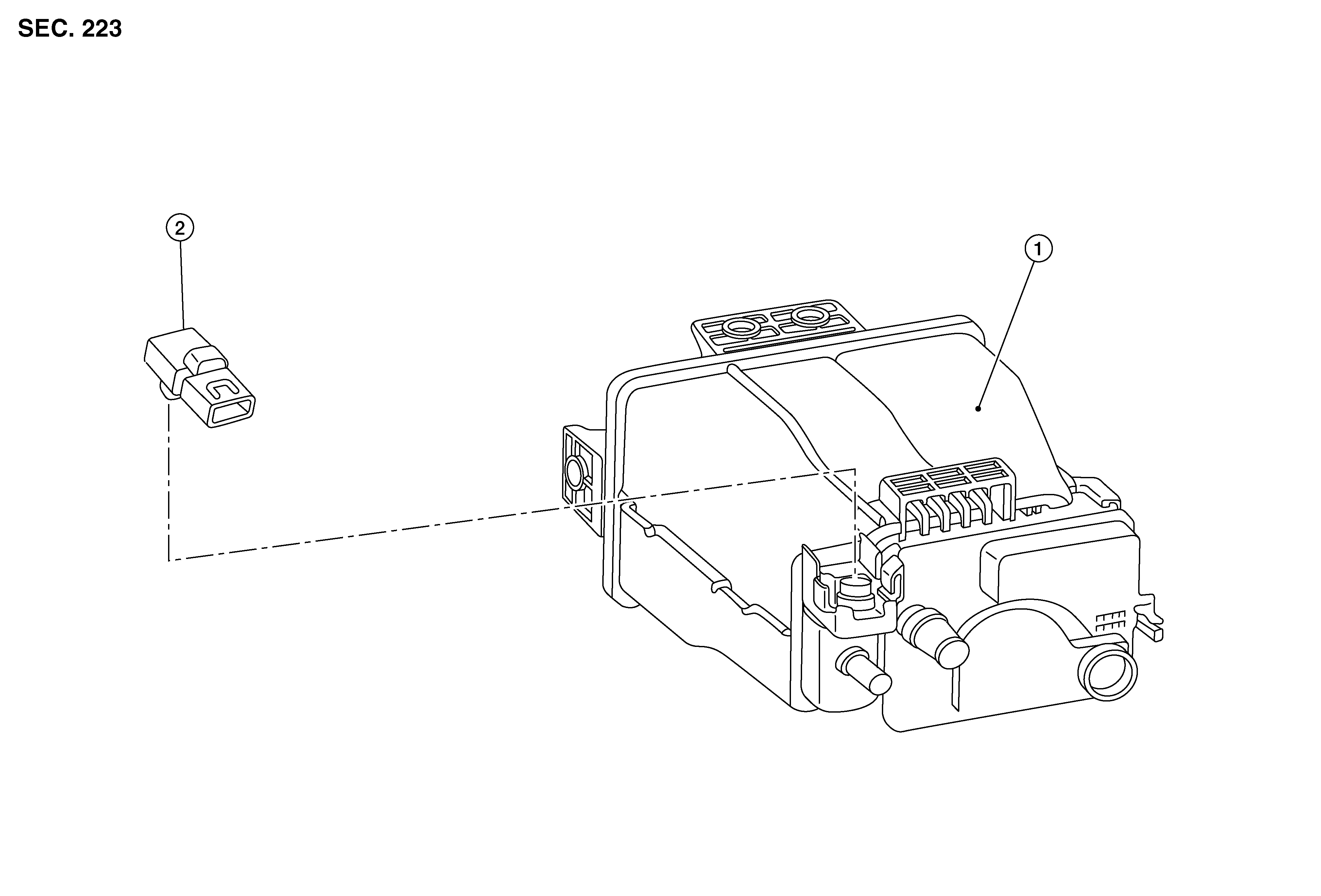

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
EVAP canister
|
2.
|
EVAP control system pressure sensor (with O-ring)
|
