Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the breather hose from the EVAP canister.
- Disconnect the harness connector from the EVAP canister vent control valve.

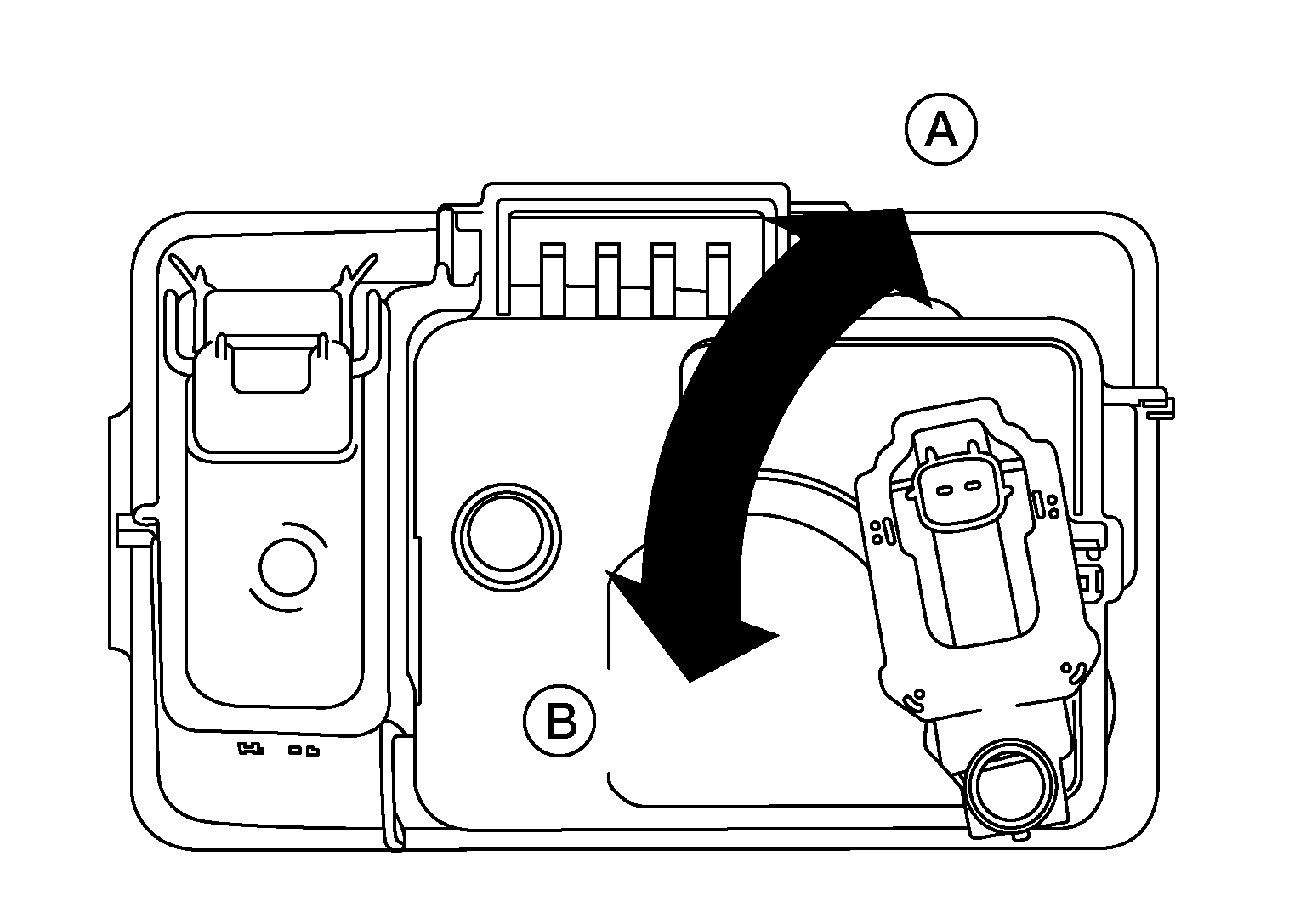

- Turn the EVAP canister vent control valve counterclockwise.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove the EVAP canister vent control valve.
CAUTION:
Do not reuse the O-ring.
