Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

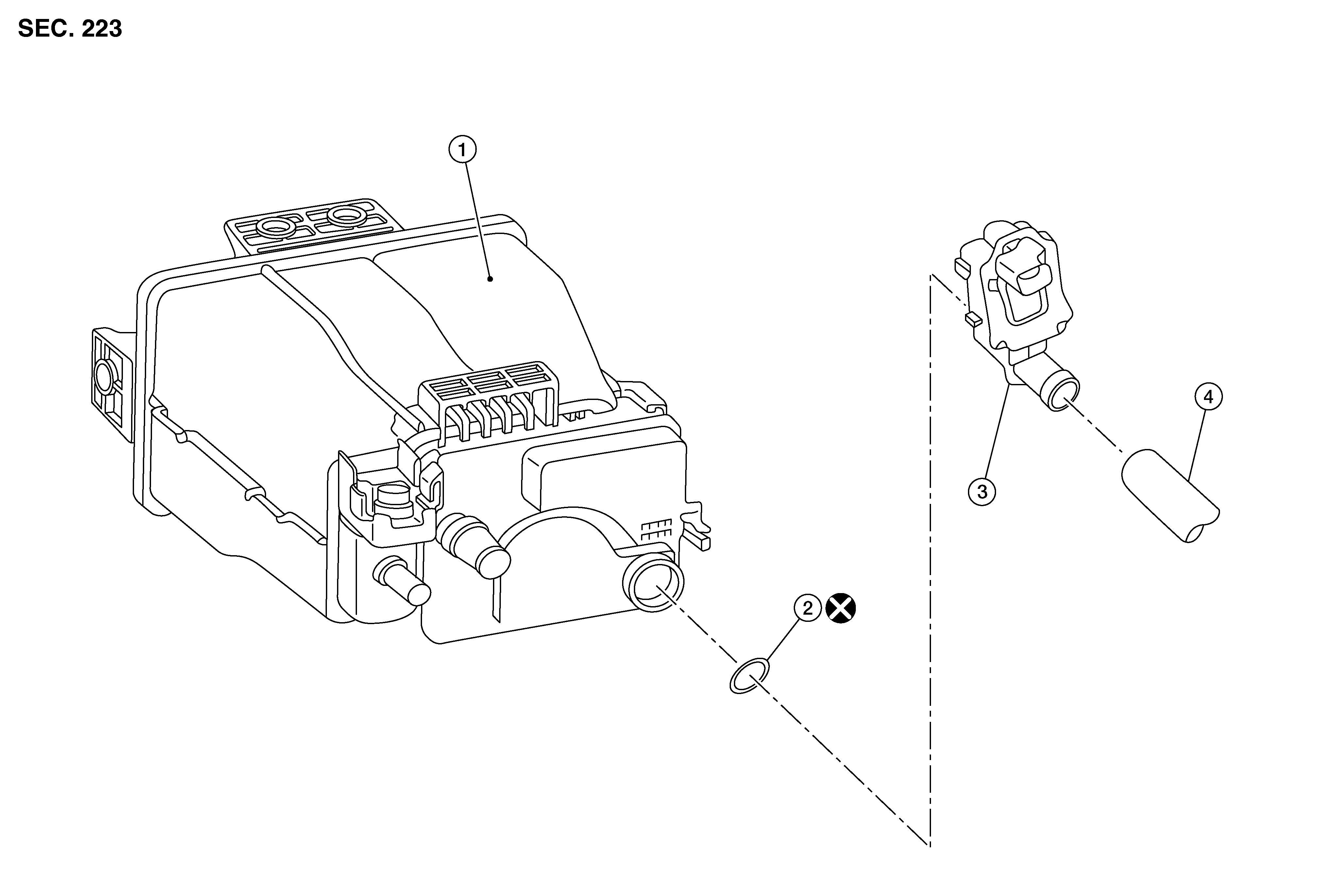

Fig 1: FOR USA AND CANADA

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister	2.	O-ring	3.	EVAP canister vent control valve
4.	EVAP canister vent control valve hose

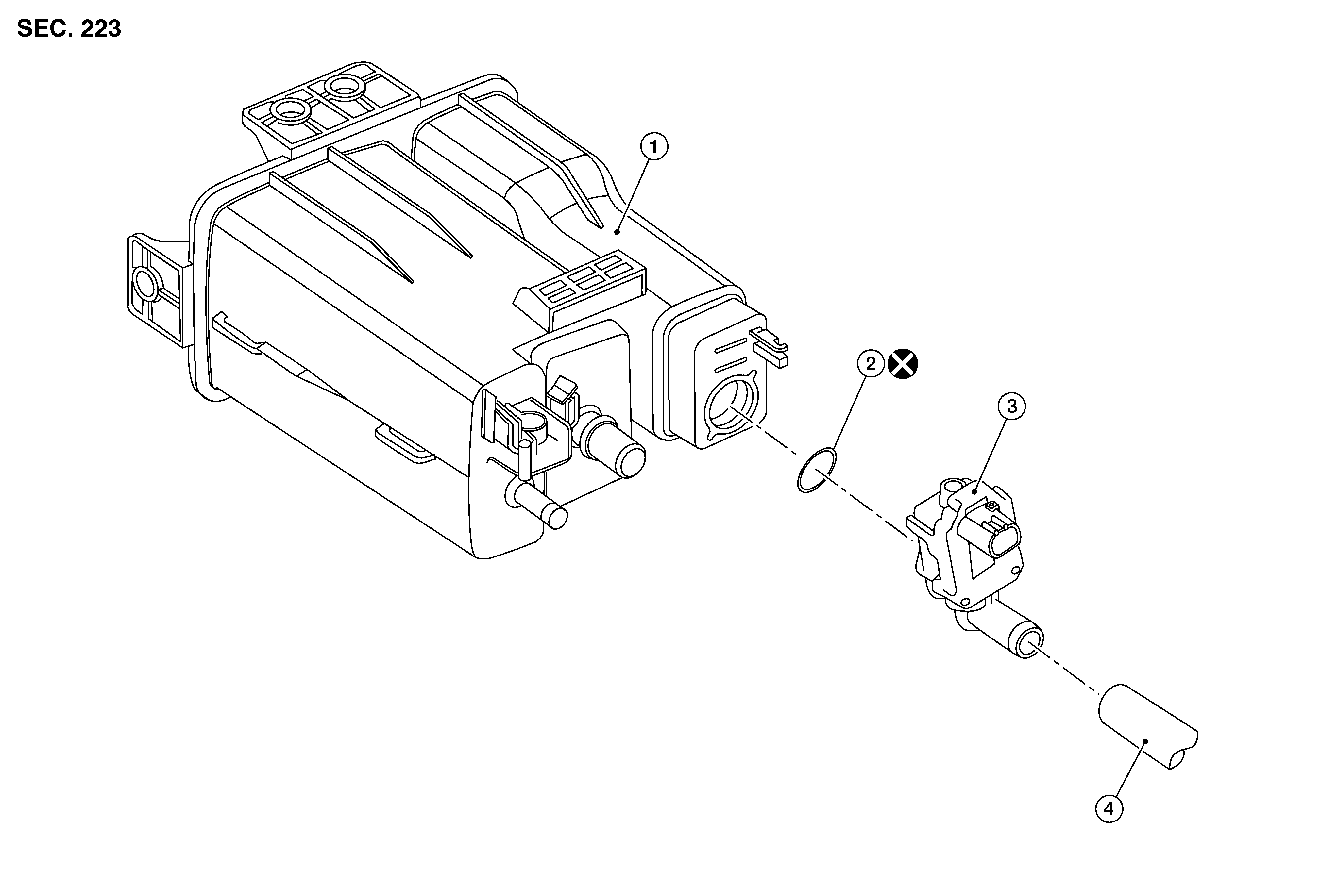

Fig 1: FOR MEXICO

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister	2.	O-ring	3.	EVAP canister vent control valve
4.	EVAP canister vent control valve hose
