Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

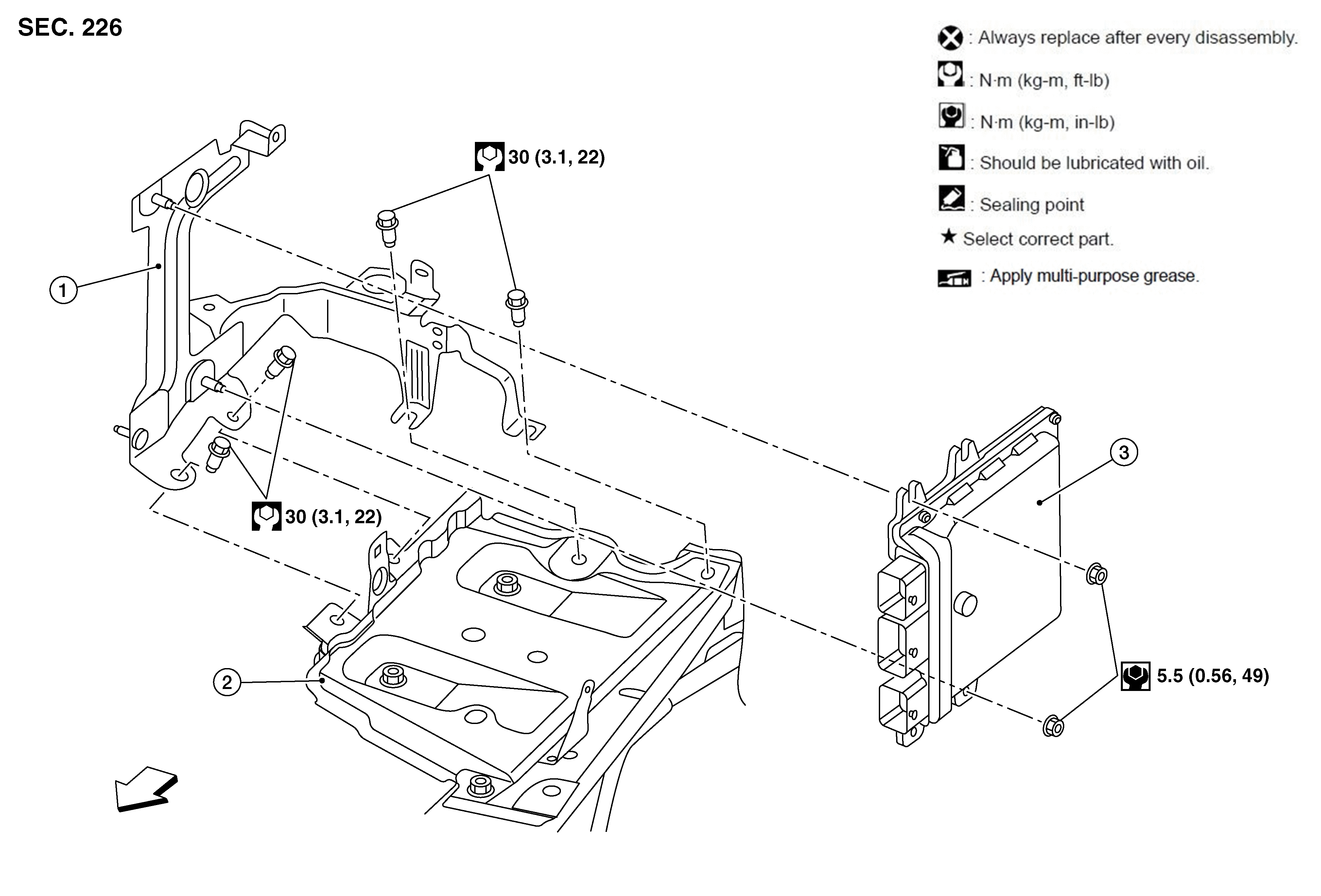

GNSAWBIA2738Z-738Courtesy of NISSAN NORTH AMERICA, INC.

1.

ECM bracket

2.

Battery tray

3.

ECM

SYMBOL

Front
