Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

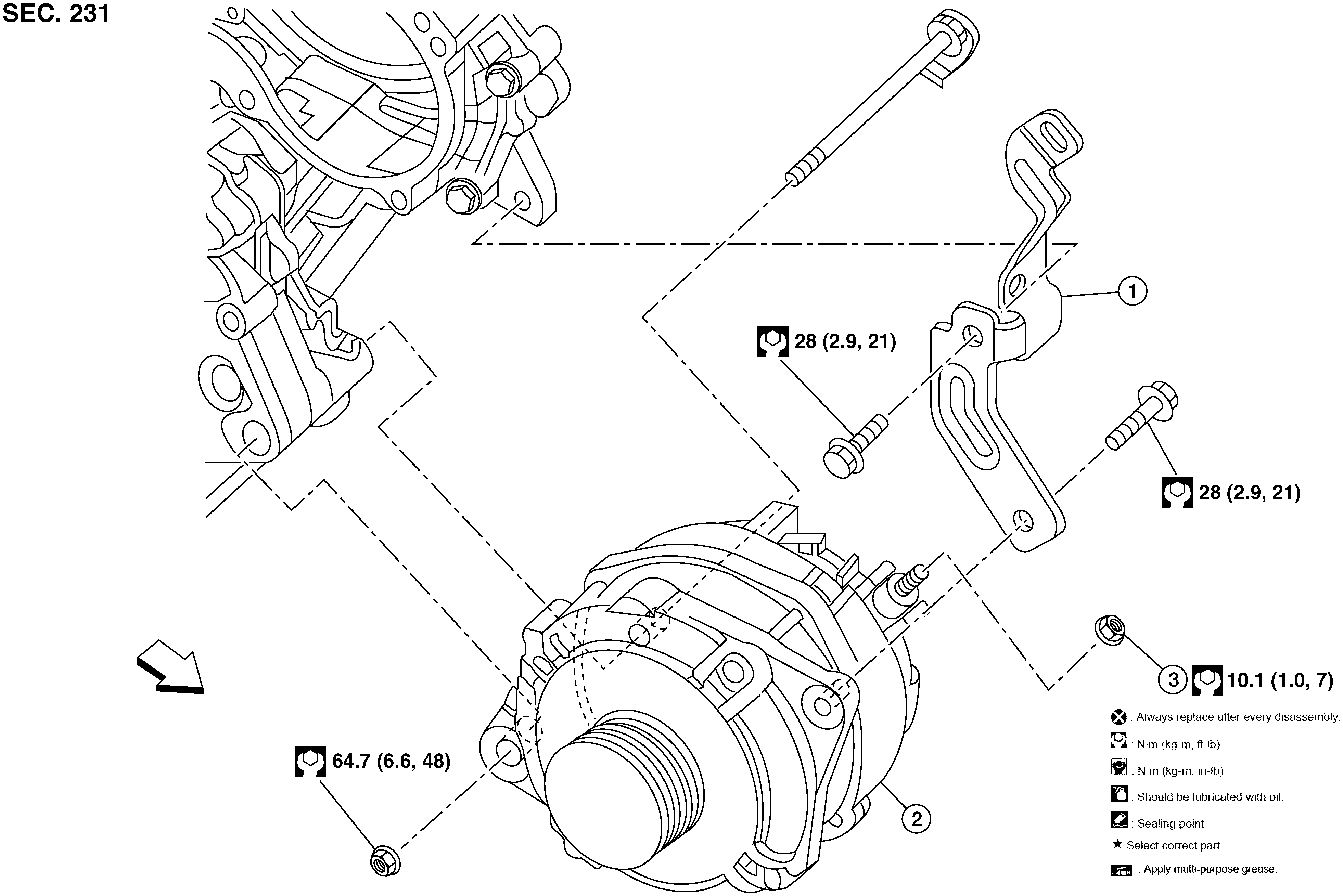

Fig 1: Generator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator bracket	2.	Generator	3.	"B" terminal nut
	Front
