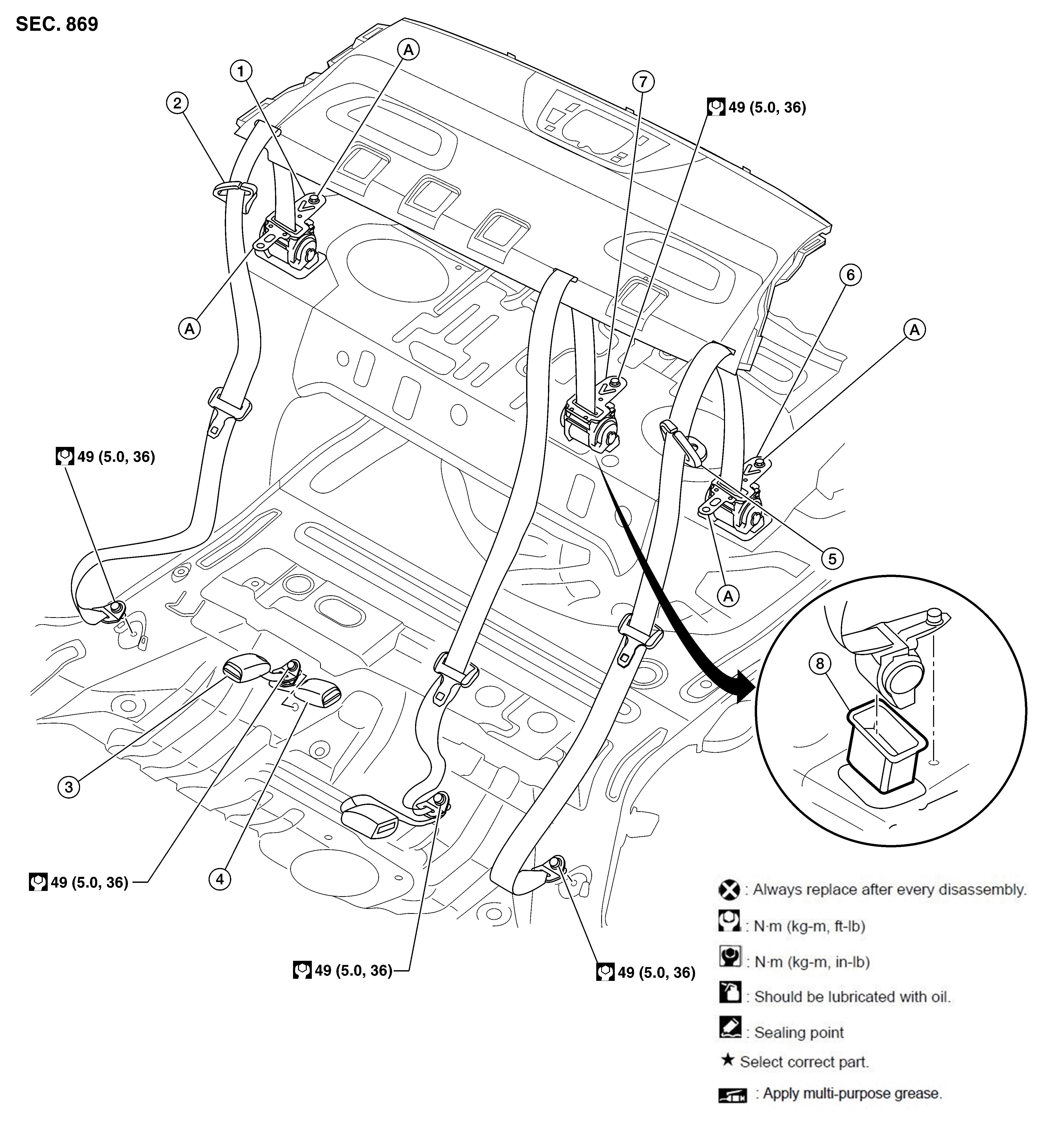

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Seat belt retractor assembly (RH) |
2. |
Seat belt hook (RH) |
3. |
Seat belt buckle (RH) |
|
4. |
Seat belt buckle (center) |
5. |
Seat belt hook (LH) |
6. |
Seat belt retractor assembly (LH) |
|
7. |
Seat belt retractor assembly (center) with seat belt buckle (LH) |
8. |
Seat belt retractor box |
A. |
Refer to Installation |
