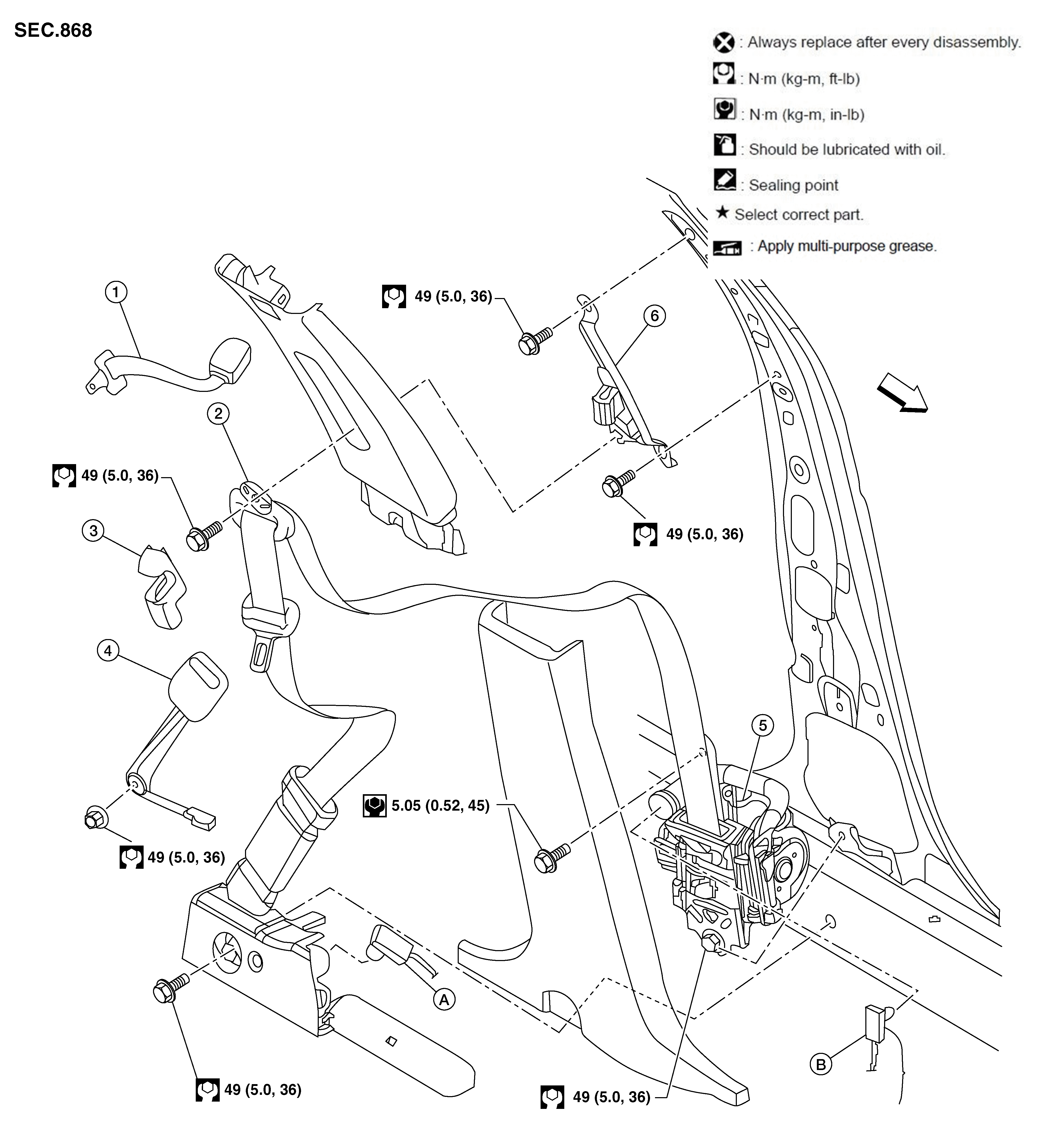

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Seat belt extender
|
2.
|
D-ring anchor
|
3.
|
Seat belt height adjuster cover
|
|
4.
|
Seat belt buckle
|
5.
|
Seat belt retractor
|
6.
|
Seat belt height adjuster
|
|
A.
|
Lap belt pre-tensioner harness connector
|
B.
|
Shoulder belt pre-tensioner harness connector
|
|
Front
|
