Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center pillar upper finisher. Refer to Removal and Installation .

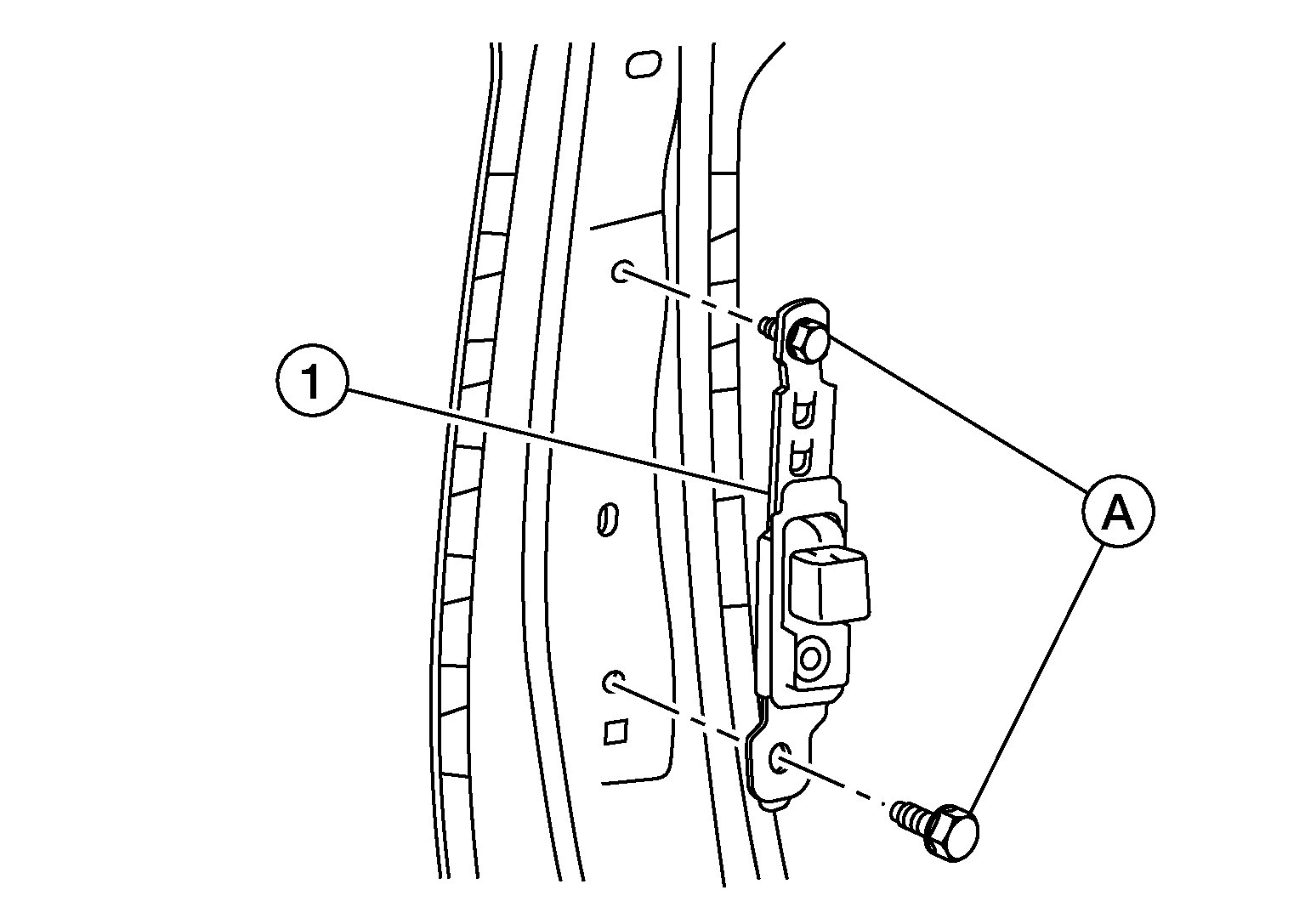

  2. Remove seat belt height adjuster bolts (A) and seat belt height adjuster (1).
    GNSDB122109Courtesy of NISSAN NORTH AMERICA, INC.
