Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Removal and Installation (WITH CLIMATE CONTROLLED SEATS), or Removal and Installation (W/O CLIMATE CONTROLLED SEATS).

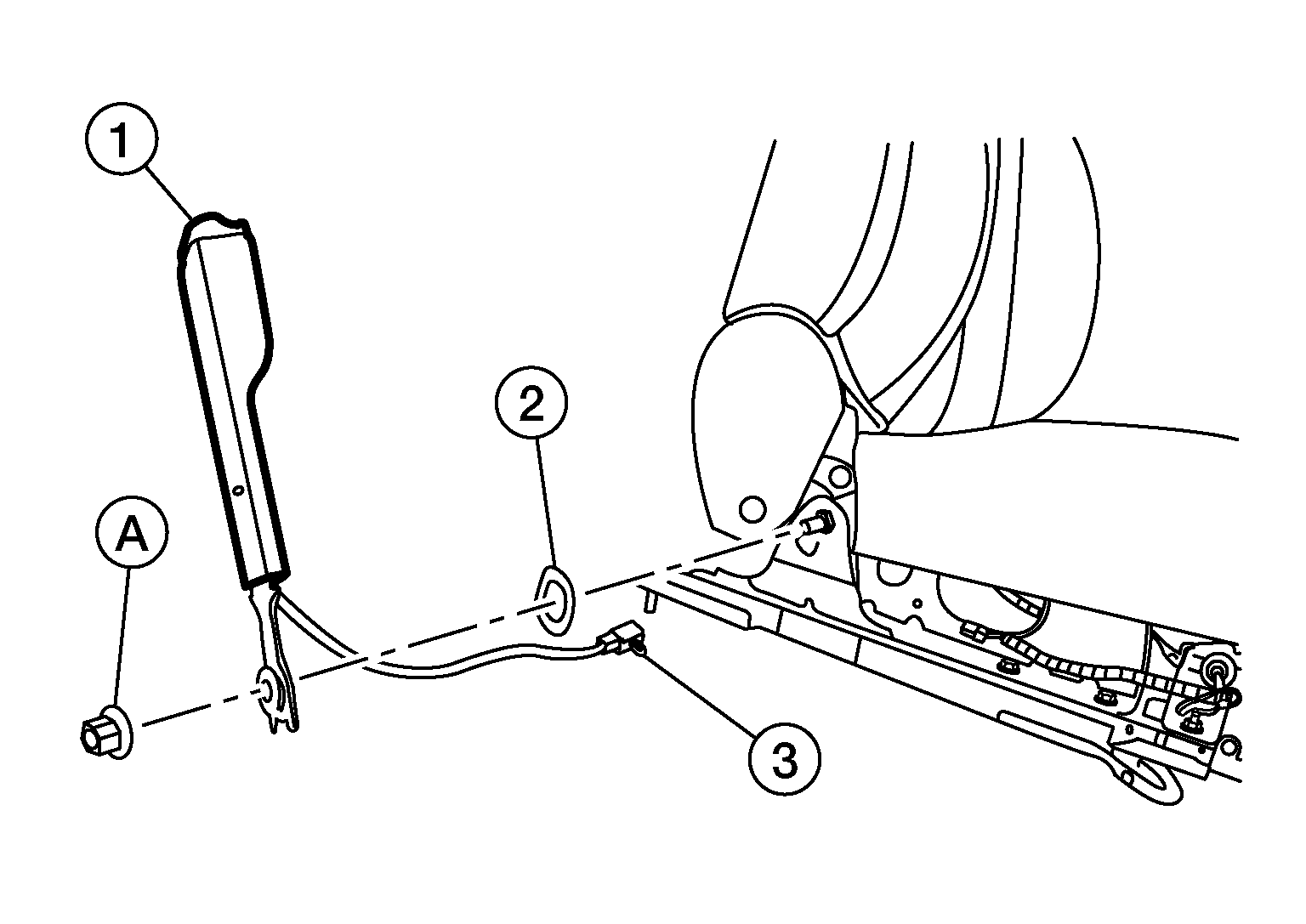

  2. Disconnect the harness connector (3), then release harness clip from the seat rail.
    GNSAWHIA1006Z-006Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove seat belt buckle anchor nut (A), then remove the seat belt buckle (1) from front seat.
    CAUTION: Before removing the seat belt buckle anchor nut, note the position of star washer (2) for correct installation.
