Seat Belt Retractor Off-Vehicle Check (Pillar)
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the seat belt retractor.
- Remove the front seat belt assembly, refer to Removal and Installation .

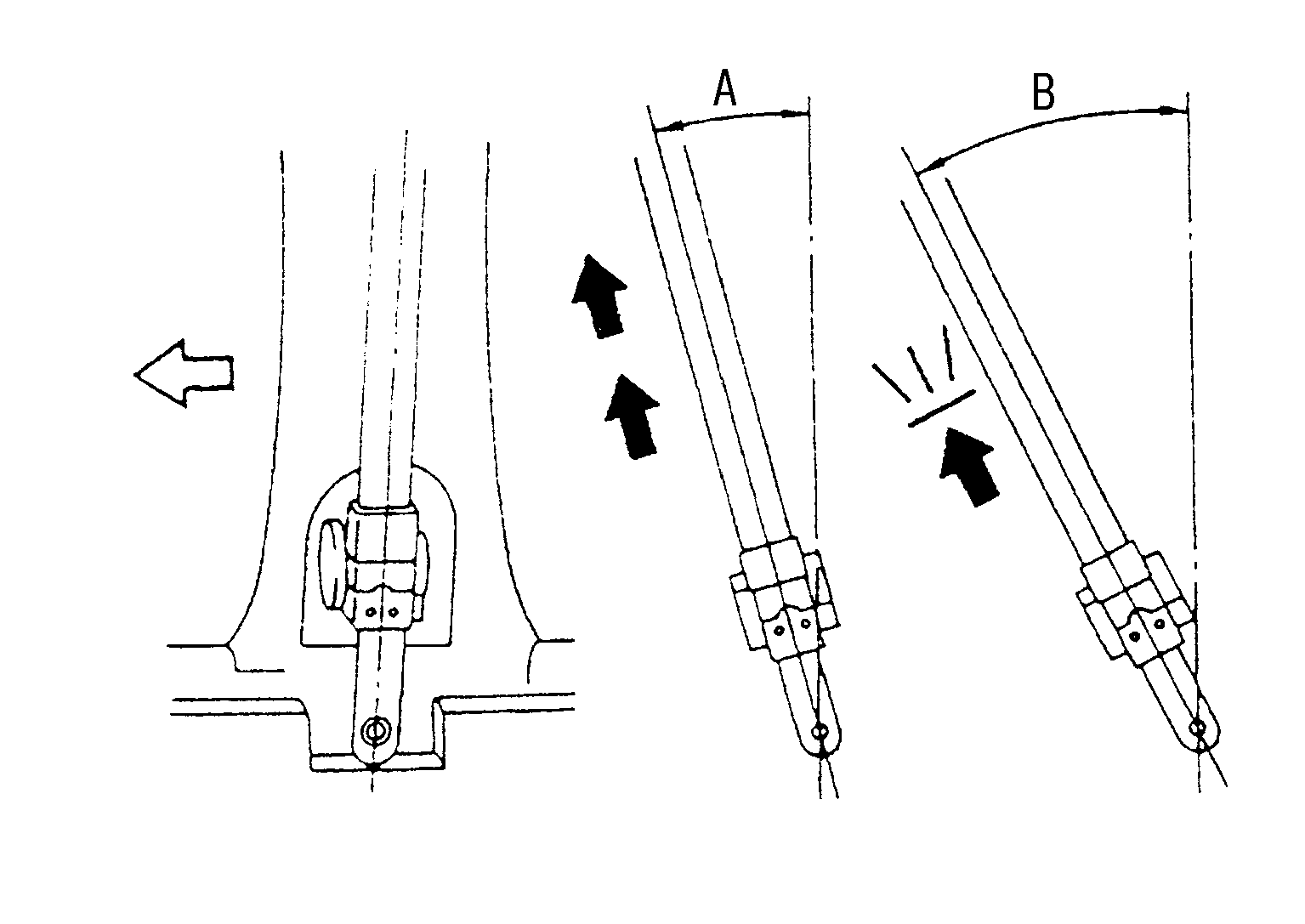

- Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the illustration.
A : The webbing can be pulled out if the retractor is tilted 15° degrees or less.
B : The webbing cannot be pulled out if the retractor is tilted 45° degrees or more.
- A and B show tilting angles.
: Front.
Replace the seat belt assembly if it does not operate within specifications.
