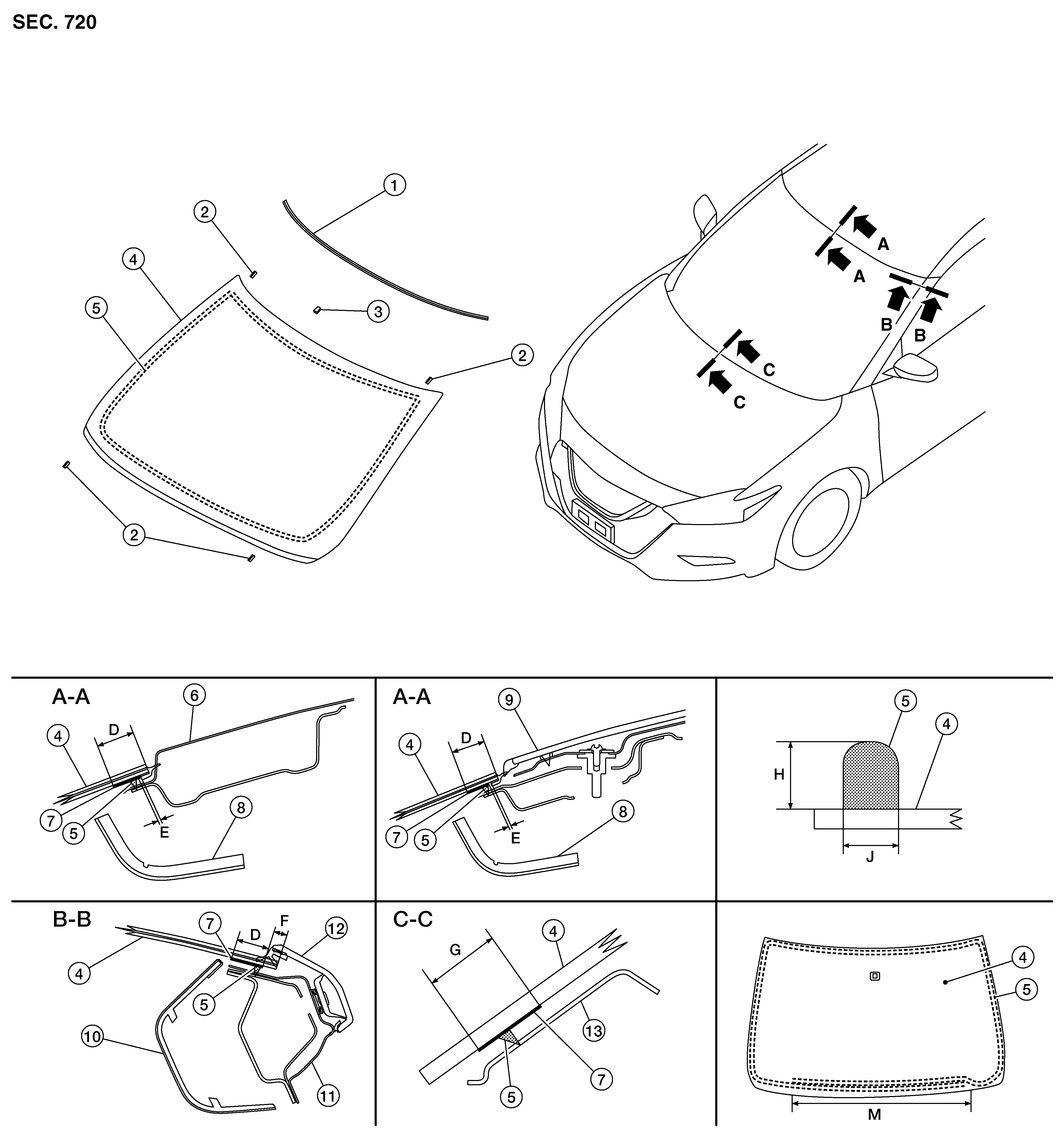

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Windshield glass molding |
2. |
Spacer |
3. |
Mirror base |
|
4. |
Windshield glass |
5. |
Adhesive |
6. |
Metal roof |
|
7. |
Glass primer |
8. |
Headlining |
9. |
Double panel sunroof |
|
10. |
Front pillar finisher |
11. |
Body side outer |
12. |
Front pillar molding |
|
13. |
Cowl top |
D. |
16 mm (0.63 in) |
E. |
1 mm (0.04 in) |
|
F. |
7.8 mm (0.31 in) |
G. |
38 mm (1.50 in) |
H. |
12 + 2, - 0 mm (0.47 + 0.08, - 0 in) |
|
J. |
7 + 2, - 0 mm (0.28 + 0.08, - 0 in) |
M. |
1000 mm (39.37 in) overlap |
