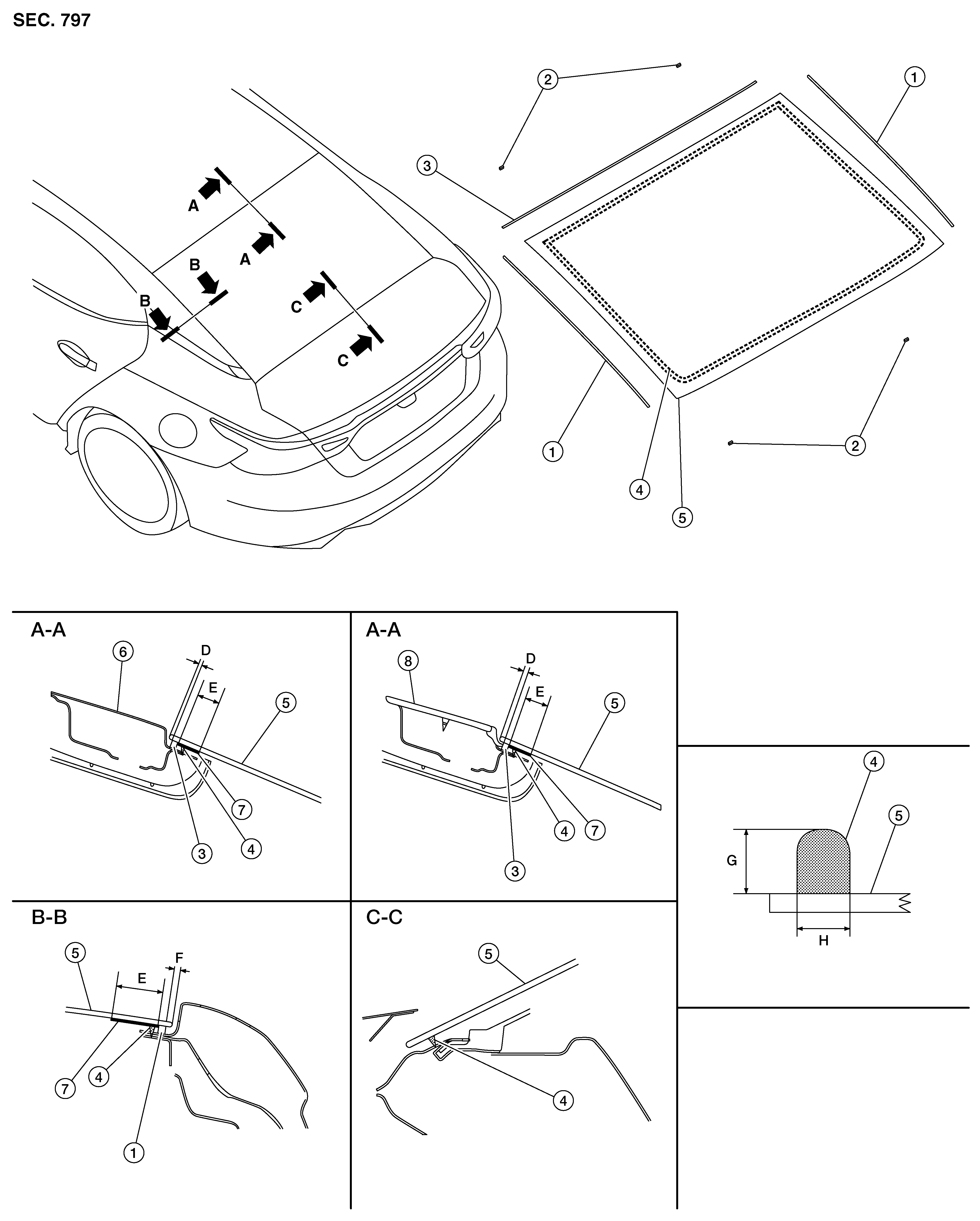

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Dam sealant rubber (side) |
2. |
Spacer |
3. |
Dam sealant rubber (upper) |
|
4. |
Adhesive |
5. |
Rear window glass |
6. |
Metal roof |
|
7. |
Glass primer |
8. |
Double panel sunroof |
D. |
2.7 mm (0.11 in) |
|
E. |
16 +2, -0 mm (0.63 +0.08, -0 in) |
F. |
4 mm (0.16 in) |
G. |
12 +2, -0 mm (0.47 +0.08, -0 in) |
|
H. |
7 +2, -0 mm (0.28 +0.08, -0 in) |
