Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door finisher. Refer to Removal and Installation .
Remove bolts (A) and bracket.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove door vapor barrier.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Use care not to damage or tear vapor barrier during removal.
Temporarily reconnect the power window switch and raise/lower the door glass until the glass bolts (A) can be seen and remove.

Courtesy of NISSAN NORTH AMERICA, INC.

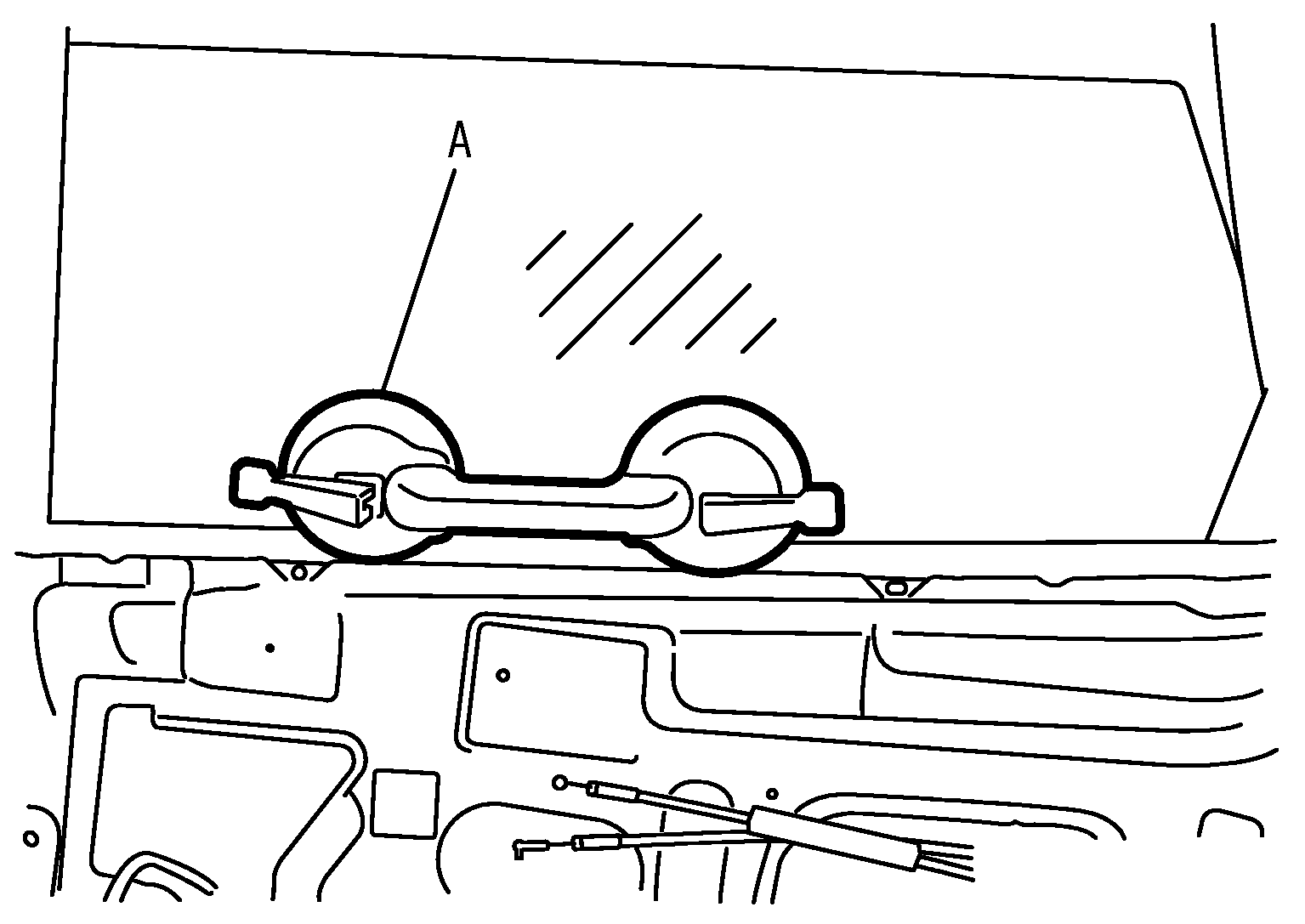

Raise door glass and hold in place with suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect harness connector from door glass regulator.

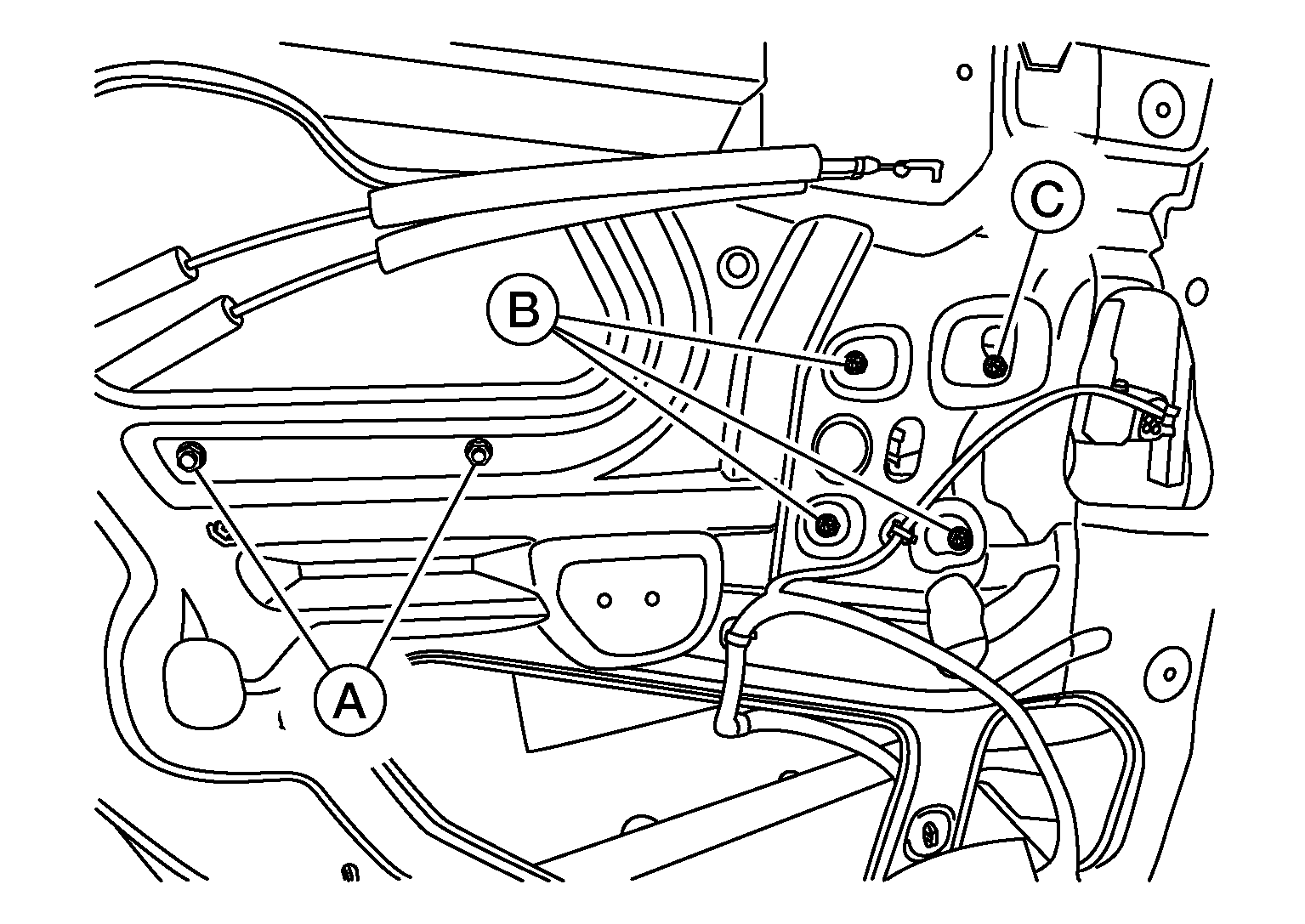

Remove door glass regulator nuts (A) and bolts (B).

Courtesy of NISSAN NORTH AMERICA, INC.
Loosen bolt (C) and remove door glass regulator.
Remove regulator from door.
