Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door finisher. Refer to Removal and Installation .

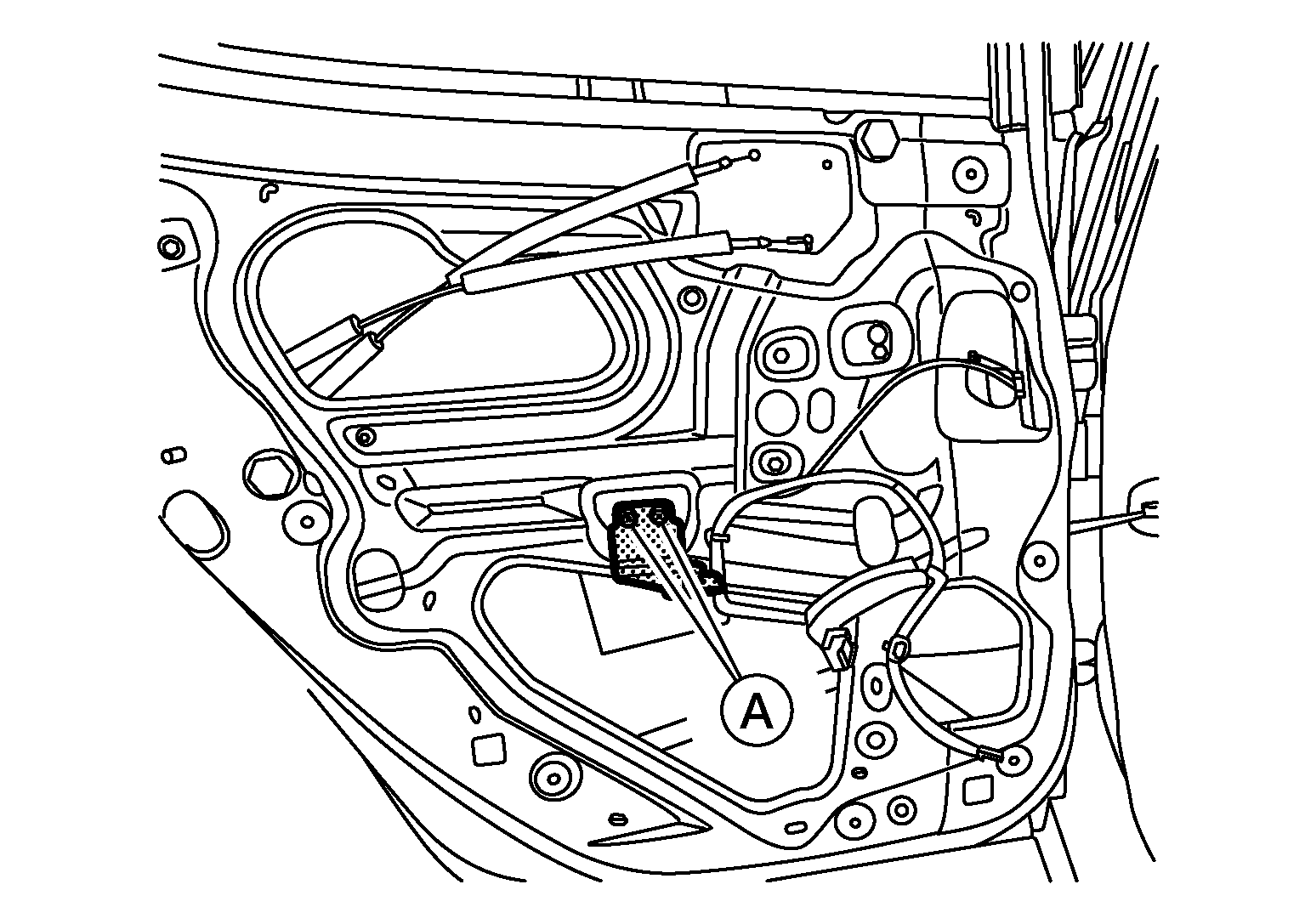

Remove bolts (A) and bracket.

Courtesy of NISSAN NORTH AMERICA, INC.

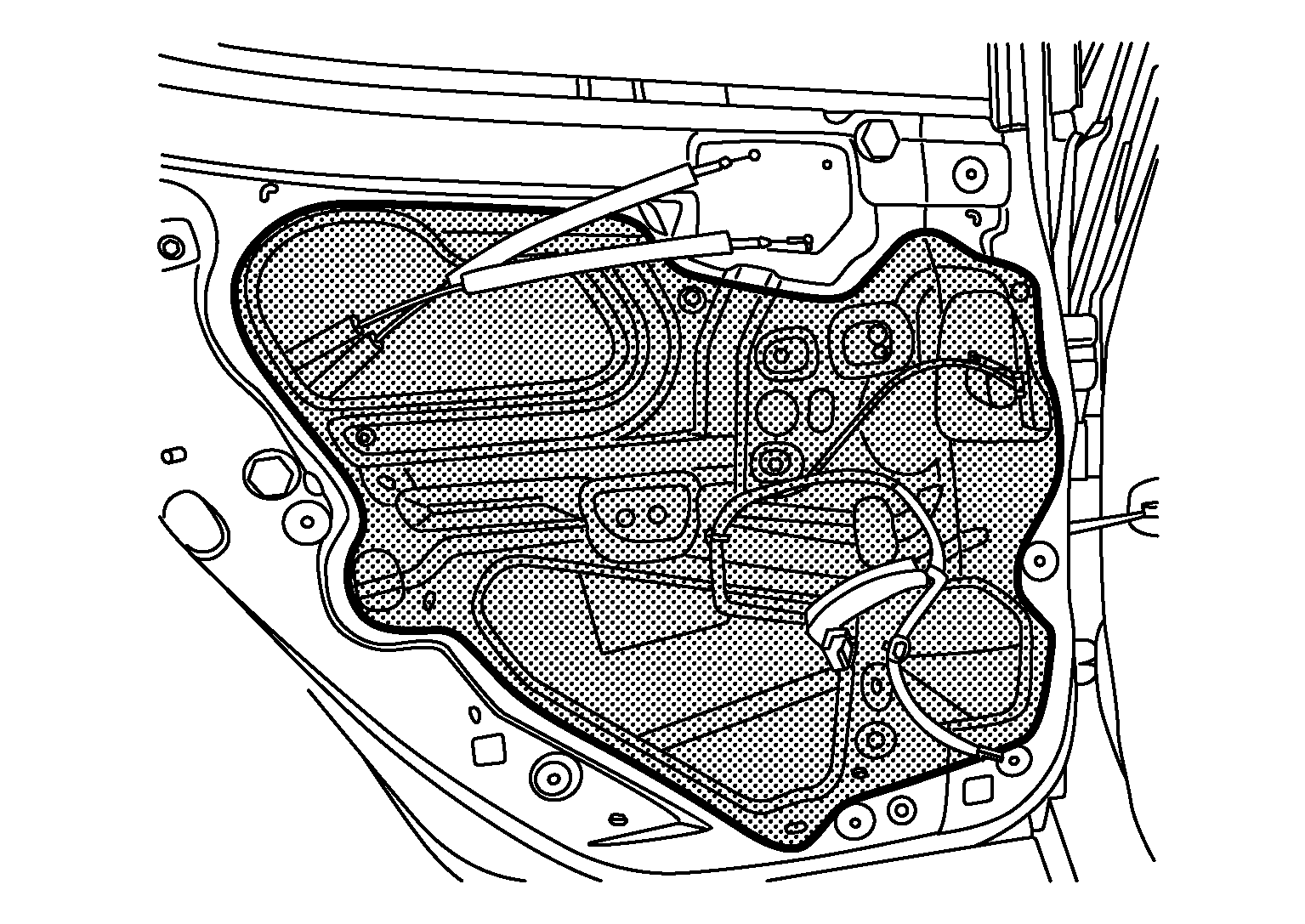

Remove vapor barrier.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Use care not to damage or tear vapor barrier during removal.

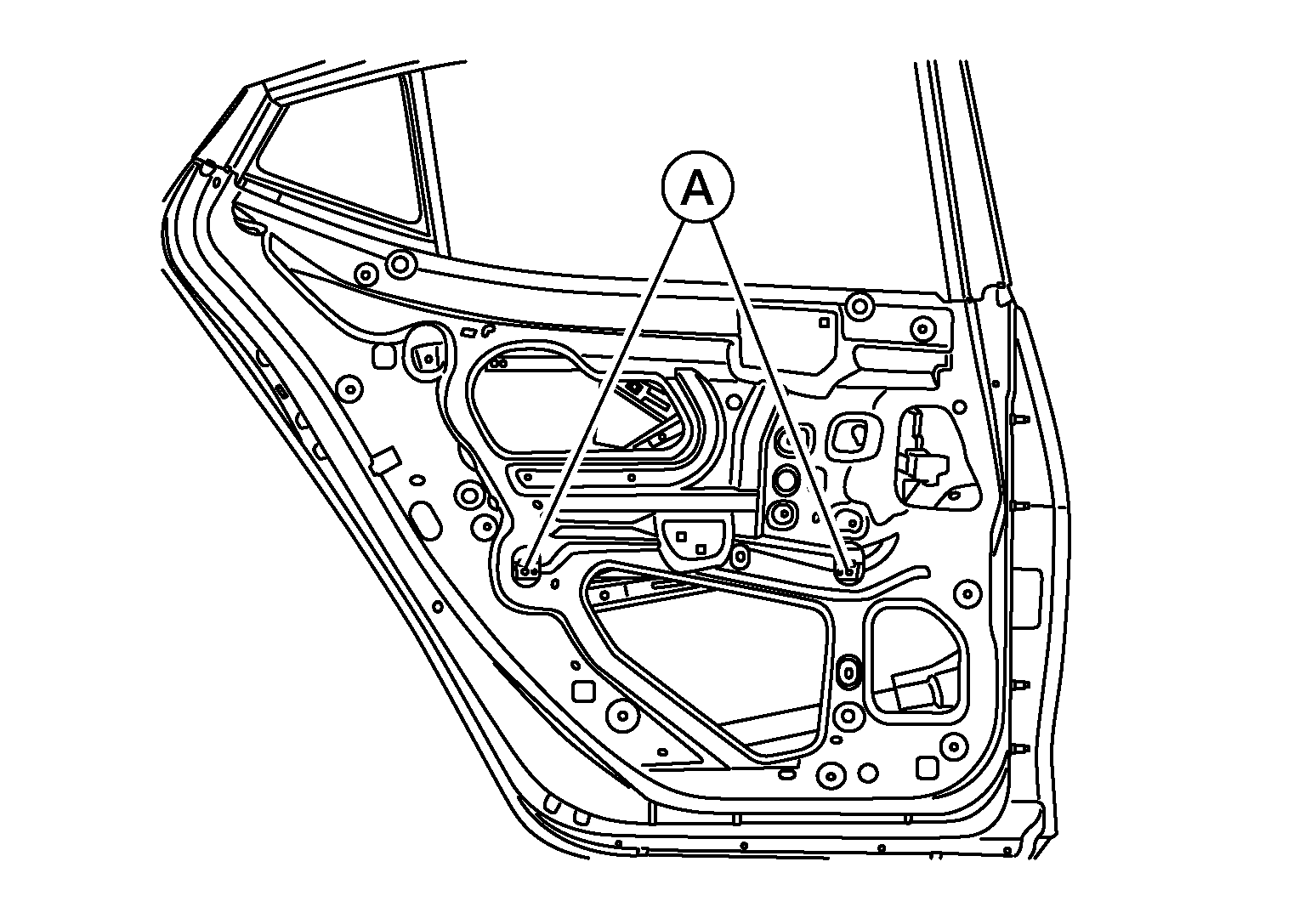

Temporarily reconnect the power window switch and raise/lower the door glass until the glass bolts (A) can be seen.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove door glass bolts and place door glass on the inner bottom of door.

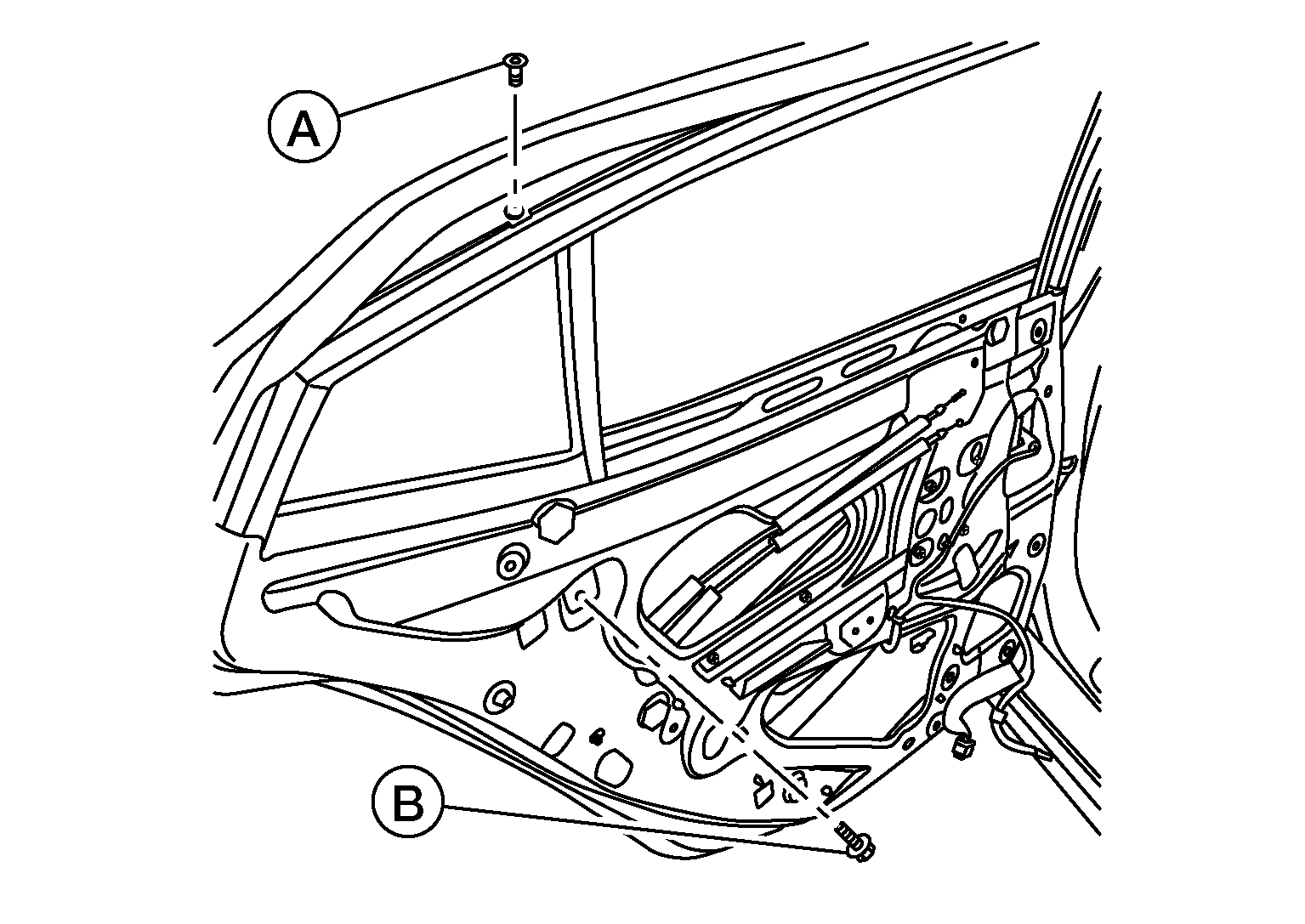

Remove screw (A), bolt (B).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the door glass rubber run and partition glass.
Remove door glass from the bottom of the door.
