Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front door finisher. Refer to Removal and Installation .

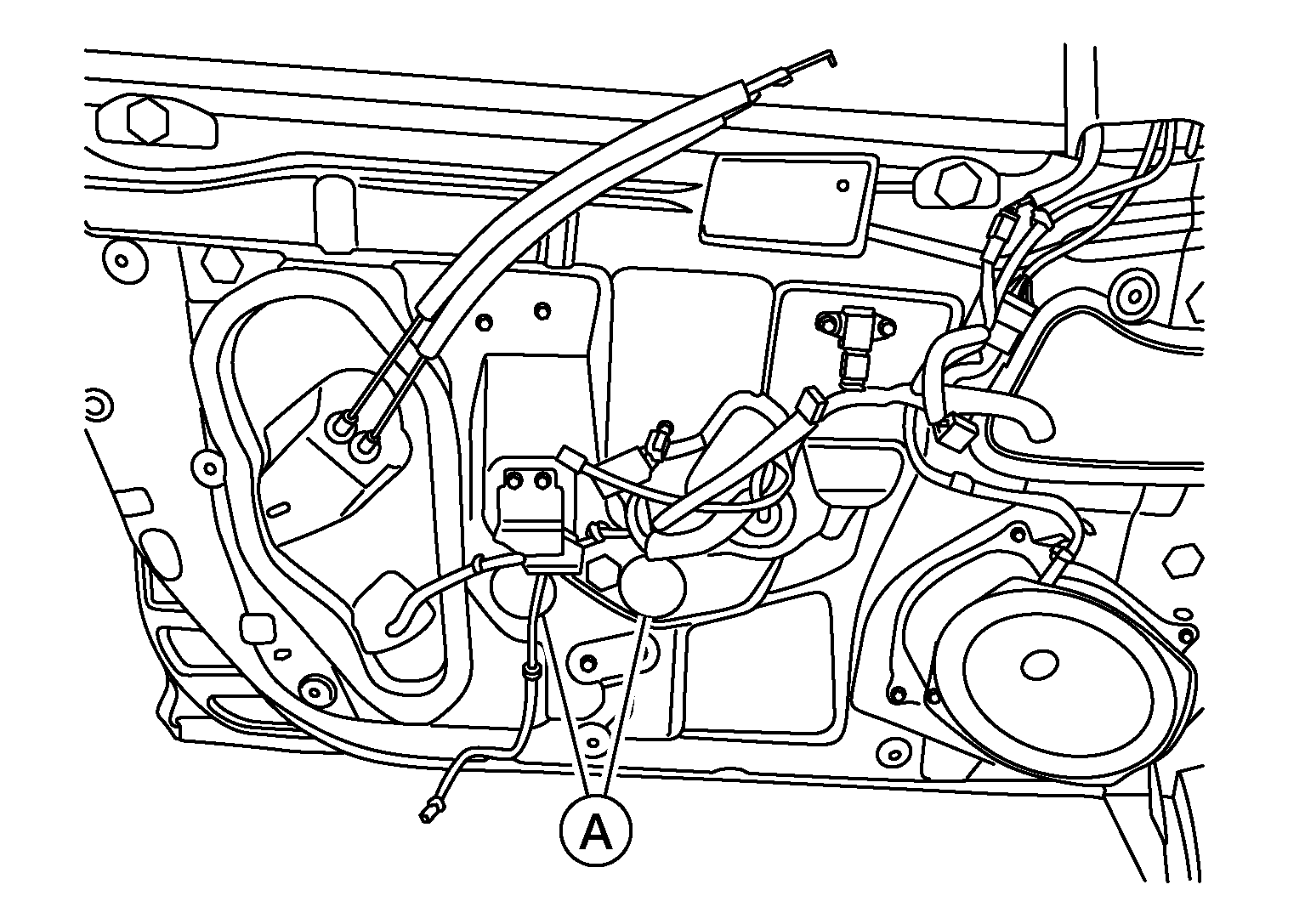

  2. Remove bolt hole covers (A).
    GNSALKIA4017Z-017Courtesy of NISSAN NORTH AMERICA, INC.
  3. Temporarily reconnect main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch RH (RH door).
  4. Operate main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch RH (RH door) to raise/lower the door glass until the door glass regulator to glass bolts can be seen.

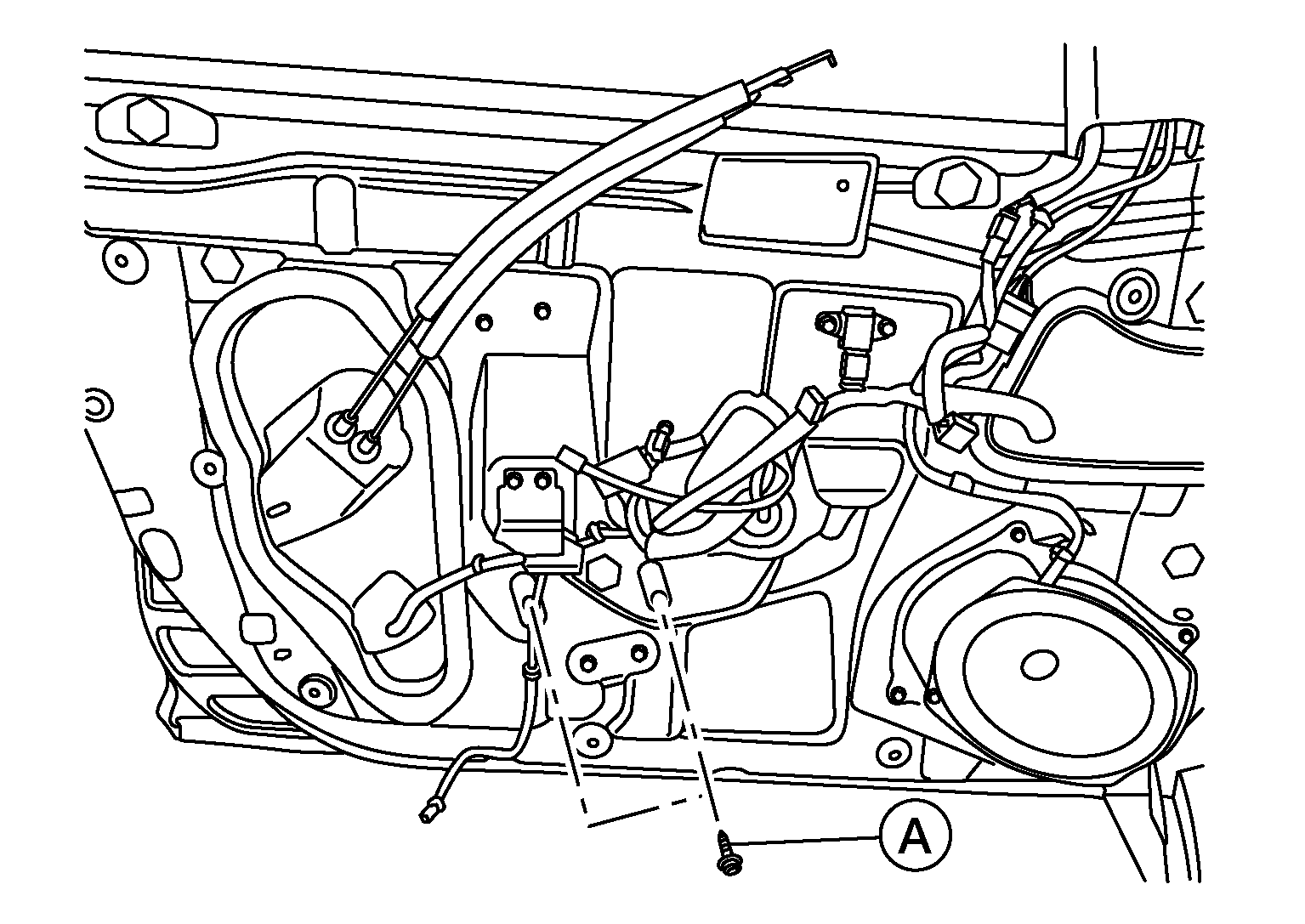

  5. Remove door glass regulator to glass bolts (A).
    GNSALKIA4018Z-018Courtesy of NISSAN NORTH AMERICA, INC.

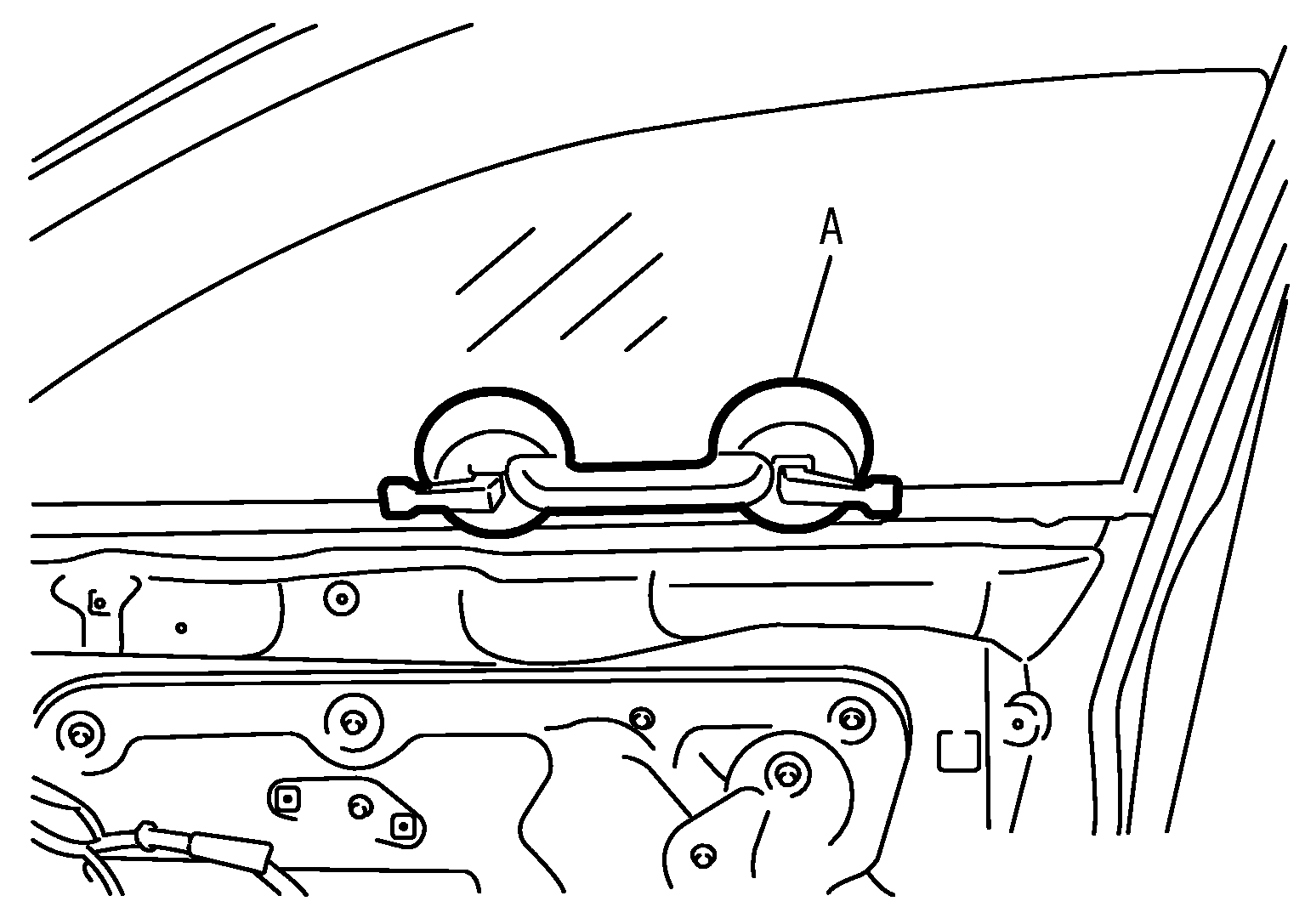

  6. Raise door glass and hold in place using a suitable tool (A).
    G04145651Courtesy of NISSAN NORTH AMERICA, INC.

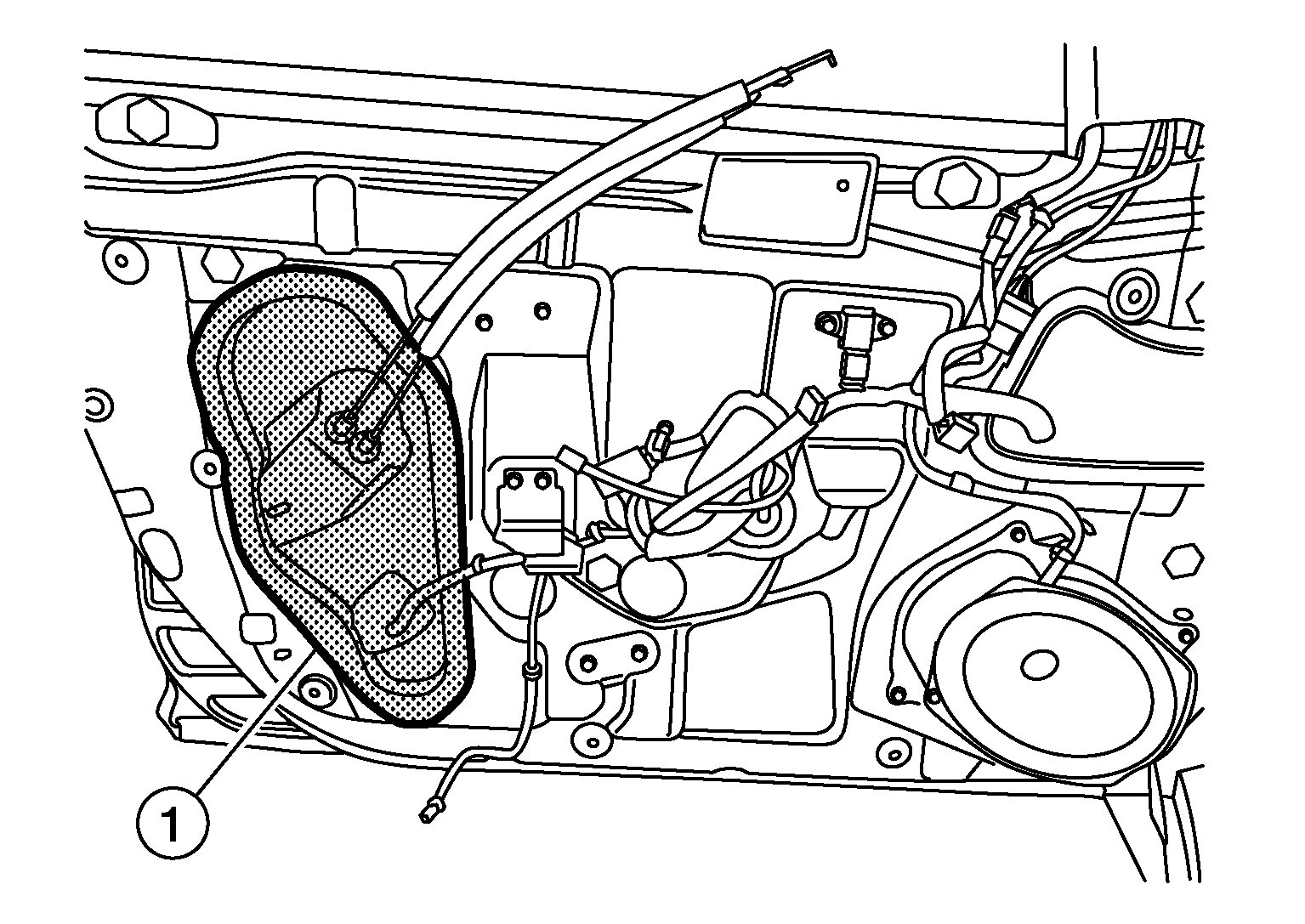

  7. Remove door vapor barrier (1).
    GNSALKIA4019Z-019Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use care not to damage or tear vapor barrier during removal.
  8. Disconnect harness connector from door glass regulator motor.

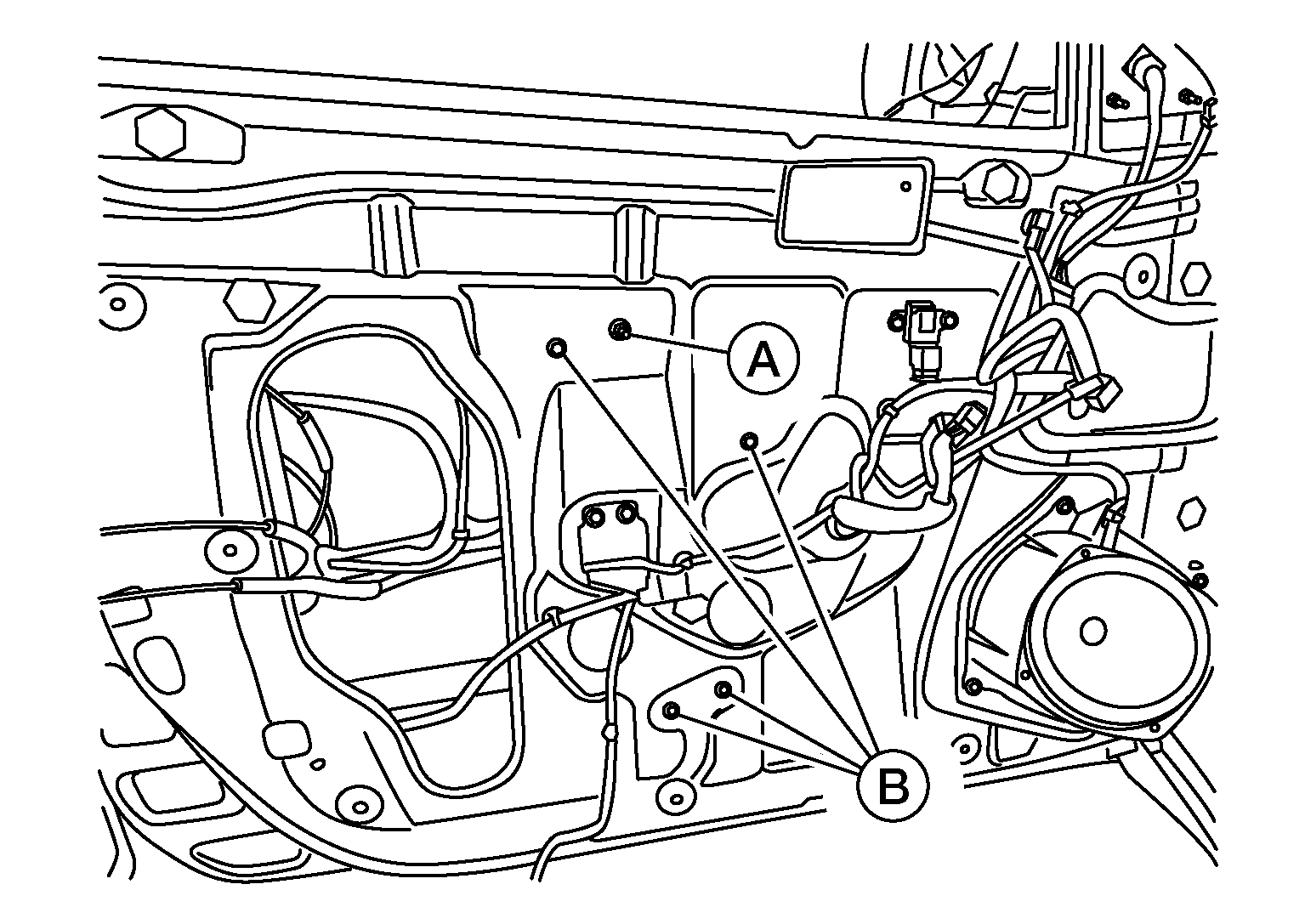

  9. Remove bolts (B) and nut (A) then door glass regulator from door.
    GNSALKIA4020Z-020Courtesy of NISSAN NORTH AMERICA, INC.
