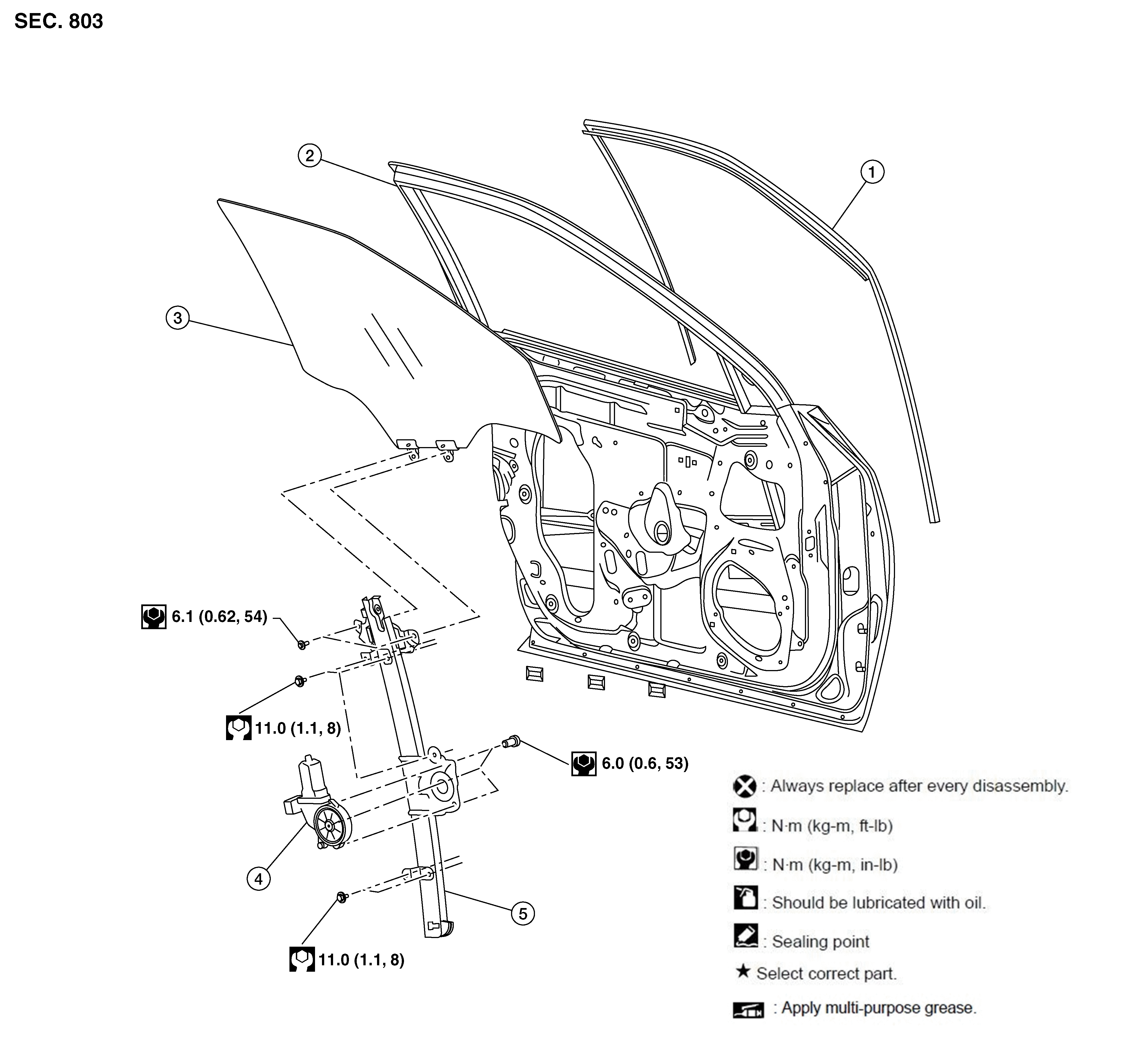

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door glass rubber run	2.	Door	3.	Door glass
4.	Front power window motor	5.	Door glass regulator
