With Driver Assistance System
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

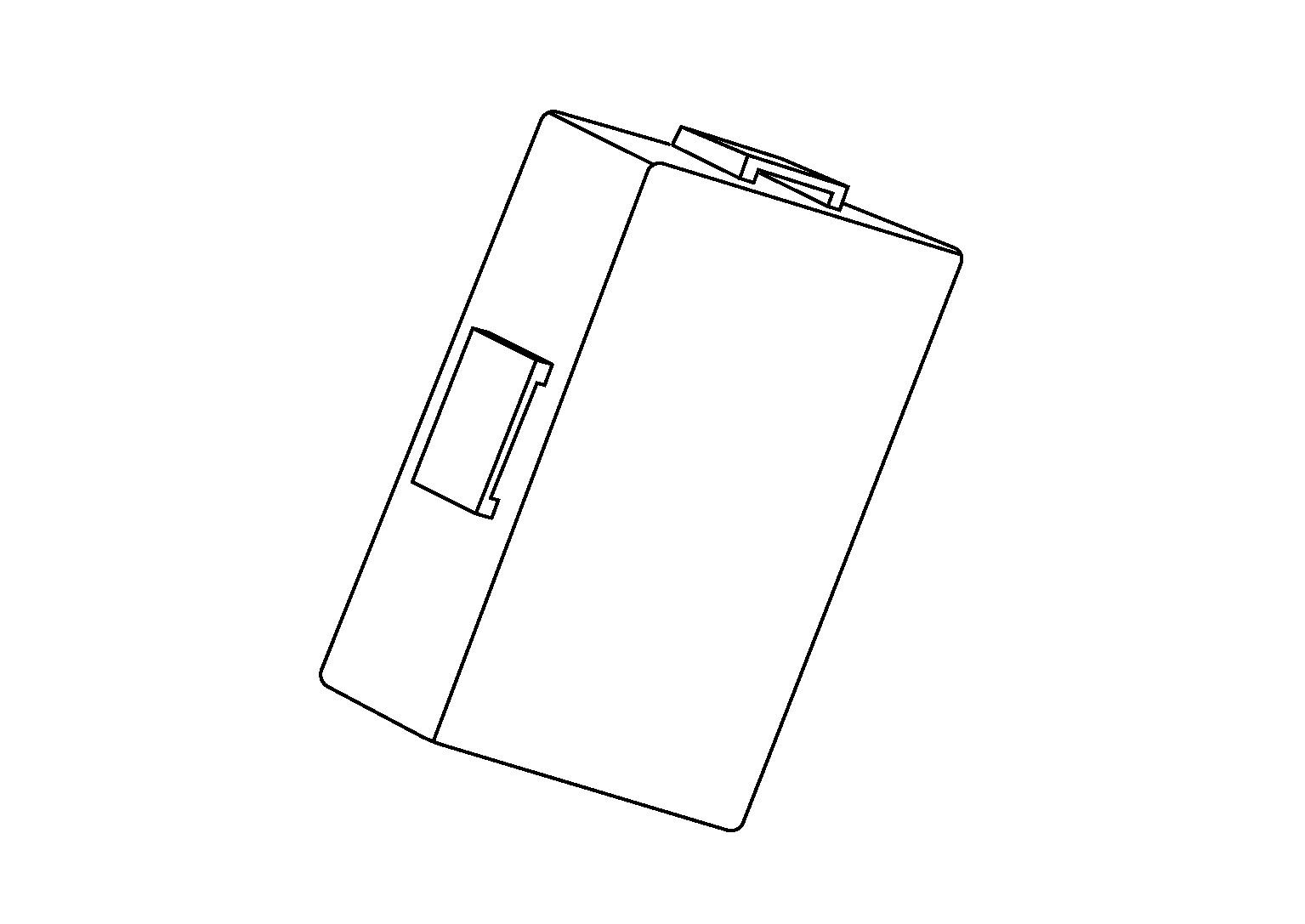

- The sonar control unit is installed at the lower dash.
- Sonar sensor signals are received by the sonar control unit and transmitted to the around view monitor control unit and combination meter via CAN communication for the indicator display.
- Sonar control unit outputs a buzzer signal to the AV control unit for audible alert.
