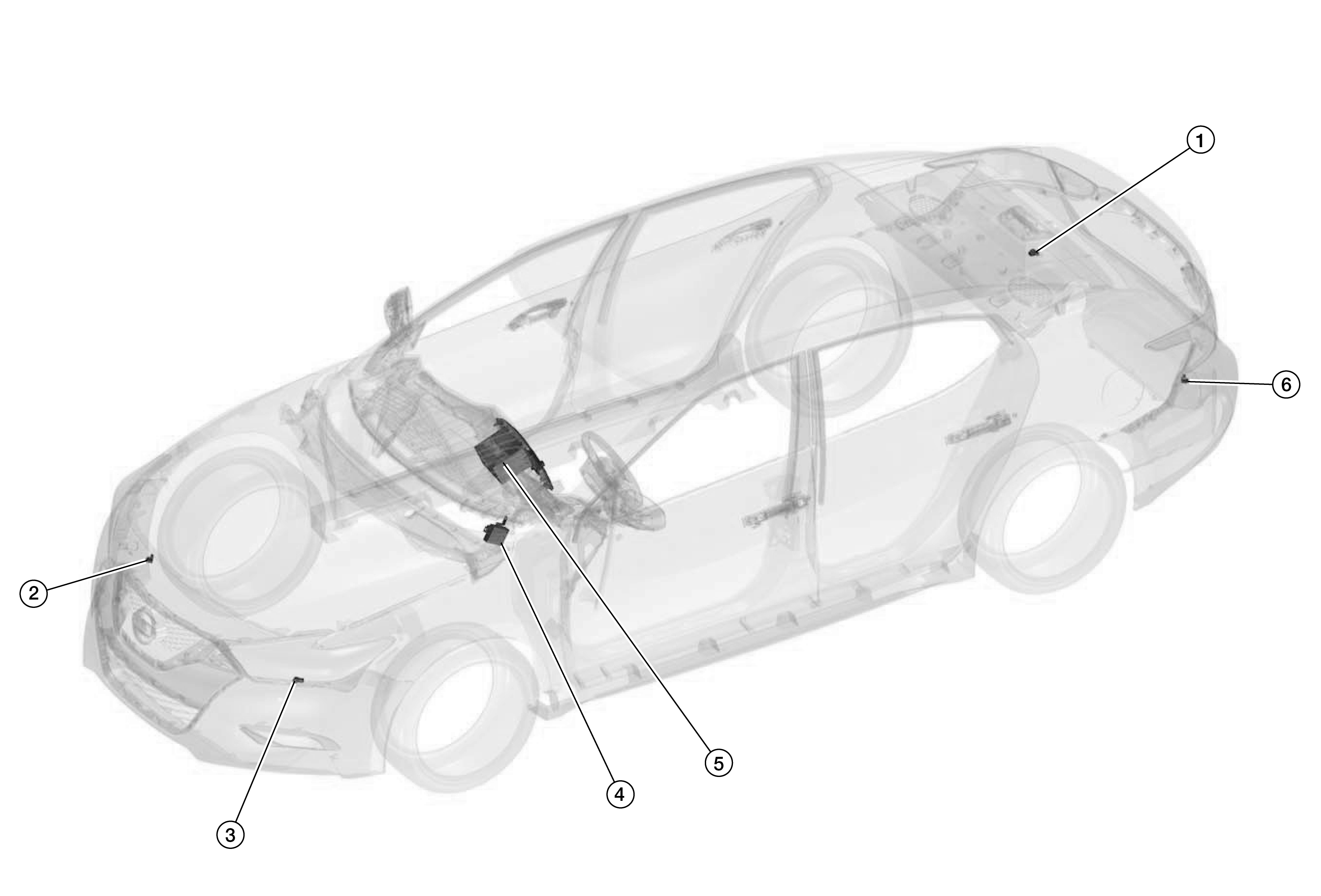

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Component |
Function |
|
1. |
Rear sonar sensor RH outer |
Refer to Sonar Sensor . |
|
2. |
Front sonar sensor RH outer |
|
|
3. |
Front sonar sensor LH outer |
|
|
4. |
Sonar control unit |
Refer to Sonar Control Unit . |
|
5. |
AV control unit |
Receives buzzer signal, and transmits to speakers. Refer to AV Control Unit (Navi with Bose) or AV Control Unit (Navi without Bose) |
|
6. |
Rear sonar sensor LH outer |
Refer to Sonar Sensor . |
