Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the sonar control unit, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to Description .

Remove the instrument lower panel LH. Refer to Removal and Installation .

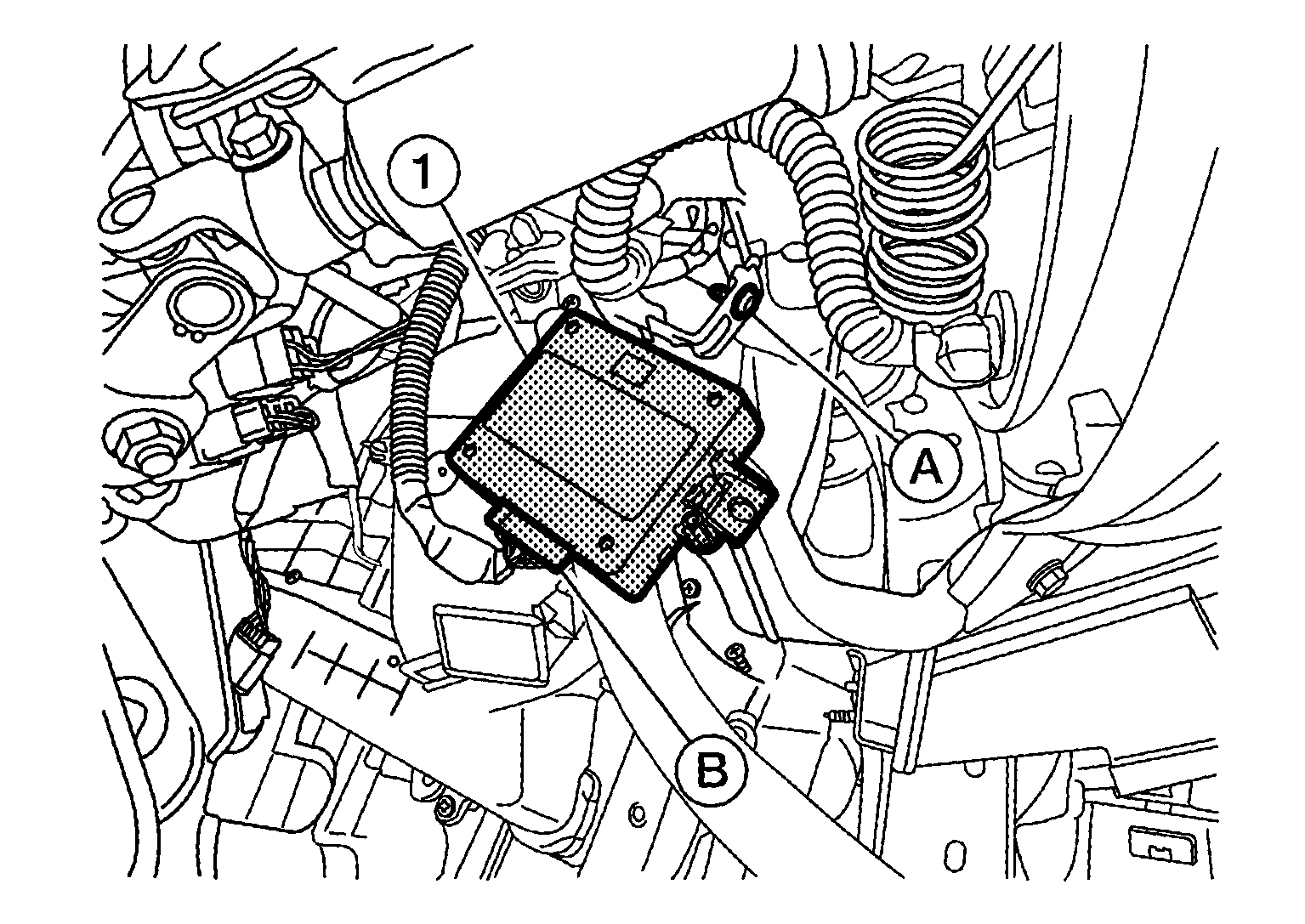

Disconnect the harness connector (B) from the sonar control unit (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the screw (A) from the sonar control unit (1) and remove.
