Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuse for the power socket.

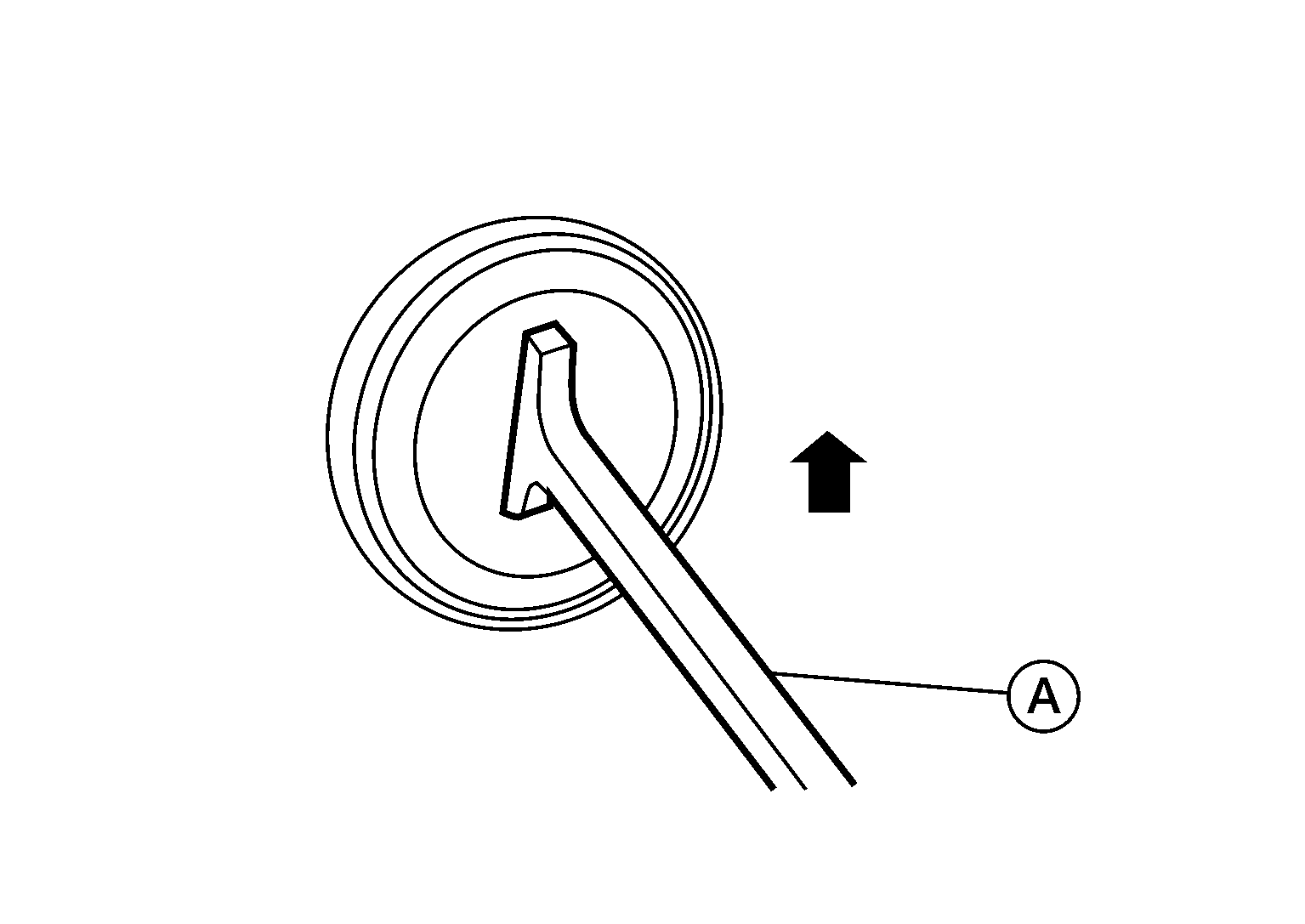

  2. Insert one side of the Tool (A) into one of the square holes inside the power socket.
    G06988875Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number (A)

    :-- (J-42059)
  3. Lift up the handle of the Tool (A) until the other side snaps into the other square hole in the power socket.
  4. Pull the power socket straight out with the Tool (A).
  5. Disconnect the harness connector from the power socket.

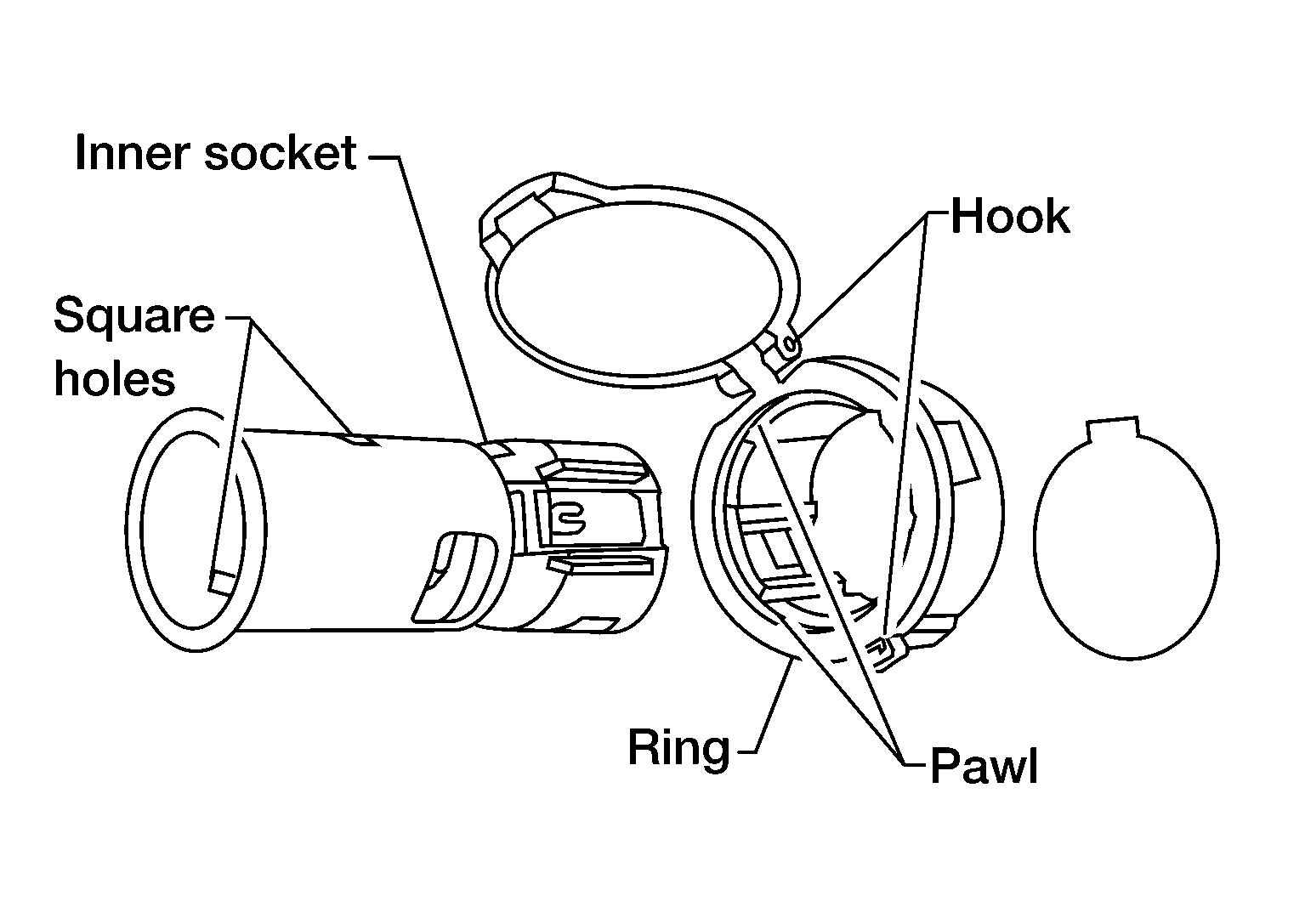

    G04136553Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the ring from the power socket finisher while pressing the pawls.
