Component Inspection

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR)

Remove the fuel level sensor unit and fuel pump (fuel level sensor). Refer to Removal and Installation .

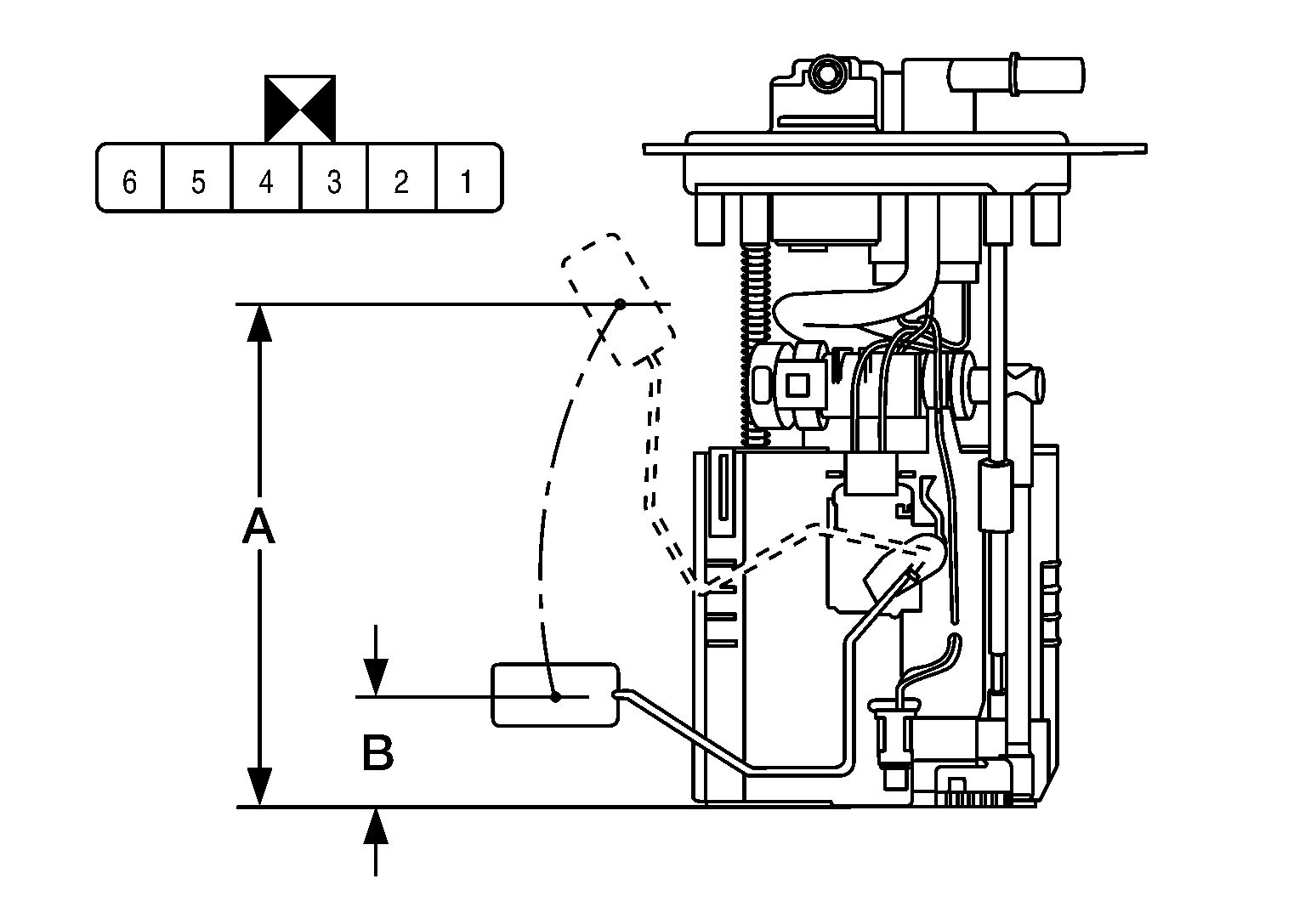

Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor) terminals.

Courtesy of NISSAN NORTH AMERICA, INC.

Fuel level sensor unit and fuel pump (fuel level sensor)		Condition	Resistance (Ω) (Approx.)	Height [mm (in)]
Terminals
2	5	Full ^* (A)	51	148.8 (5.9)
		Empty ^* (B)	283	32.2 (1.3)

*: When float rod is in contact with stopper.

Is the inspection result normal?

YES

Inspection End.

Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to Removal and Installation .
