Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the back door lower finisher. Refer to Removal and Installation .

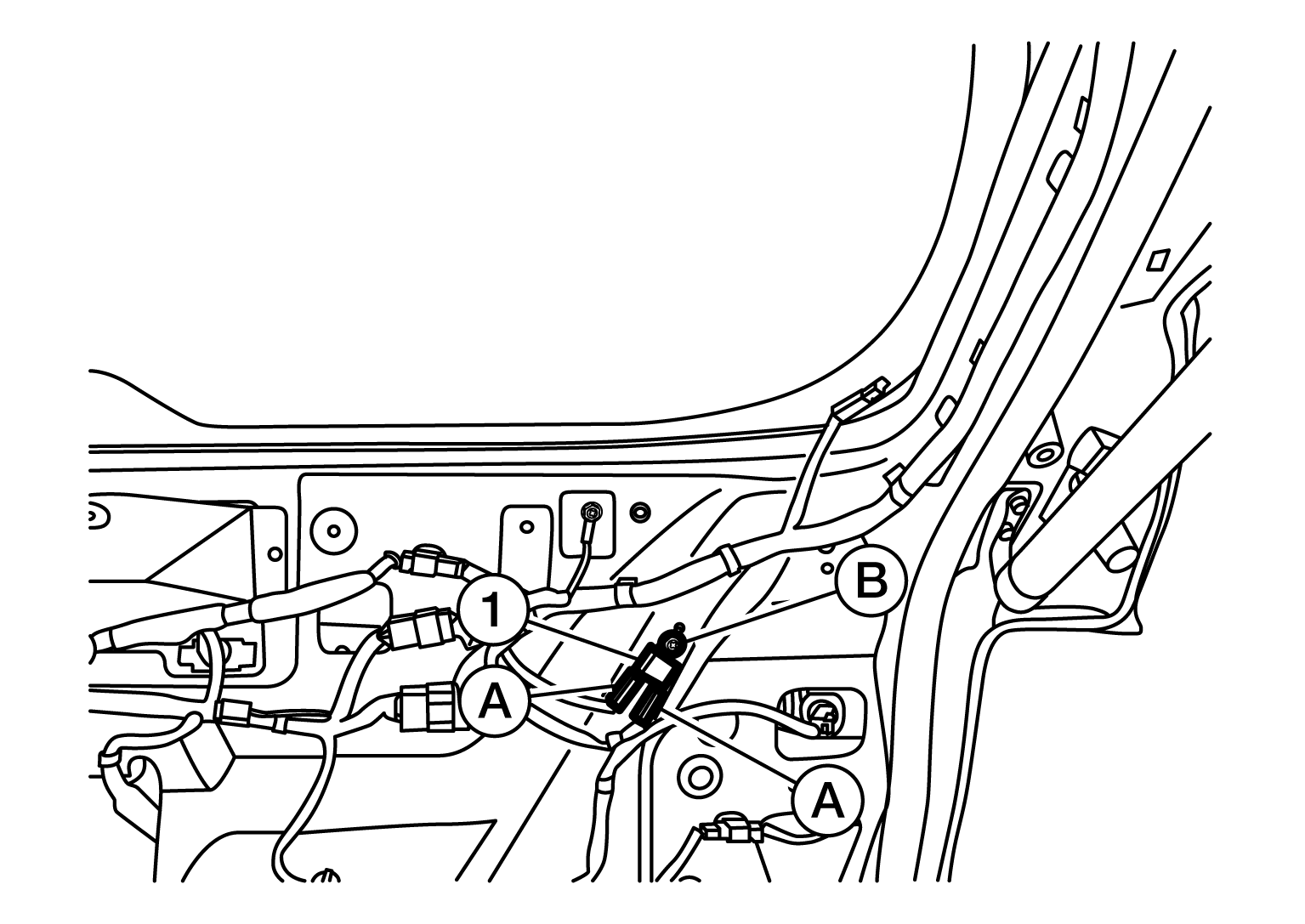

  2. Disconnect the harness connectors (A) from the condenser (1).
    GNSALLIA1189Z-189Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the bolt (B) and the condenser (1).
