Removal and Installation: Installation
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

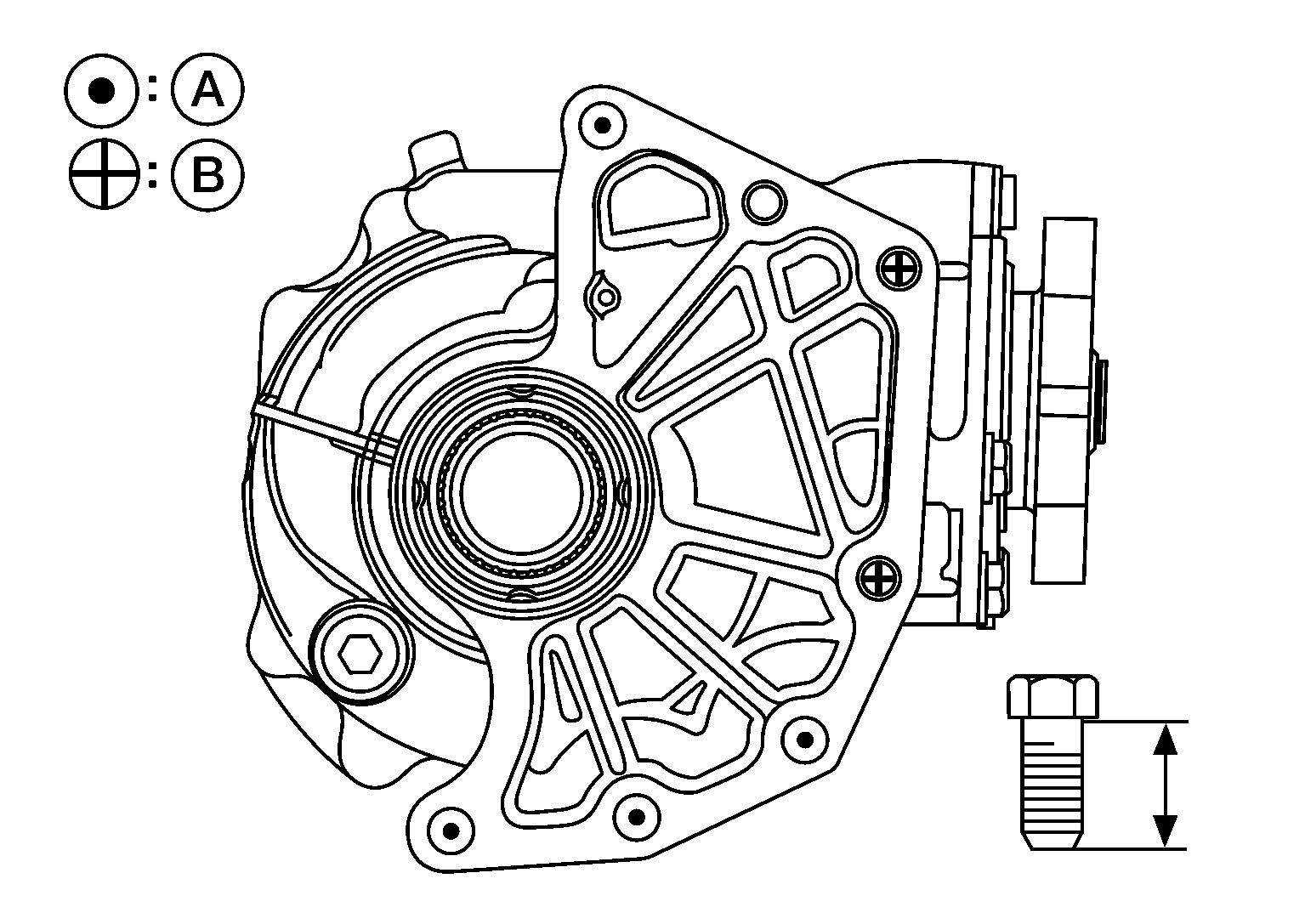

- When installing the transfer to the transaxle, install the bolts following the standard below.
Bolt No.
(A)
(B)
Quantity
4
2
Bolt length "
" mm (in)
40 (1.57)
40 (1.57)
CAUTION:- When installing transfer to transaxle, be careful not to damage oil seal of transaxle.
- Do not reuse differential side oil seal.
- Check transfer oil level and check for transfer oil leaks after installation. Refer to Refilling .
