Ring Gear Shaft: Disassembly

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer cover assembly. Refer to Disassembly .
  2. Remove ring gear bearing outer race (transfer cover side) and ring gear bearing adjusting shim (transfer cover side) from the transfer cover. Refer to Disassembly .
  3. Remove ring gear shaft assembly from the transfer case.
  4. Remove ring gear bearing outer race (transfer case side) and ring gear bearing adjusting shim (transfer case side) from the transfer case. Refer to Disassembly .

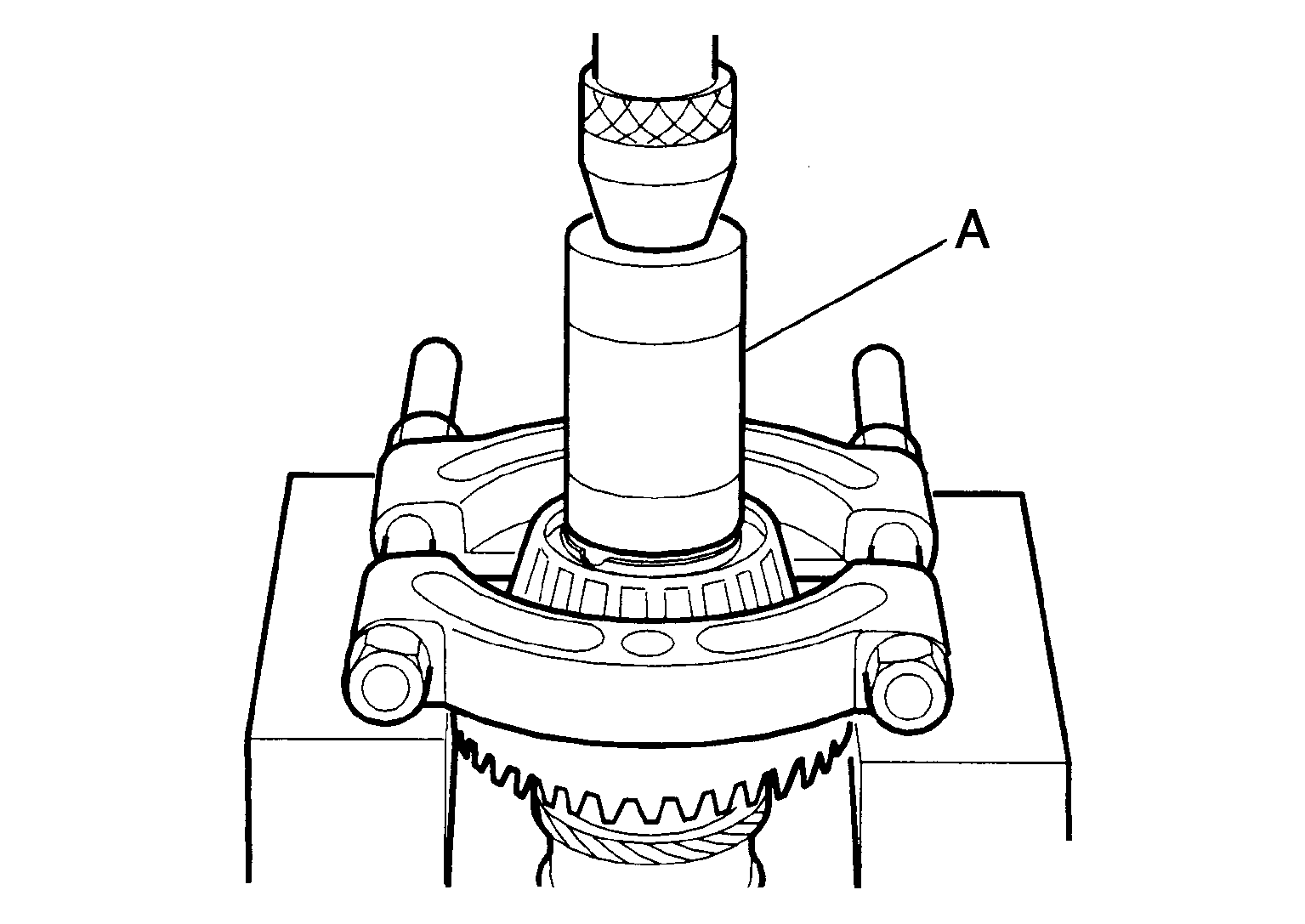

  5. Remove ring gear bearing inner race (transfer cover side) from ring gear shaft with drift (A) (commercial service tool) and bearing separator (commercial service tool).
    GNSJPDIE0030Z-030Courtesy of NISSAN NORTH AMERICA, INC.

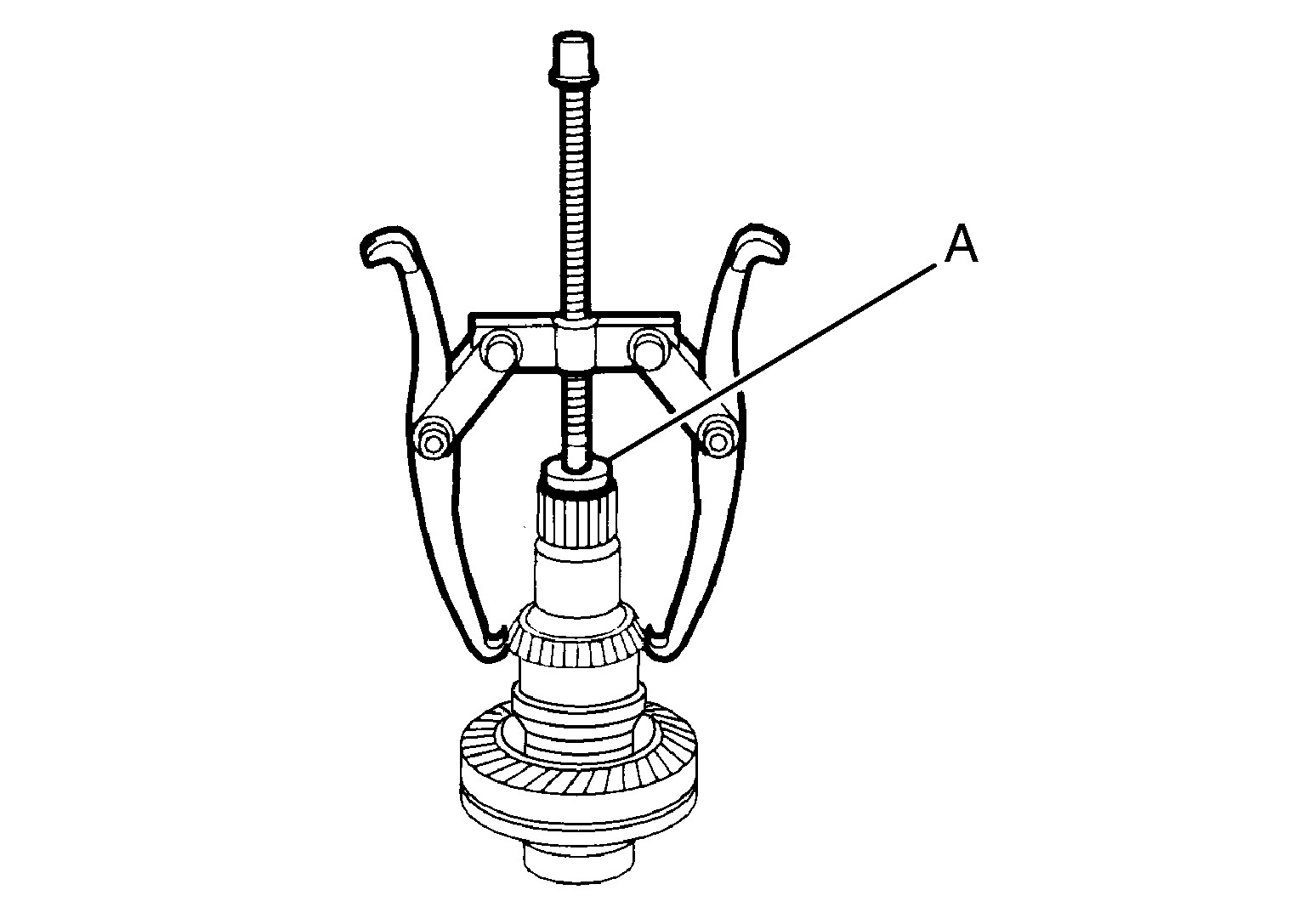

  6. Remove ring gear bearing inner race (transfer case side) from ring gear shaft with the drift (A) [SST: ST33061000 (J-8107-2)] and puller (commercial service tool).
    GNSJPDIE0031Z-031Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the ring gear mounting bolts.
  8. Lightly tap ring gear with a plastic hammer to remove ring gear from the ring gear shaft.
    G04217114Courtesy of NISSAN NORTH AMERICA, INC.

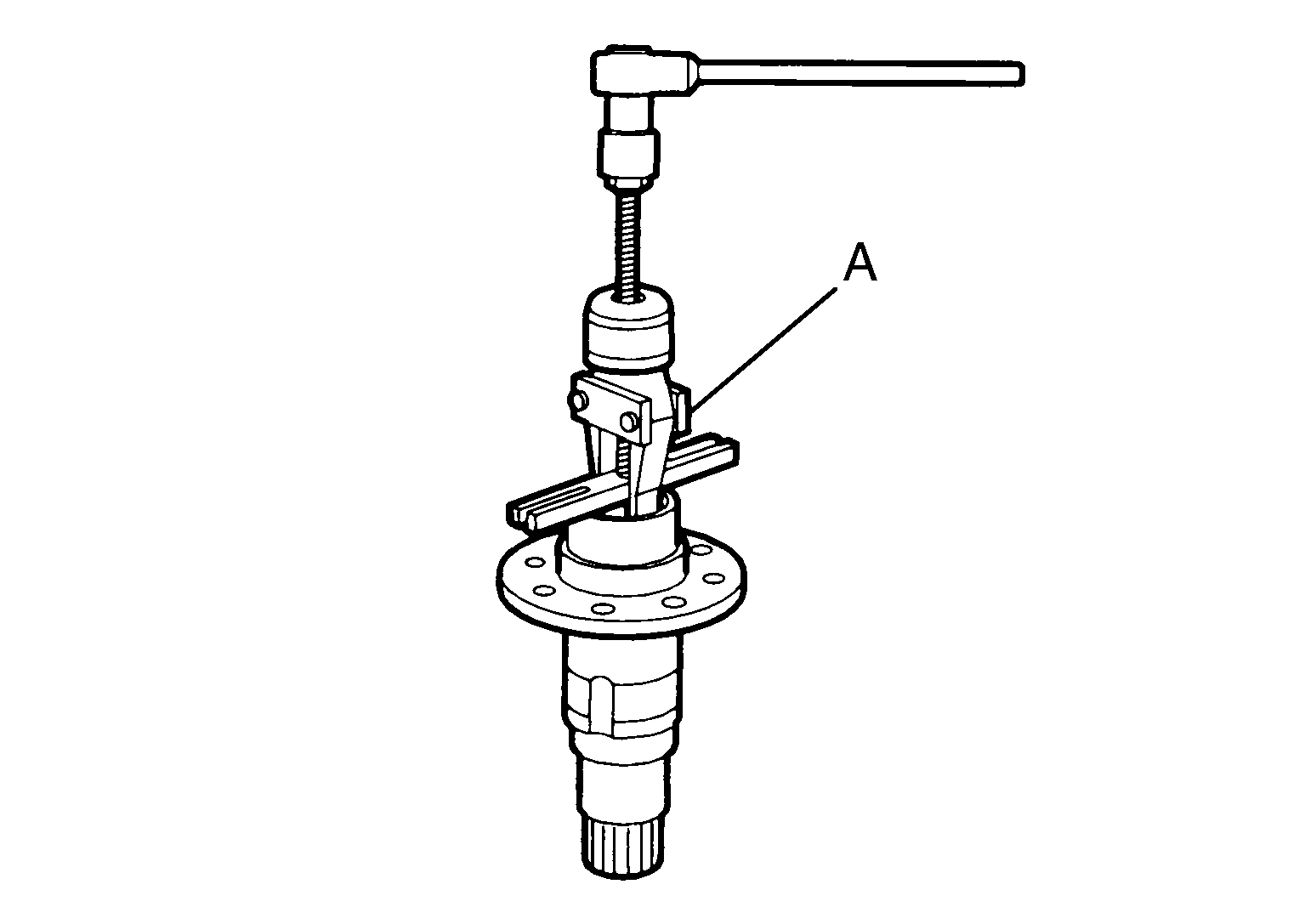

  9. Remove drive shaft oil seal from the ring gear shaft with the puller (A) [SST: KV381054S0 (J-34286)].
    GNSJPDIE0032Z-032Courtesy of NISSAN NORTH AMERICA, INC.
  10. Perform inspection after disassembly. Refer to Inspection .
