Drive Pinion: Adjustment: Backlash

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bolt to the companion flange.

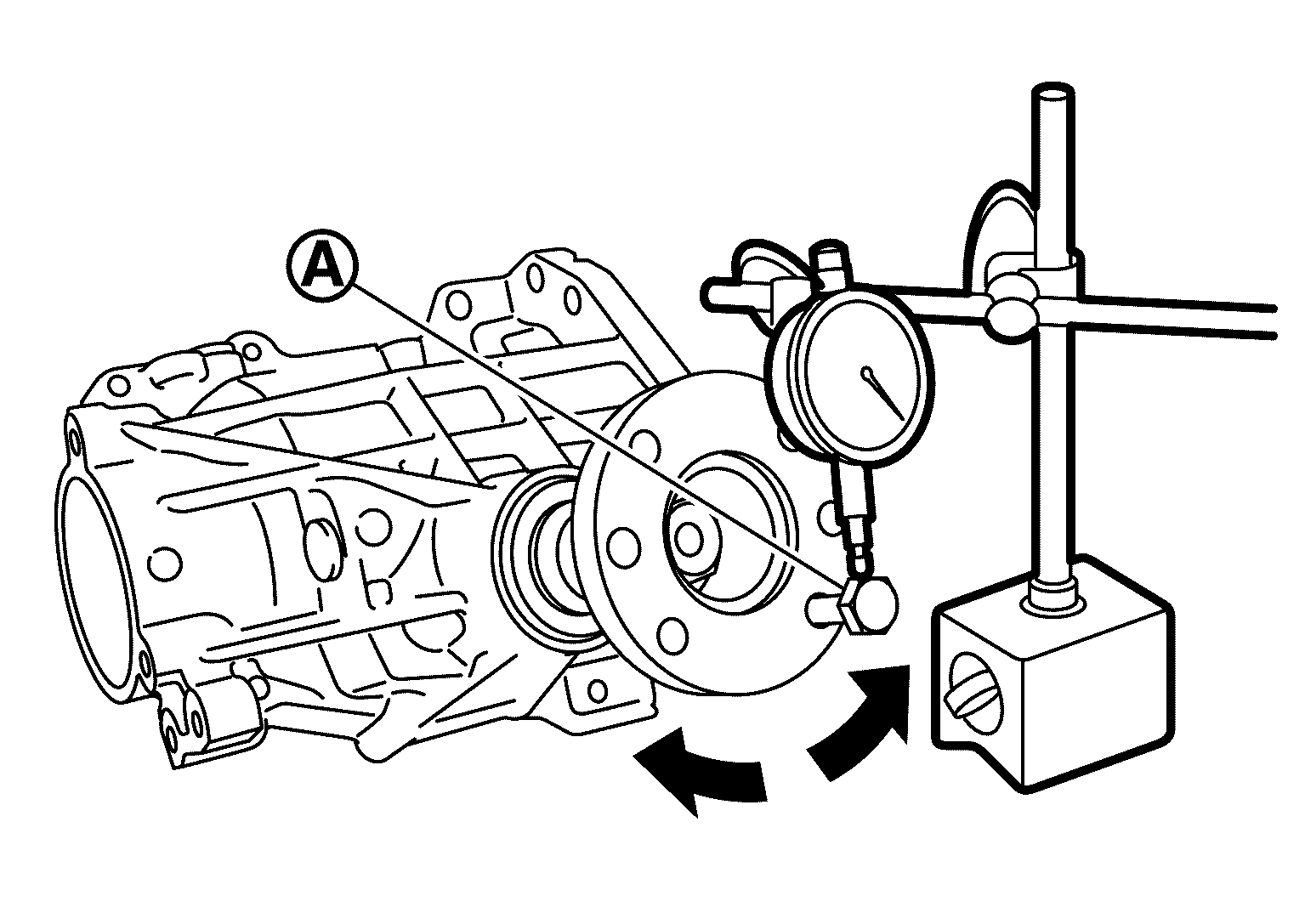

  2. Fit a dial indicator onto the bolt (A).
    GNSJSDIA2501Z-501Courtesy of NISSAN NORTH AMERICA, INC.
  3. Measure the circumference backlash of the companion flange.

    Backlash

    : Refer to Backlash .
    • If outside the standard, disassemble the transfer assembly to check and adjust each part.
