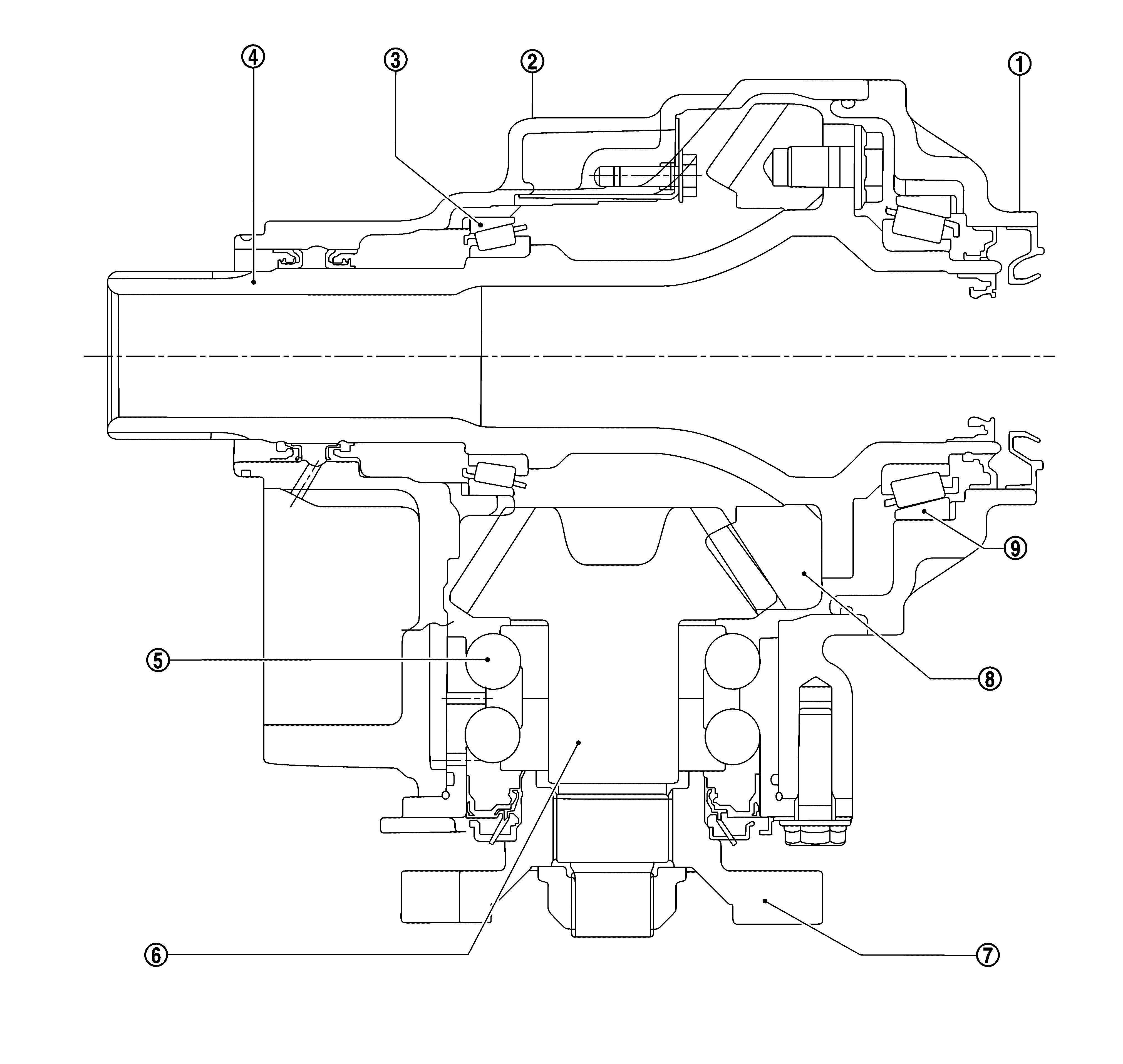

Sectional View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Transfer cover
|
2.
|
Transfer case
|
3.
|
Ring gear bearing (transfer case side)
|
|
4.
|
Ring gear shaft
|
5.
|
Pinion bearing
|
6.
|
Drive pinion
|
|
7.
|
Companion flange
|
8.
|
Ring gear
|
9.
|
Ring gear bearing (transfer cover side)
|
